4-REAR WHELL COMPONENT 23
CHK
ADJ
PROCEDURE:
●Add disc brake liquid
Remove the right side cover assembly.
Cover the parts near the oil cup with a waterproof plastic bag to prevent the brake fluid from dripping onto
the parts surface and causing corrosion.
Disassemble bolt① with "L" cross screwdriver.
Take off oil cup cap②, sealing gasket③.
Add DOT4 braking liquid. Ensure the liquid level is between "UPPER" and "LOWER".
While reassemble, pay attention install sealing gasket③ in correct position and direction.
Step gently on the pedal constantly. Do not ride the motorcycle until the braking force is recovered.
CAUTION:
●Support the motorcycle well on flat ground before checking.
●Check regularly if the braking liquid surface is between "UPPER" and "LOWER".
●If liquid surface is below "LOWER", check the arrester status and confirm if the braking system is leaking.
●If the braking liquid is accidently swallowed, contact intoxication center or hospital immediately. If it gets
into the eye, wash it away with clean water then see the doctor.
●Keep the braking liquid far away from children and pets.
●Flush the oil cup directly with high pressure water is prohibited.
●Mixing water, dust, impurity and liquid of silicic acid or petrol series into the braking liquid is prohibited.
Otherwise, the braking system would be damaged.
●It must be used in time after opening, and it is necessary to seal and prevent moisture during storage; it is
recommended not to exceed one month. Inferior or damp brake oil can cause poor braking system and can
cause brake failure if the impact is severe. Be sure to replace the brake fluid in a repair shop with brake fluid
replacement equipment and technology to avoid air in the brake line.
Fig.7 REAR WHELL
COMPONENT

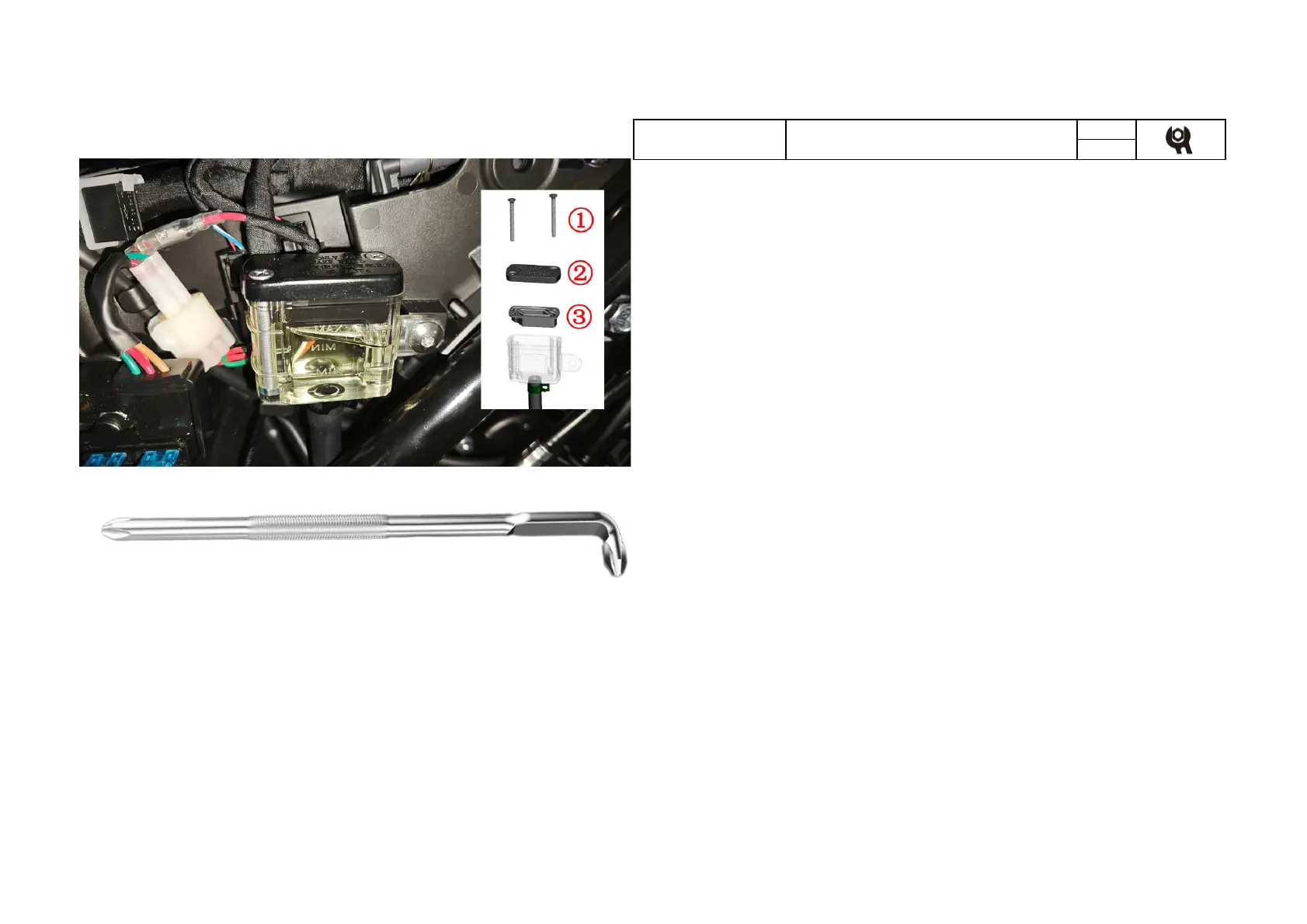

Rear brake main pump adds brake fluid
To Next Page
