1-FRAME&ELECTRONIC COMPONENT 6
CHK
ADJ
NO. PART NO.
1 1184200-004000
2 1250104-006097
GB16674M6×12 (chromed/HH)
1
3 1250201-032093
GB818M5×16 (environmental color)
2
1186200-014000
ZT310T-M EFI ignition coil (pedal with thread) 125/155CC
1186500-007000
KD200 electric jet ignition coil 200CC
5 1251100-101000
Non-standard bolt M6×12 (304 stainless steel)
3
6 1224200-205000
ZT310 electronic cushion lock block
1
7 1274100-058000
ZT310 Electric seat lock
1
1

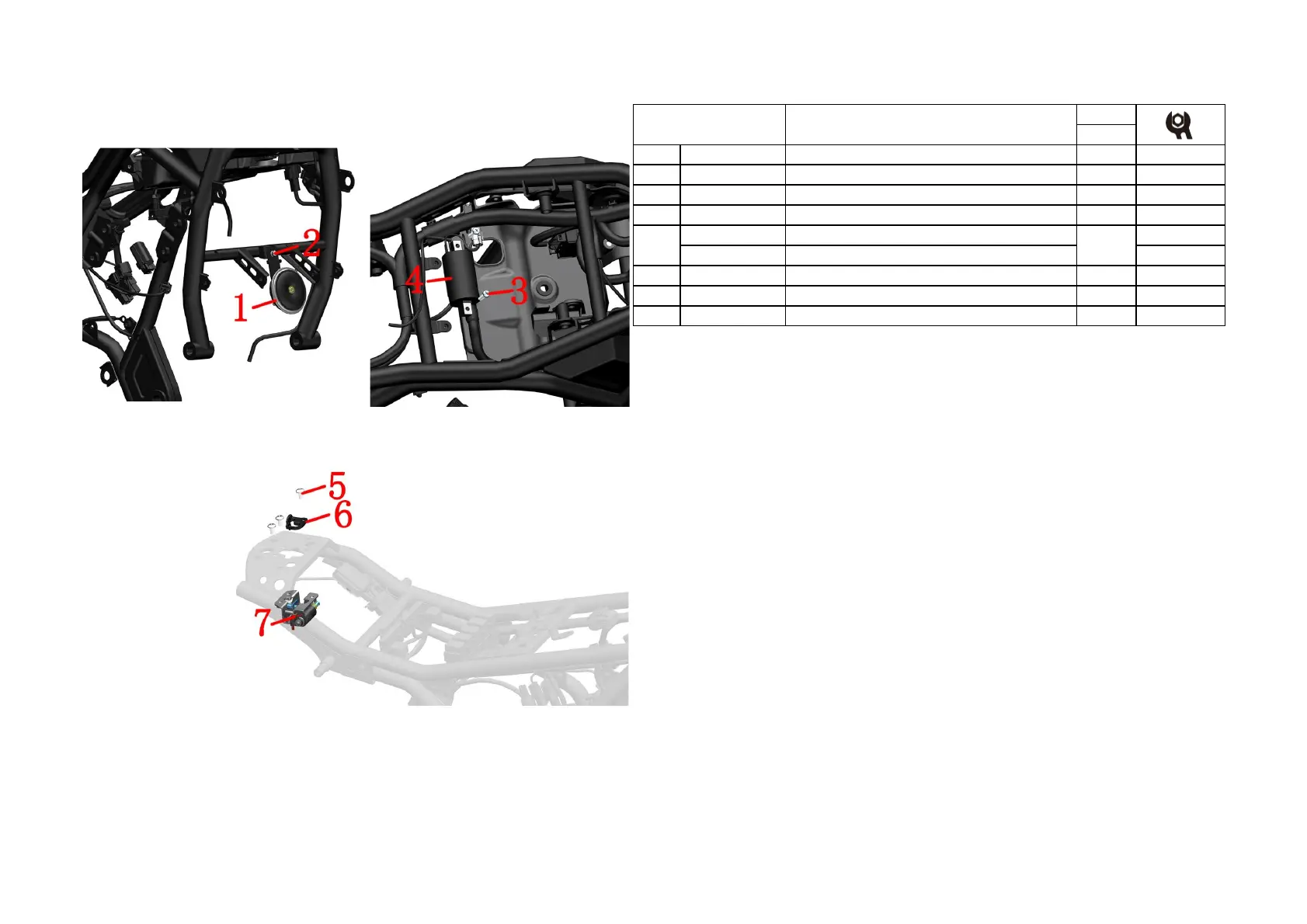

Fig.1 FRAME&ELECTRONIC
COMPONENT
PROCEDURE:
●Horn
Take off the plug of horn, take the horn(⑴ by one hand use 8# sleeve remove bolts ⑵ by another hand,then
take off the horn⑴.
●Ignition coil
Take off the plug of the ignition coil.Remove the crosshead bolts⑶ with a cross screwdriver and remove the
ignition coil⑷.
●Seat lock
Find and take off the plug of the seat lock .Using 4# inner hexagon remove 3pcs bolts⑸,then take off seat
lock⑺ and electric seat lock guide block⑹.
●Main harness Different plug-in methods are different, please unplug all the electrical components
connected tothemain thread according to the actual operation. It needs to use a word screwdriver, forceps,
scissors andothertools to assist.
CAUTION:
●When Take off the plug can't drag any cable.
●In order to avoid the improper contact of the bending electrical parts, please pay attention to the direction
and angle of force when plugging the electrical parts, so as to avoid the improper contact of the bending
electrical parts. No violent operation.
●The location or number of ties may vary from batch to batch, so you need to disassemble them according to
the actual situation, and this manual only lists some of the tie locations.
Electronic parts COMPONENT 1
4
To Next Page
