5-PEDAL COMPONENT 27
CHK
ADJ
NO. PART NO.
2 1274200-346021 ZT310-R Foot Support (M10/dumb black) 1
3 1264100-006000 ZT250-S Pedal circlip 1
4 1274100-012000 ZT250-S Pedal pin 1
5 1264100-004000 ZT250-S front right foot pedal torsional spring 1
6 1276500-037022 ZT310-V Rear left foot applique (dumb black) 1
7 1244200-063000 ZT310-V front pedal rubber cover 1
8 4066500-012022 ZT310-V front pedal press block (matte black) 1
9 1251700-117000 Bushing Φ 7.4 x Φ5.4 x 5.7 4
10 1250205-038000 GB70.2M5×12 (stainless steel) 4
PROCEDURE:
●Right Foot pedal bracket component
The brake pedal, brake switch, etc. can be removed by following the steps in "Front Right Pedal Bracket
Mounting Position Adjustment" and will not be repeated here. The rear brake main pump can be removed
from the bracket by following the steps in "ABS Brake System A-3" in the Front Fork Assembly section, which
will not be repeated here.
●Right Foot pedal component
Remover the torsion spring⑴.
Remove the circlip ⑶,after taking off pin ⑷, separate the pedal bearing ⑵, torsion spring ⑸ and front right
pedal assembly ⑾.
Remove 4 pieces bolts ⑽ by 3# inner hexagon, and take off 4 bushings ⑼.
Take off the pedal pressure block ⑻.
Take off the pedal rubber sleeve⑺ from the pedal⑹.
CAUTION:
●Support the motorcycle properly while disassembling in case it falls down.
1
1
KD200-C brake pedal spring(environmental color Zinc)
ZT310-V front right foot pedal assembly (dumb
black/MES)

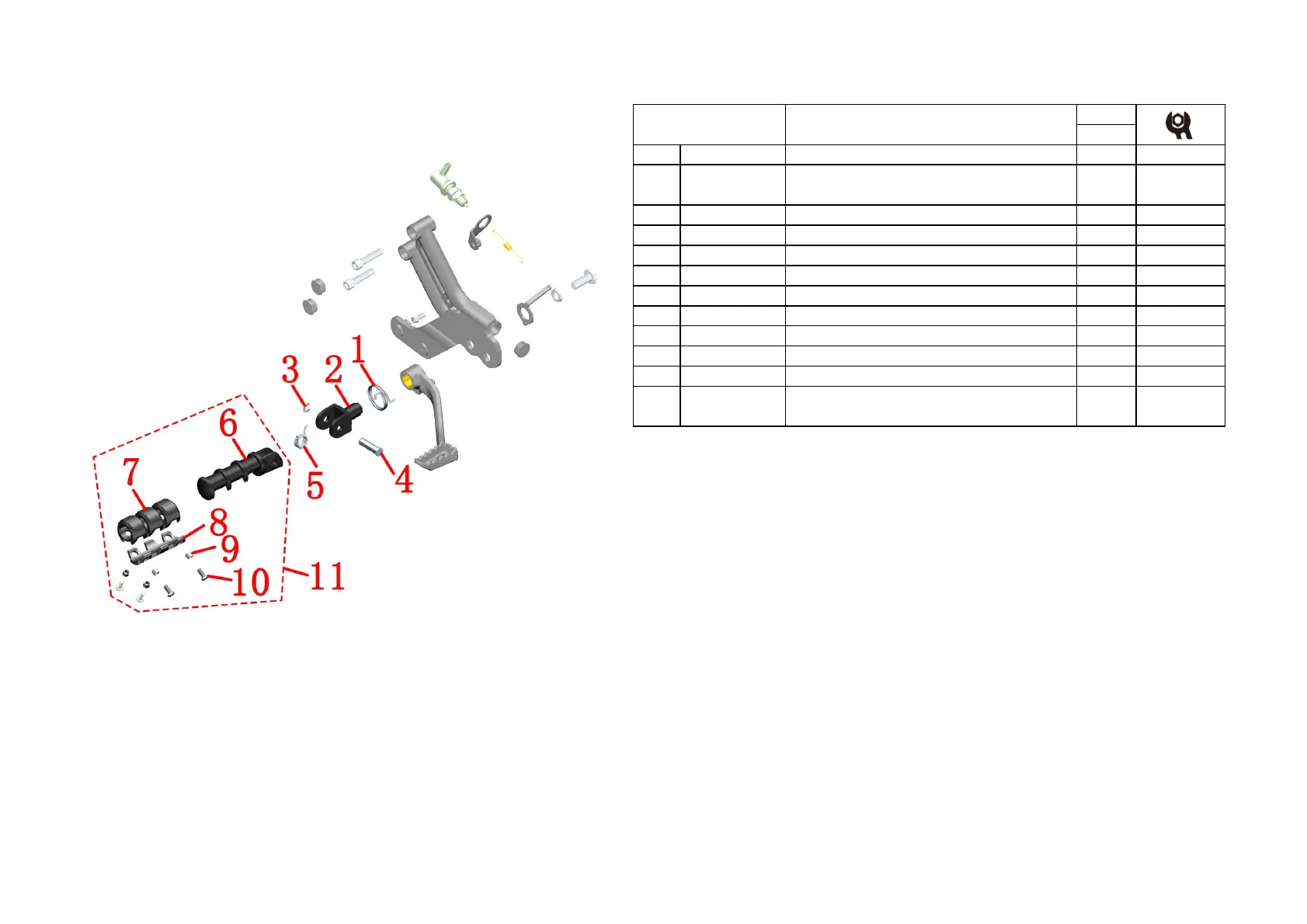

Fig.4 FOOT PEDAL
COMPONENT
Right footrest component
1
11
1271200-234000
4066500-009022
