7-FRONT FORK COMPONENT 44
CHK
ADJ
NO. PART NO.
1 1250205-031091 GB70.1M6×30(stainless steel) 2
2 1184300-065000
ZT350 left auxiliary handle switch (matte black -500/no WD)
1
3
1244100-098000 Rearview mirror mounting hole rubber plug(matte)
1
4
1184200-184000
ZT310-V1 Left handle switch 1
5
1244100-041000
ZT250-R left hand rubber sleeve 1
6 1190100-517000 KD200-C left rearview mirror 1
7
1276500-020022 KD200-C rearview mirror mounting head
1
8
1250205-128000
GB70.1M6×60 (stainless steel) 1
9 1251100-198000
Non-standard hexagon socket bolt M6×13-φ8×20 (env
1
10 1134200-059021
ZT310-V clutch rocker seat assembly
1
11 1184200-170000 ZT310-V clutch switch 1
12 1250201-039000
GB818 cross recessed pan head screw M4×12(color Zin
1
13 1251300-073000
GB/T6185 hexagonal nylon lock nut M6 (environmenta
1
14 1136500-003051 KD200-C left handle rocker arm 1
PROCEDURE:
●Left rear view mirror, left switch,hand guard
Remove the clutch line by referring to the "Replace Clutch Line" procedure. Remove the ,part⑺, left rear
view mirror⑹,left switch⑷by referring to the steps in "Right Handle Assembly" and "Add Brake Fluid,
Adjusting Rocker Arm".
Using 5# inner hexagon socket remover 2pcs bolts⑴ take off the generation Left handlebar switch⑵ and the
left hand arm assembly⑽. Press the snap indicated by arrow④,then take off the plug of the generation left
handlebar switch⑵,press the snap indicated by arrow⑤,then take off the plug of the left handlebar switch⑷.
●Left hand rubber sleeve
Use a blow gun to blow the left hand grip② and the direction between the tubes.at the same time,move the
left hand rubber sleeve out and remove it.Pull out the rubber plug ⑶.
●Replace the left hand rocker arm and clutch switch
Ffix the bolt⑼ with a 5# inner hexagon socket then remove the nut⒀. Remove the bolt and remove the left-
hand rocker arm⒁ and the rocker arm assembly⑽.
Rotate the adjusting nut③ to adjust the distance between the rocker arm and the left handle to adjust the
rubber sleeve to adapt to different driver's hand feeling.
First remove the clutch switch plug, then use a cross screwdriver to remove the bolt ⑿, remove the clutch
switch⑾.
CAUTION:
●Note the triangle symbol on the rocker arm assembly and the half cover seam alignment switch.

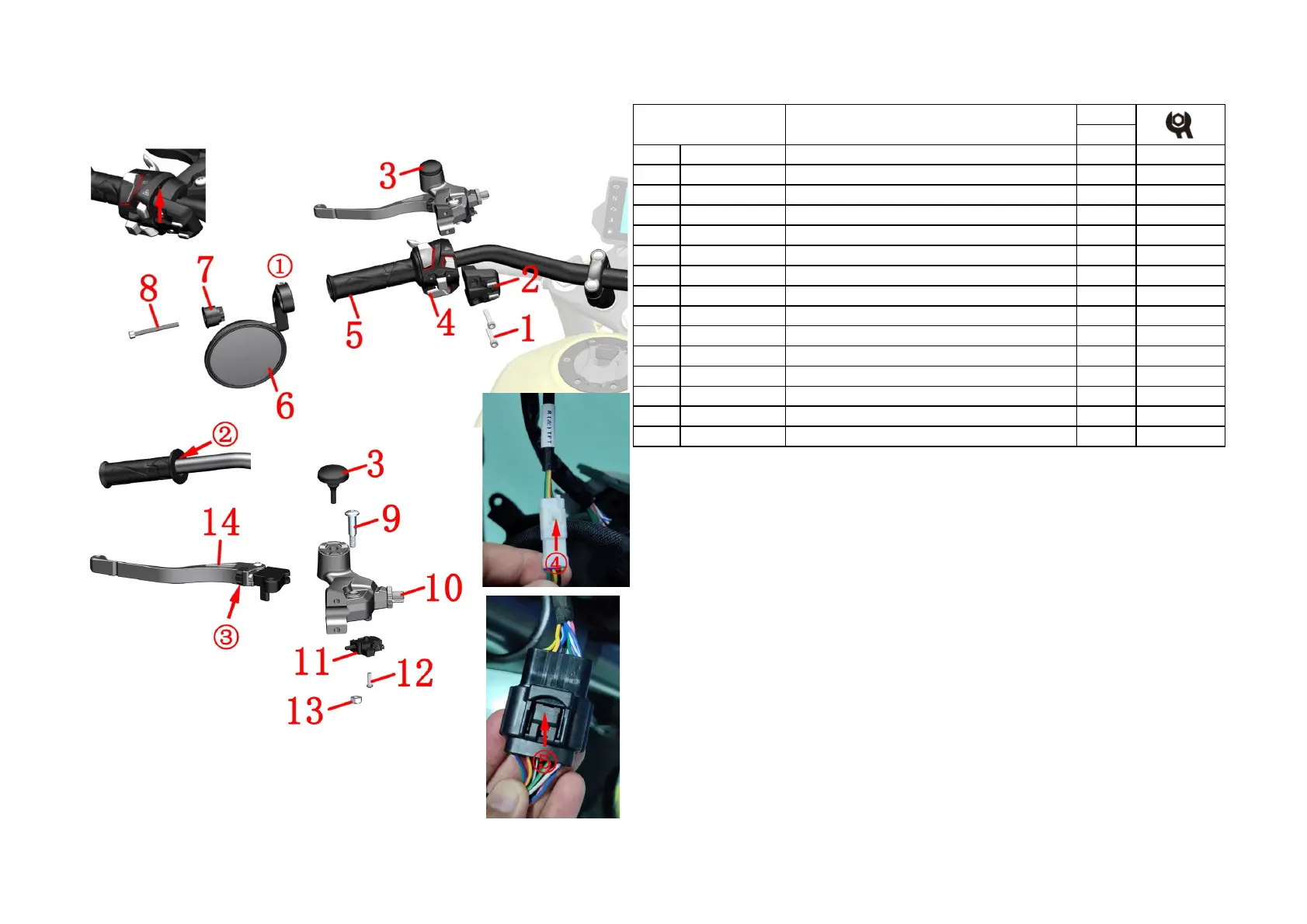

Fig.10 FRONT FORK
COMPONENT
Left hand component
