7-FRONT FORK COMPONENT 41
CHK
ADJ
NO. PART NO.
1 1100100-704000
－
U front disk brake piece(SF627)
1 after-sales

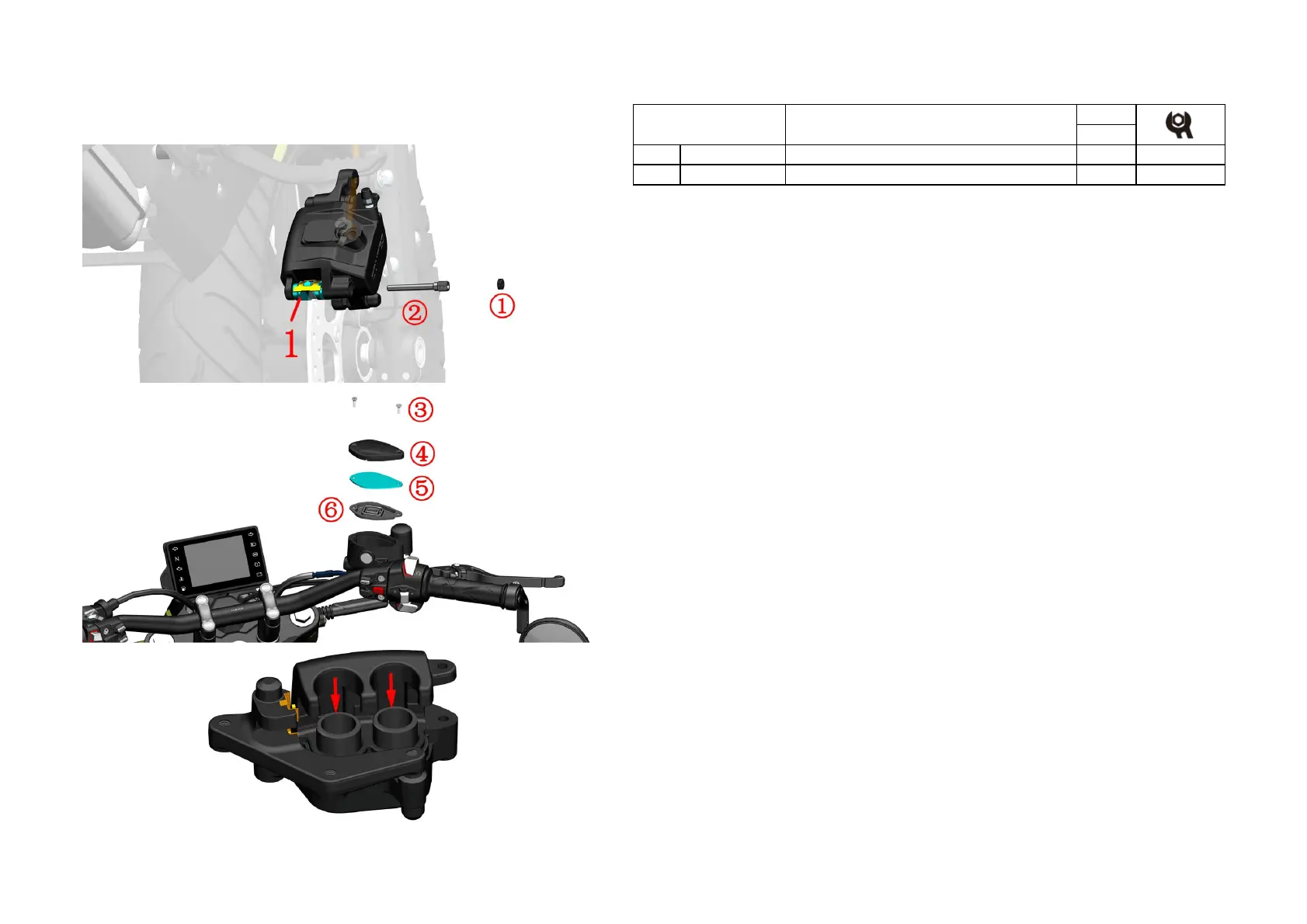

PROCEDURE:
●Replace the front brake pad
Use a screwdriver to remove the nut①.
Remove pin ② with a 5# inner hexagon socket.
Remove the brake pad ⑴.
Clean out foreign matter such as dust on the outer edge of the piston.
Use a Phillips screwdriver to remove the bolt ③ on the front brake main pump assembly, remove the top
cover ④, cover plate ⑤, and seal gasket ⑥.
Push the piston in the direction of the arrow.
Restore the front disc brake main pump assembly, it must be accurately assembled in place.
Put a new brake pad, be sure to place the brake pad close to the card slot, as shown on the left.
Lock the pin ② with a 5# inner hexagon socket.
Use a flathead screwdriver to lock the nut①.
Repeatedly holding the brake handle until braking force is restored.
CAUTION:
●The motorcycle support should be fixed before operation.
●Check the brake discs and brake discs regularly for wear. Regularly check if the brake fluid level in the
observation window of the front disc brake master pump is 3/4.
●It is strictly prohibited to disassemble the oil pipe bolts and gas discharge nozzle bolts when replacing the
brake pads to prevent air from entering the pipeline and causing brake failure.
●Do not shake the front after disassembling the front brake oil cup cover to prevent the brake fluid from
overflowing.
●After replacing the brake pads, the new brake pads should be operated for about 300 km to fully run in
order to achieve the best braking effect. Take care to leave enough braking distance during running-in.
●It is recommended to replace brake pads in pairs with qualified maintenance units.
Fig.7 FRONT FORK
COMPONENT
Replace the front brake pads
