ABB ACS180 User Manual

Parameters 211
31.26 Stall speed limit Stall speed limit in rpm. See parameter 31.24 Stall
function.
150.00 rpm
0.00…10000.00 rpm Stall speed limit. See par.
46.01
31.27 Stall frequency limit Stall frequency limit. See parameter 31.24 Stall function.
Note: Setting the limit below 10 Hz is not recommended.
15.00 Hz
0.00…1000.00 Hz Stall frequency limit. See par.
46.02
31.28 Stall time Stall time. See parameter 31.24 Stall function.20 s
0…3600 s Stall time. -
31.30 Overspeed trip margin Defines, together with 30.11 Minimum speed and 30.12
Maximum speed, the maximum allowed speed of the
motor (overspeed protection). If the speed (24.02 Used
speed feedback) exceeds the speed limit defined by
parameter 30.11 or 30.12 by more than the value of this
parameter, the drive trips on the 7310 Overspeed fault.
WARNING! This function only supervises the
speed in vector motor control mode. The function
is not effective in scalar motor control mode.
Example: If the maximum speed is 1420 rpm and speed
trip margin is 300 rpm, the drive trips at 1720 rpm.
500.00 rpm
0.00…10000.00 rpm Overspeed trip margin. See par.
46.01

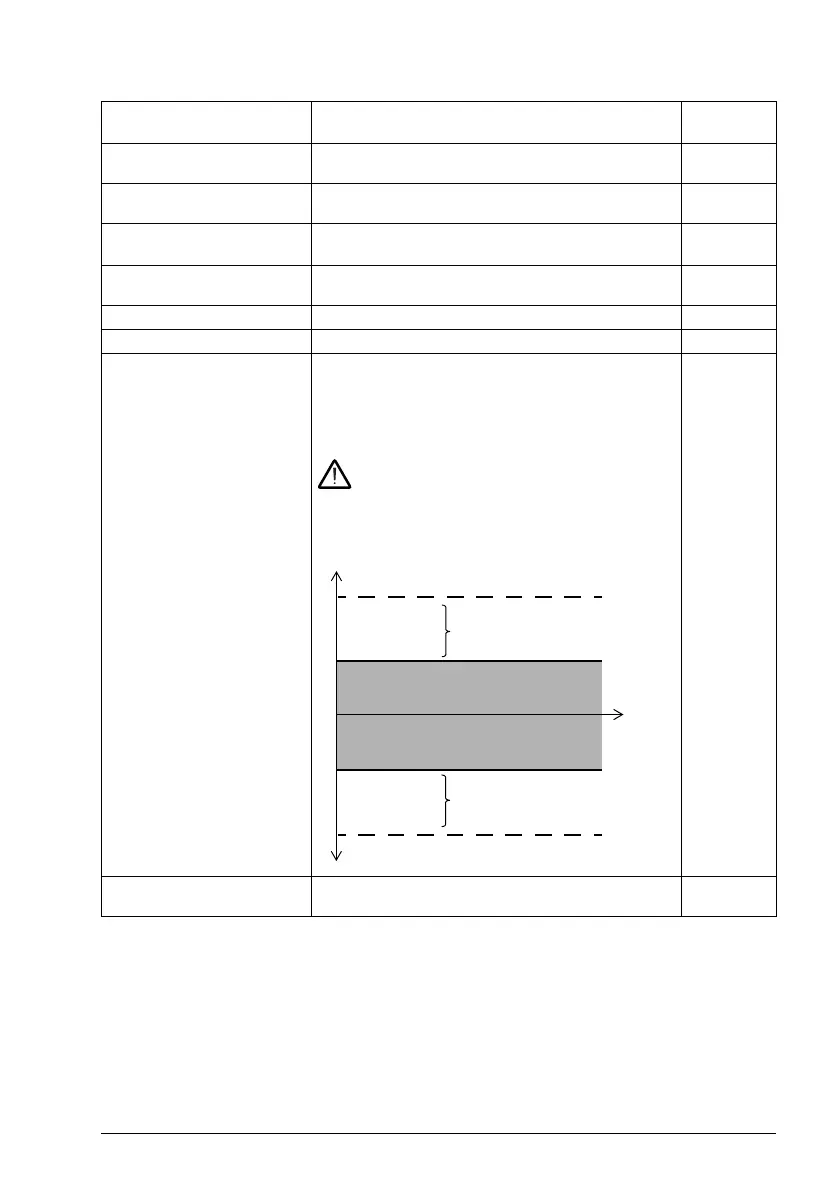

No. Name/Value Description Default
FbEq 16
Speed (24.02)
Time
30.12
30.11
31.30
Overspeed trip level
Overspeed trip level
31.30
0
ACS180 FW.book Page 211 Tuesday, March 9, 2021 2:25 PM
