ABB HVC 200 - Power cabinet, outside

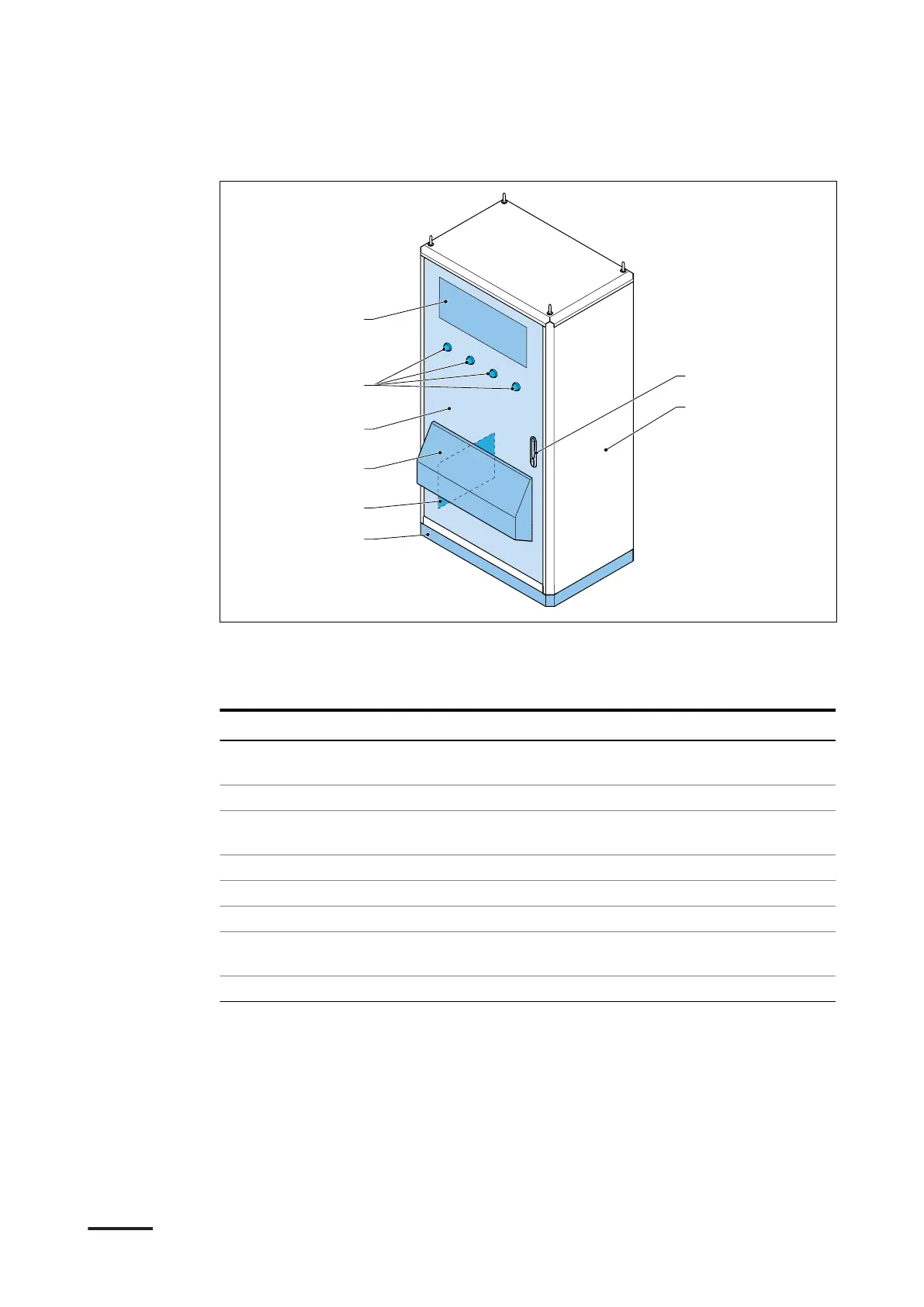

3.3.2 Power cabinet, outside
A
B
C
D
F
G
H
E
A Air outlet
B LED indicators
C Door
D Air inlet with muffler
E Type plate
F Plinth cover
G Enclosure
H Lockable door handle
Part Function
Air inlet and outlet To let the air in and out. The airflow prevents overheat-
ing of the parts on the inside of the EVSE
LED indicators To indicate the status of the EVSE outlets
Door To give authorized personnel access to the inside of
the cabinet
Type plate To show the identification data of the power cabinet
Muffler To decrease the noise level
Plinth cover To cover the bottom part of the EVSE
Enclosure To reduce the accessibility of unqualified persons to
the inside of the cabinet
Lockable door handle To open and lock the door
Description
