Procedure

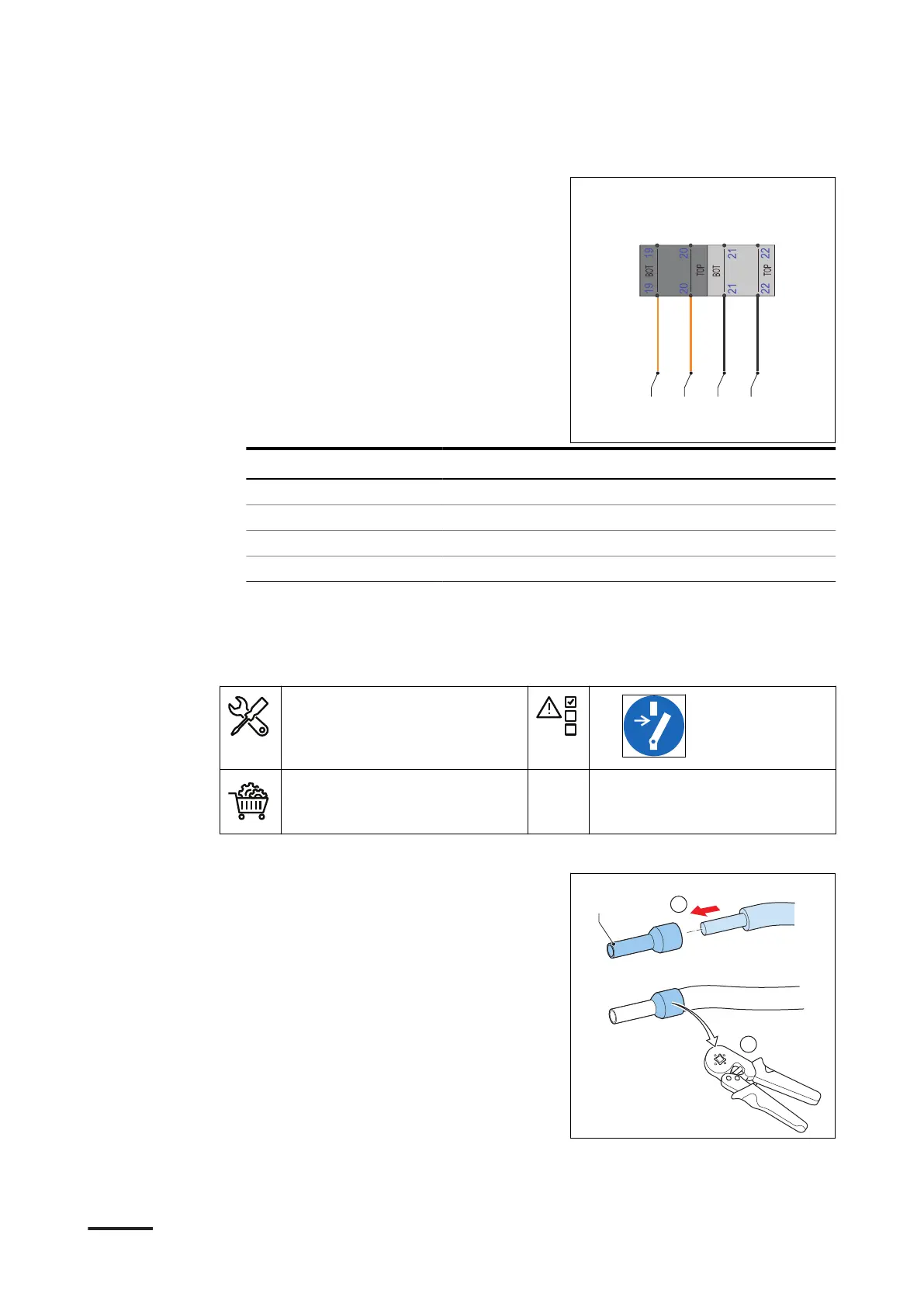

1. Prepare ferrules for the wires that
are mentioned below. Refer to section
6.3.16.
2. Remove the jumpers from the X9
terminals.
3. Connect the below listed wires from
the charge post. Use the illustration as
a reference:
Wire from charge post Connect to terminal
(A) EMO1 X9-19
(B) EMO2 X9-20
(C) EMO1 GND X9-21
(D) EMO2 GND X9-22
6.3.16 Install a ferrule on a wire
Preliminary requirements
• Wire cutter
• Wire stripper pliers
• Crimp plier
•
• Ferrule
Procedure
1. Make sure that the diameter of the
ferrule is correct. The ferrule must
be compatible with the wire. Obey
the technical specifications set by the
manufacturer. Refer to section 12.13.
2. Strip the insulation from the wire. The
stripped length must be the same as
the length of the cavity of the ferrule.
For the specifications, refer to section
12.13.
3. Put the ferrule in the crimp plier.
4. Insert the wire into the cavity of the
ferrule.
5. Install the ferrule on the wire. Use the
crimp plier.
-X9
A B C D
A
1
2
Installation
56 HVC 200/300/360-EN | 002
