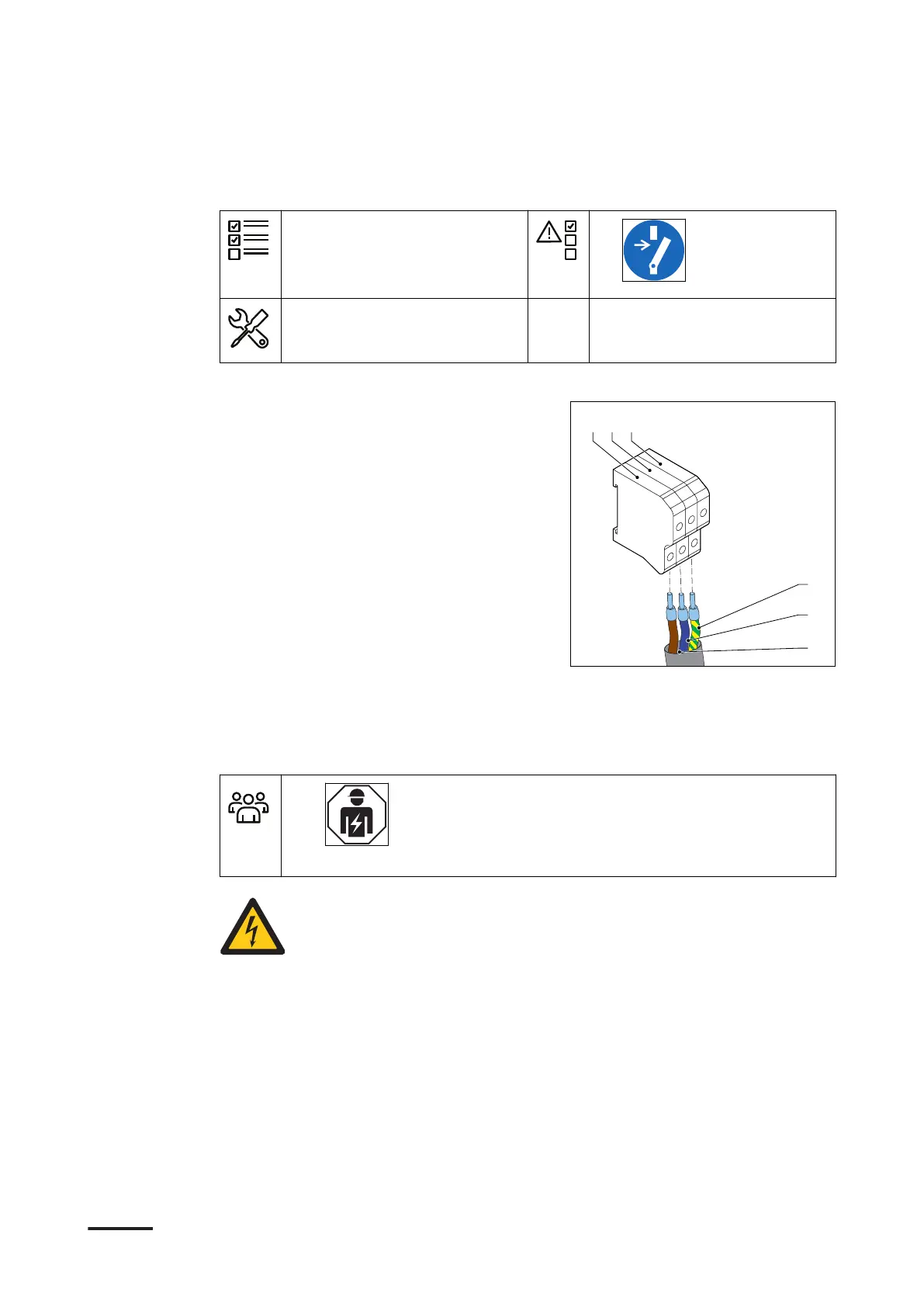

7.1.4 Remove the 120 V cable for the precommissioning mode
Preliminary requirements
• Only do this procedure
when a different
procedure refers to this
procedure.
•
• Torque screwdriver, cross
Procedure

1. Loosen the screws of the terminals (D,
E, F) of terminal block X-1.
2. Disconnect the wires (A, B, C) from the
terminals.
3. Tighten the screws.
4. Disconnect the 120 V AC cable from
the external power supply.
5. Fully remove the cable from the
electrical system.
7.2 Prepare for commissioning
Preliminary requirements
•
Qualified installation engineer
Danger:
Hazardous voltage
• Do not commission the EVSE. Only a service engineer of the
manufacturer is qualified to commission the EVSE.
C
A
B
FE
D
Commissioning
62 HVC 200/300/360-EN | 002
