ABB HVC 200 User Manual

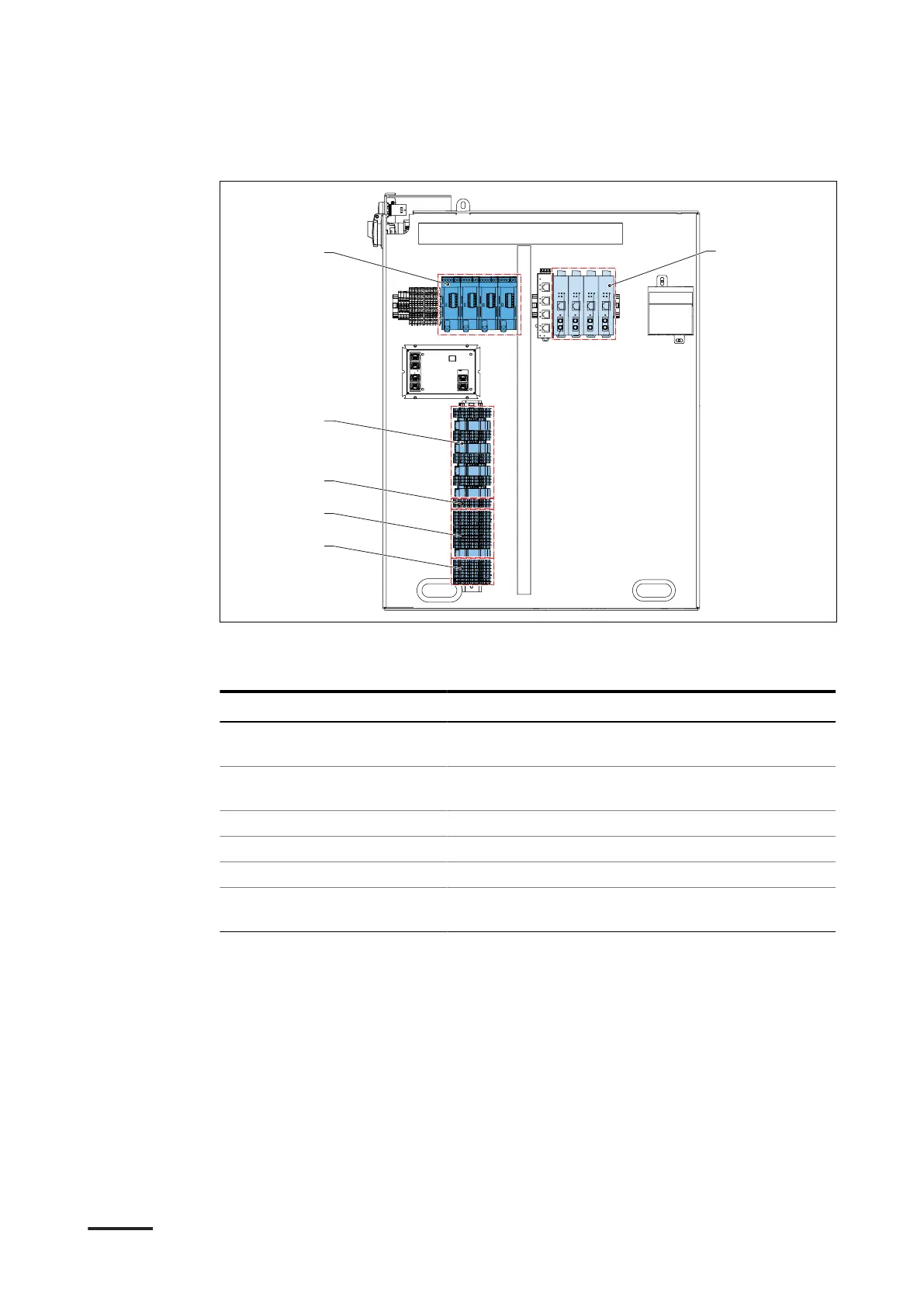

3.3.5 DC plate
A
B
F
E
D
C
A Terminals D1-D4
B Terminals D6-D9
C Terminal X10
D Terminals X9
E Terminals X8
F Terminals X4-X7
Part Function
Terminals D1-D4 CAN-to-fiber converters to connect the optical fiber
cables
Terminals D6-D9 Ethernet-to-fiber converters to connect the optical
fiber cables
Terminal X10 To connect the LED cables
Terminal X9 To connect the RCD and EMO cables
Terminal X8 To connect the EVSS cables
Terminals X4-X7 To connect the interlock, DC guard, and ethernet
cables
Description
HVC 200/300/360-EN | 002 25
