ABB HVC 200 User Manual

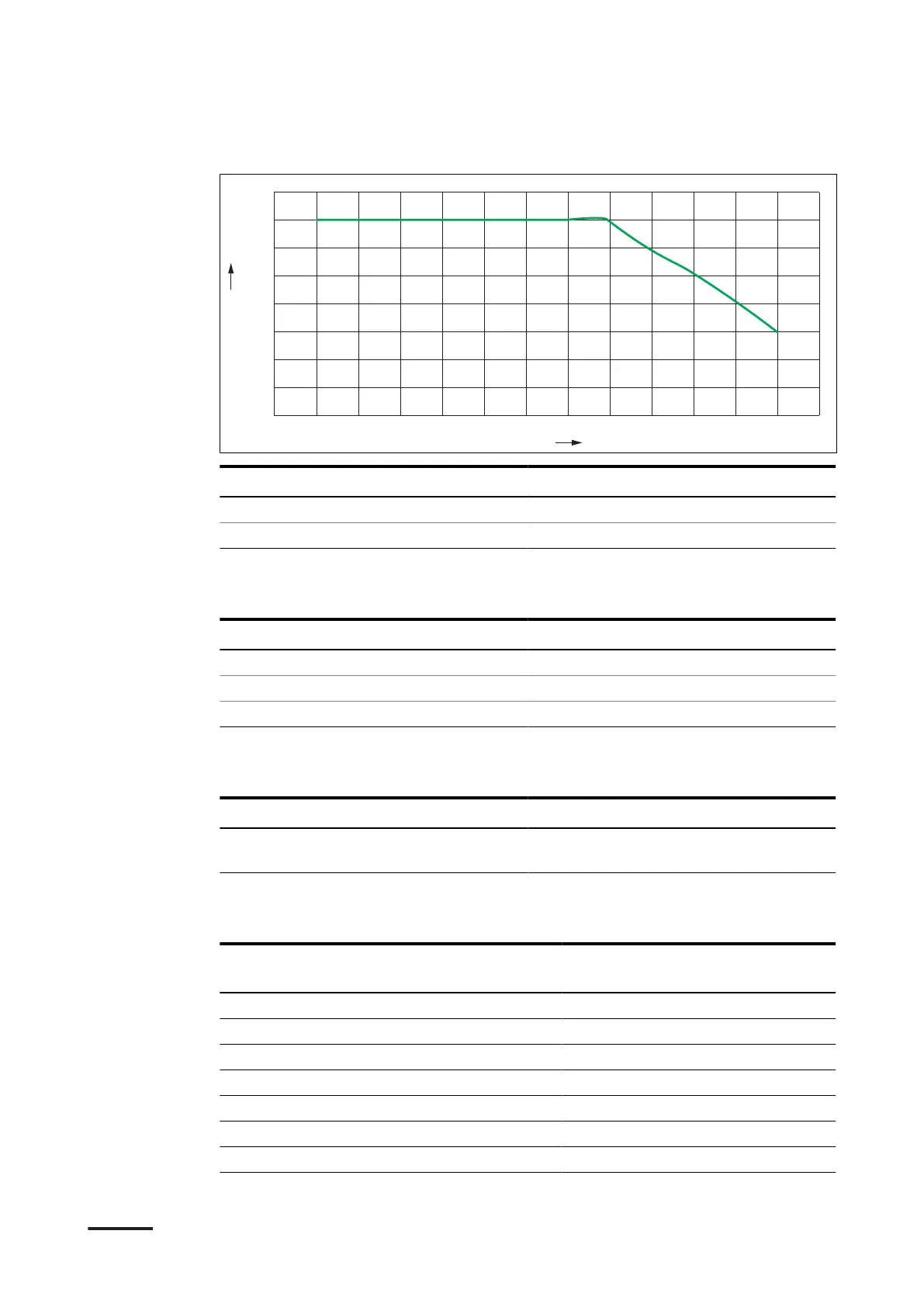

HVC 360
0
300
400
500
600
700
800
900
1000
50
100 150 200 250 300 350 400 450 500 550 600 650
V
I
Item Description
V V
out
[V]
I I
out
[A]
12.16 Protection for the AC auxiliary
Parameter Specification
Circuit breaker (CB) - HVC 200 350 A
Circuit breaker (CB) - HVC 300 500 A
Circuit breaker (CB) - HVC 360 600 A
12.17 Power consumption specifications
Parameter Specification
Standby power consumption for every
variant of the power cabinet
60 W
12.18 Terminal part numbers
Type ABB part number Used in section Color on the
drawing
ZS10 ZEB.00244 X2, X3 Grey
ZS10-BL ZEB.00245 X2, X3 Blue
ZS10-PE ZEB.00246 X2, X3 Green/Yellow
ZS6-D2 ZEB.00465 X4, X5, X6, X7 Dark grey
ZS4-D2 ZEB.00200 X4, X5, X6, X7 Grey
ZS4-PE ZEB.00185 X4, X5, X6, X7 Green/Yellow
IE-XM-RJ45 / RJ45 R ZEB.00389 X4, X5, X6, X7 Grey
Technical data
90 HVC 200/300/360-EN | 002
