Procedure
1. Guide the cables to the terminals.
2. Connect these optical fiber cables for
the outlet 1:
• Output cable (A) to the output
terminal D1-TD (B)
• Input cable (C) to the input
terminal D1-RD (D)
3. Repeat step 2 for the other outlets to
these terminals:
• For outlet 2: connect the cables to
D2 (E)
• For outlet 3: connect the cables to
D3 (F)
• For outlet 4: connect the cables to D4 (G)
6.3.12 Installation procedure for the the long distance kit (optional)
Preliminary requirements
•
Procedure
1. Open the DC door. Refer to section 10.7.
2. Connect the optical fiber cable that replaces the ethernet cable of the outlet.
Refer to section 6.3.10.
3. Disconnect the ethernet cable from the ethernet-to-fiber converter. Refer to
section 6.3.13.
4. Connect the ethernet cable to the connector. Refer to section 6.3.14.
5. Repeat steps 2 thru 4 for each long distance kit that is installed.
6. Close the DC door. Refer to section 10.8.

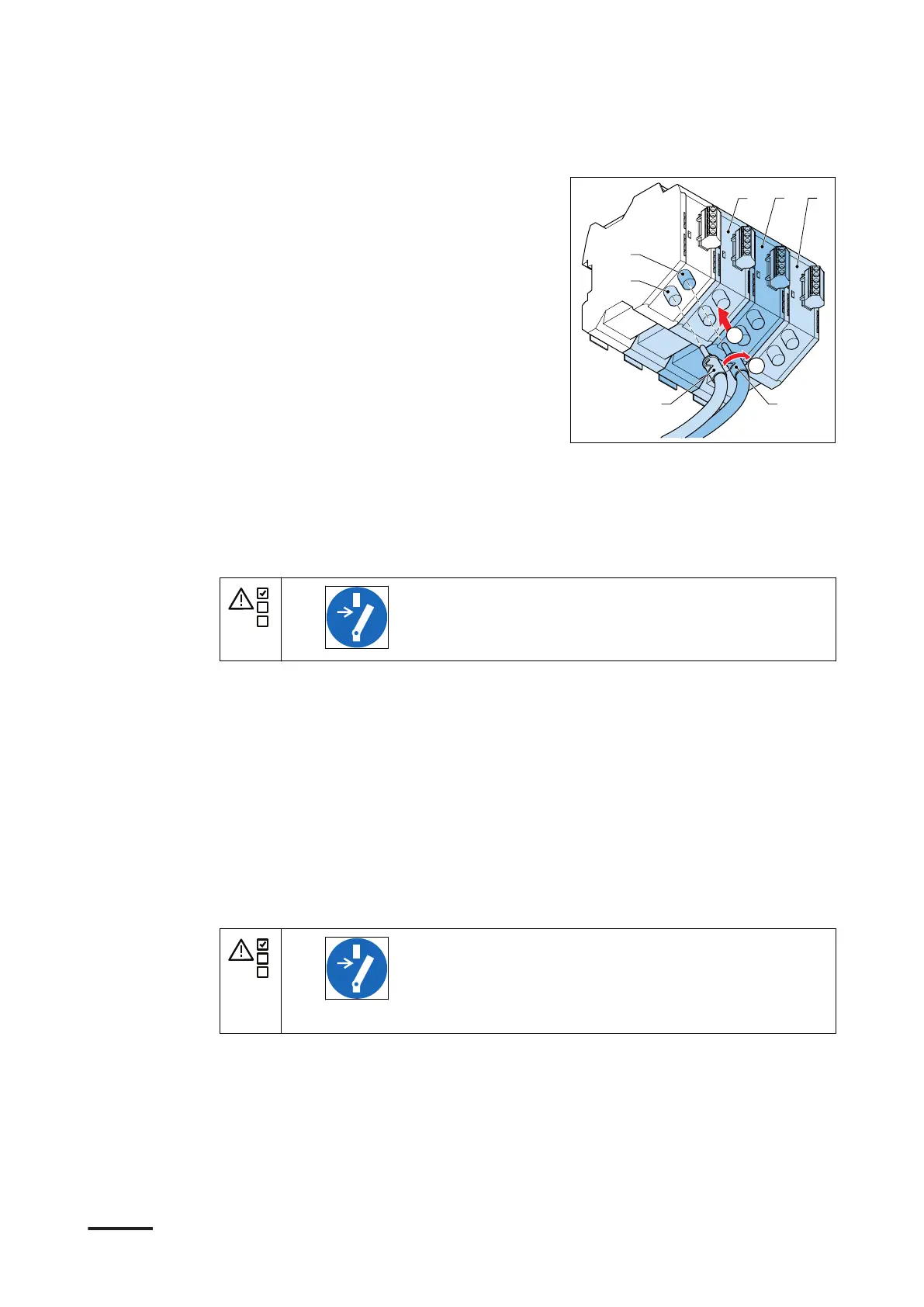

6.3.13 Disconnect the ethernet cable from the converter
Preliminary requirements
•
• Only do this procedure if another procedure refers to it.
Installation
HVC 200/300/360-EN | 002 53
