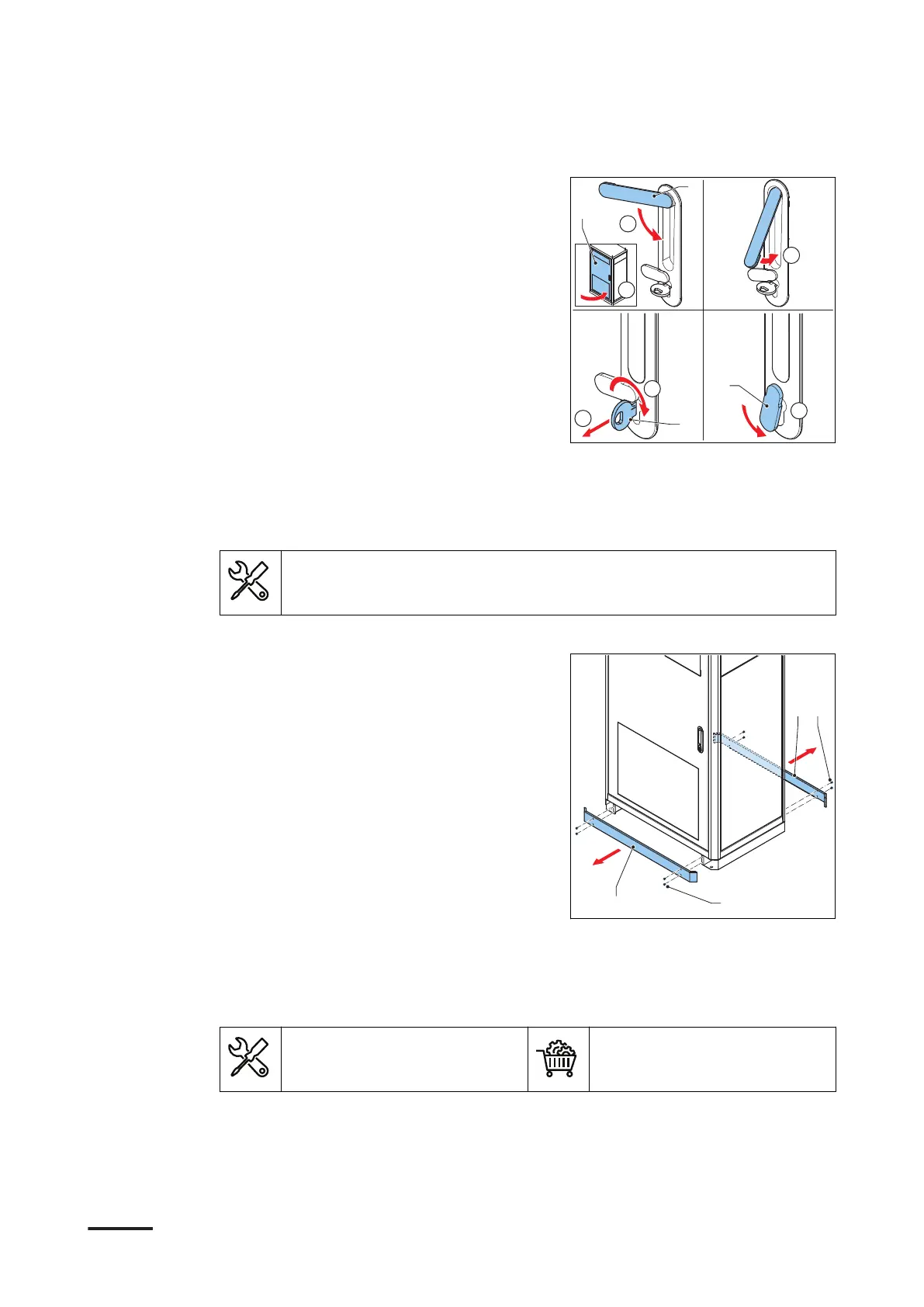

Procedure
1. Close the door (A).
2. Turn the handle (B) counterclockwise.
3. Push the handle.
4. Turn the door key (C) clockwise to lock
the door.
5. Remove the door key (C).
6. Turn the cover plate (D) to cover the
keyhole.
10.3 Remove the plinth covers of the power cabinet
Preliminary requirements
• Set of open spanners
Procedure
1. Remove these parts:
• Fasteners (A)
• Plinth covers (B)
10.4 Install the covers
Preliminary requirements
• Set of open spanners
• Four nuts with washers M6
(C), four bolts M5 (D)
Access to parts
HVC 200/300/360-EN | 002 69
