Note:
• The maximum amount of current supplied to the vehicle can be
limited by the charging interface.
• If the temperature of the power module is higher than 55 °C,
derating of the power cabinet occurs. The derating highly depends
on the charging interface (cable/pantograph), the vehicle inlet, the
temperature, and the duration. This can only be given on a system
level.
• In the Dynamic variant the maximum output current for one outlet is
available only when the sum of the output currents for all the outlets
in use does not exceed the total output current of the power cabinet.

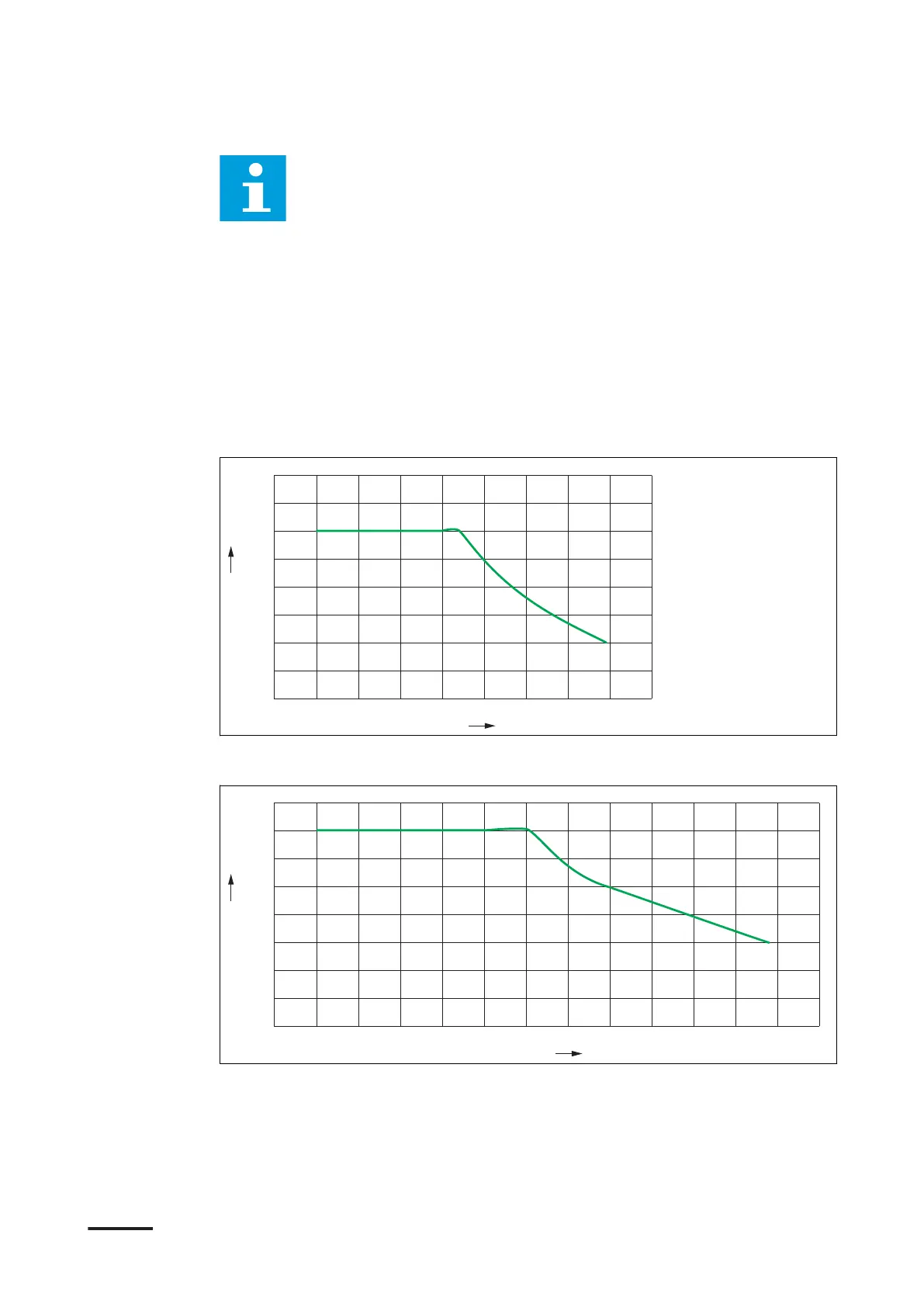

12.15.2 Power curve
HVC 200
V
I
0
300
400
500
600
700
800
900
1000
50
100 150 200 250 300 350 400 450
HVC 300
0
300
400
500
600
700
800
900
1000
50
100 150 200 250 300 350 400 450 500 550 600 650
V
I
Technical data
HVC 200/300/360-EN | 002 89
