ABB HVC 200 User Manual

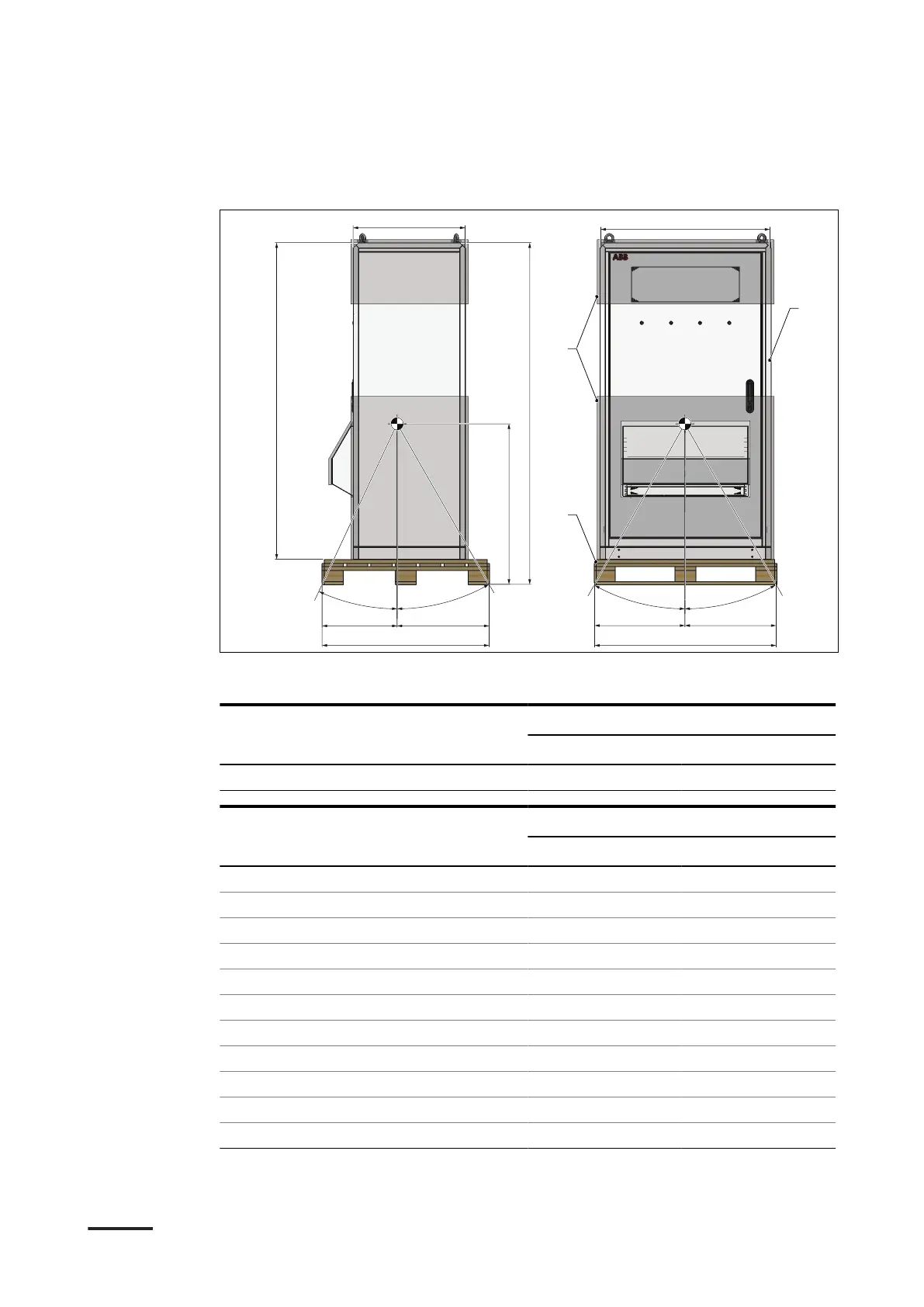

12.7 Dimensions and mass
X6
α4
X7 X8
α3
X3
Y1
Y2
α
2
X4 X5
Y3
α1
X2
X1
A
C
B
A Packaging
B Power cabinet
C Pallet
Parameter Specification
[kg] [lb]
Mass < 1000 < 2200
Parameter Specification
[mm] [in]
X1 770 30
X2 1170 46
X3 1150 45.3
X4 517 20.4
X5 633 25
X6 1250 49.2
X7 622 24.5
X8 628 24.7
Y1 2180 85.8
Y2 2352 92.6
Y3 1105 43.5
Technical data
HVC 200/300/360-EN | 002 77
