ABB HVC 200 User Manual

Parameter Specification
Airflow 1450 m3/h 853 cfm
Altitude Max. 2000 m above
sea level
Max. 6561 ft above
sea level

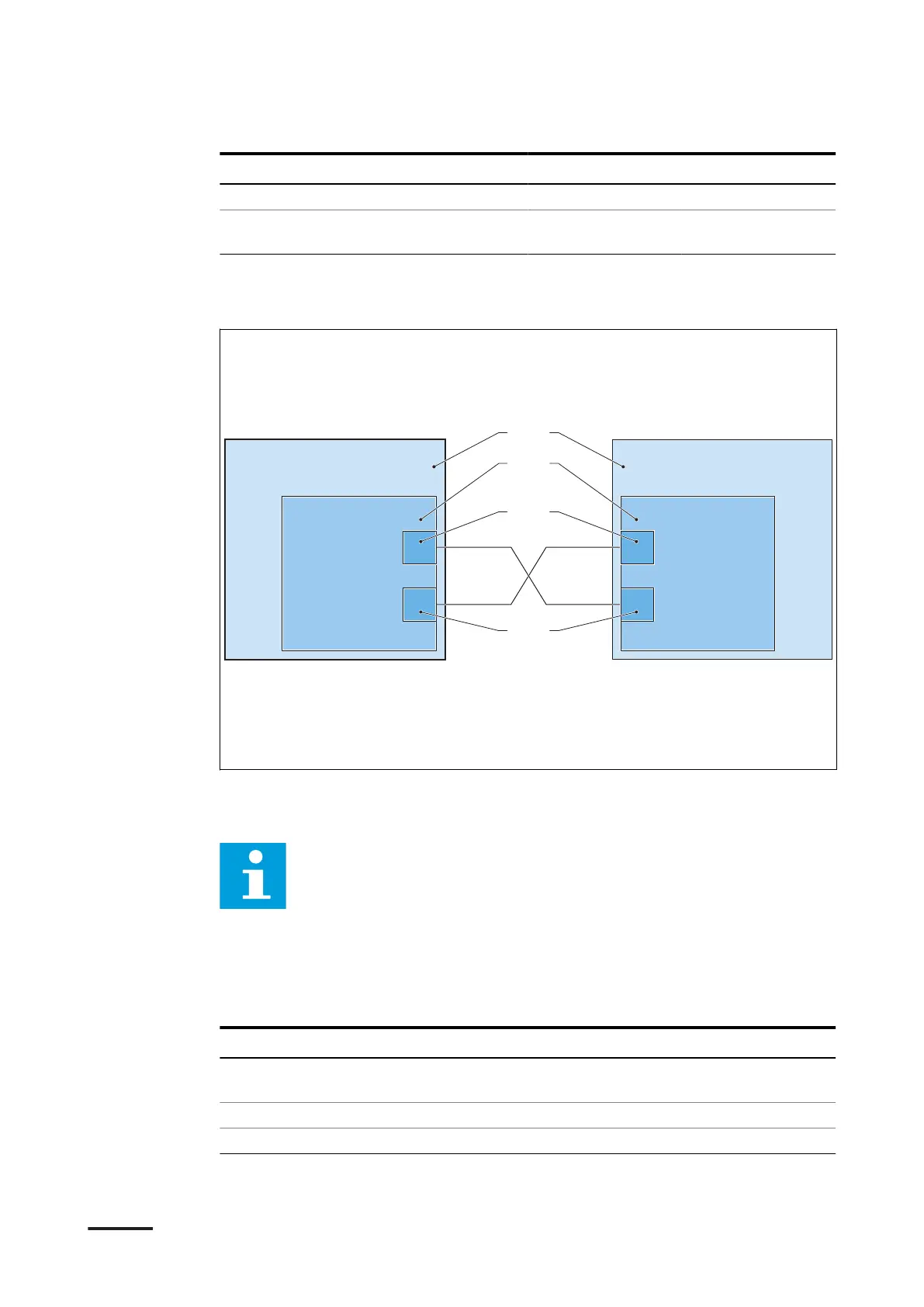

12.12 Wiring diagram for the optical fiber cables
BA
CC
EE
DD
A Power cabinet
B Charging interface
C Optical signal converter
D Output terminal (Tx)
E Input terminal (Rx)
Note: The cables between the power cabinet and the charging interface
always connect an output terminal (D) to an input terminal (E). Do not
connect terminals that are the same, for example an output terminal to
an output terminal.
12.13 Cable specifications
12.13.1 General specifications for cables
Parameter Specification
Ambient resistance Resistance to placing in the ground, sub-
merged in conduit
Compliance UL recognized and approved components
Isolation requirements UL recognized and approved components
Technical data
82 HVC 200/300/360-EN | 002
