ABB HVC 200 User Manual

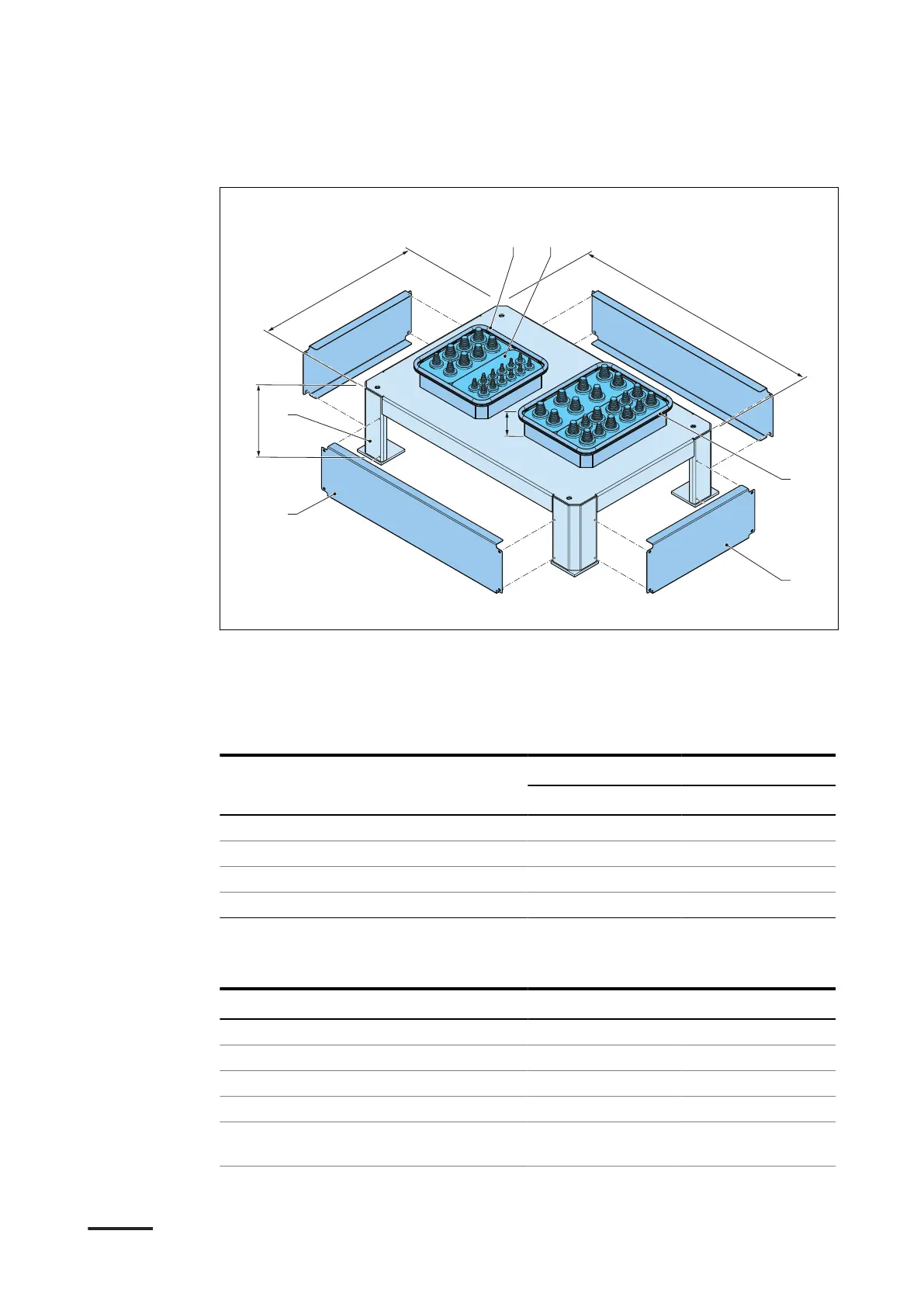

12.10.2 Power cabinet (metal frame)
F
E
D
C
BA
X1
Y1
Z1
Z2
A Gasket for the AC and signal gland
plate
B Gland plates
C Gasket for the DC gland plate
D Cover plate left and right
E Cover plate front and rear
F Metal frame
X1 Width of the foundation
Y1 Depth of the foundation
Z1 Height of the foundation
Z2 Height of the gland plate
Parameter Specification
[mm] [in]
X1 1190 46.9
Y1 790 31.1
Z1 320 12.6
Z2 79 3.1
12.11 Ambient conditions
Parameter Specification
Operating temperature -35 °C to +55 °C -31 °F to +131 °F
Storage temperature -10 °C to +70 °C 14 °F to +158 °F
Maximum allowed pressure decrease 300 Pa 0.09 inHg
Storage conditions Indoor, dry Indoor, dry
Relative humidity 5% - 95% (non-con-
densing)
5% - 95% (non-con-
densing)
Technical data
HVC 200/300/360-EN | 002 81
