7 Commissioning
7.1 Precommissioning mode
7.1.1 Do a check on the status of the precommisioning mode
Before the cabinet is prepared for commissioning, the cabinet must be out of the
precommissioning mode.
Do this check to know what the status is of the precommissioning mode:
1. Look if the the precommissioning switch Q10 is set to 1 (EXT).
2. Look if the 120 V AC cable is connected to terminal block X-1.
3. Do an inspection of the PE connection. Refer to section 6.4.3.
If all these conditions are true, then the cabinet is in precommissioning mode. Take
the cabinet out of precommissioning mode. Refer to section 7.1.2.
If one or more of these conditions are false, then the cabinet is out of the
precommissioning mode. Prepare the cabinet for commissioning.Refer to section
7.2.
7.1.2 General procedure
Preliminary requirements
• The cabinet is in the precommissioning mode. Refer to section 7.1.1.
Procedure
1. Set the precommissioning switch. Refer to section 7.1.3.
2. Remove the 120 V AC cable. Refer to section 7.1.4.
7.1.3 Set the precommissioning switch
Preliminary requirements
• Only do this procedure when another procedure refers to it.
Procedure

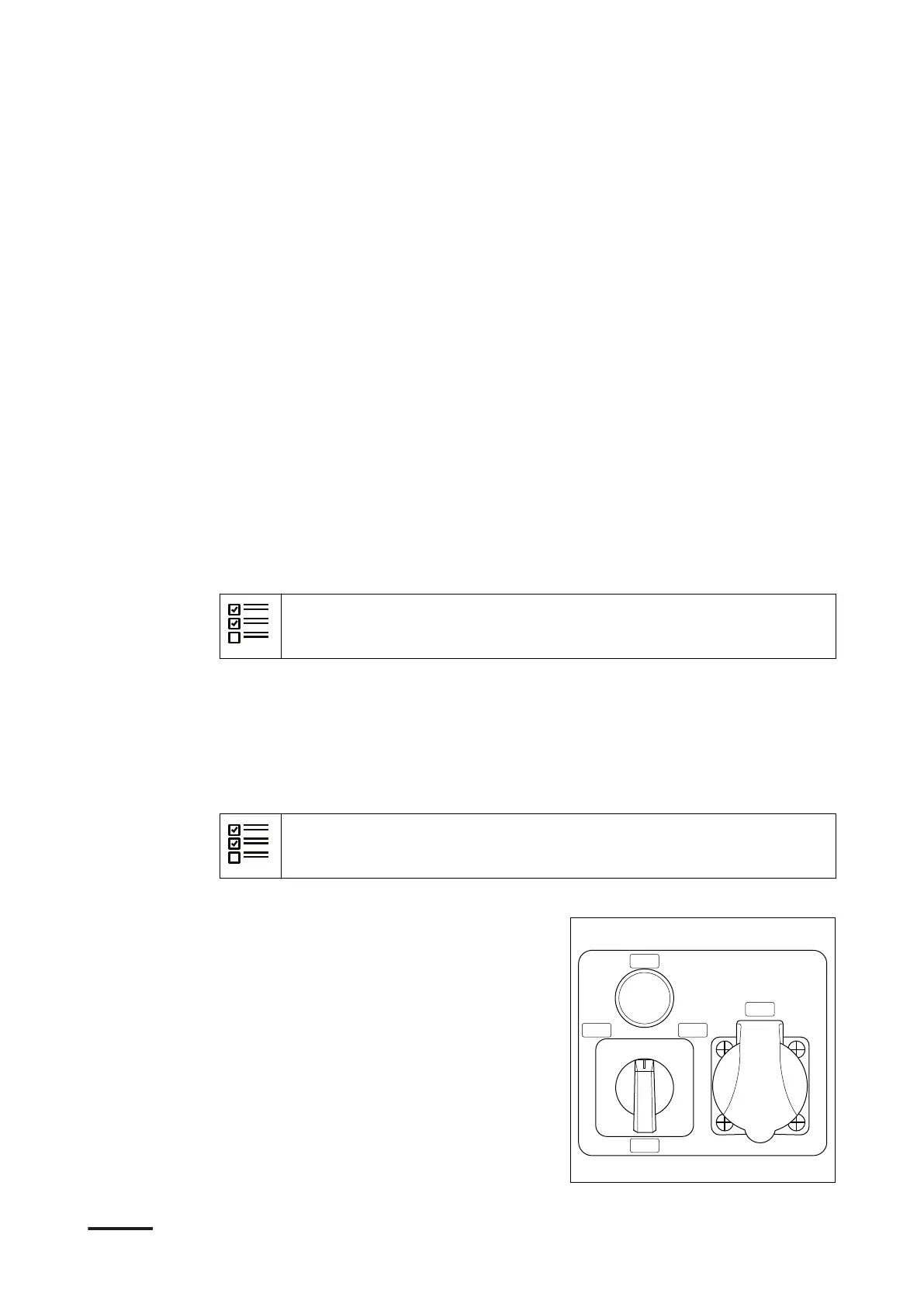

1. Set the precommissioning switch Q10
to the postion 0.
2. Set the breaker Q2 to OFF.
3. De-energize the external 120 V AC
power supply.
4. Measure the voltage before the
breaker Q2. It must be 0 V AC.
Commissioning
HVC 200/300/360-EN | 002 61
