ABB HVC 200 User Manual

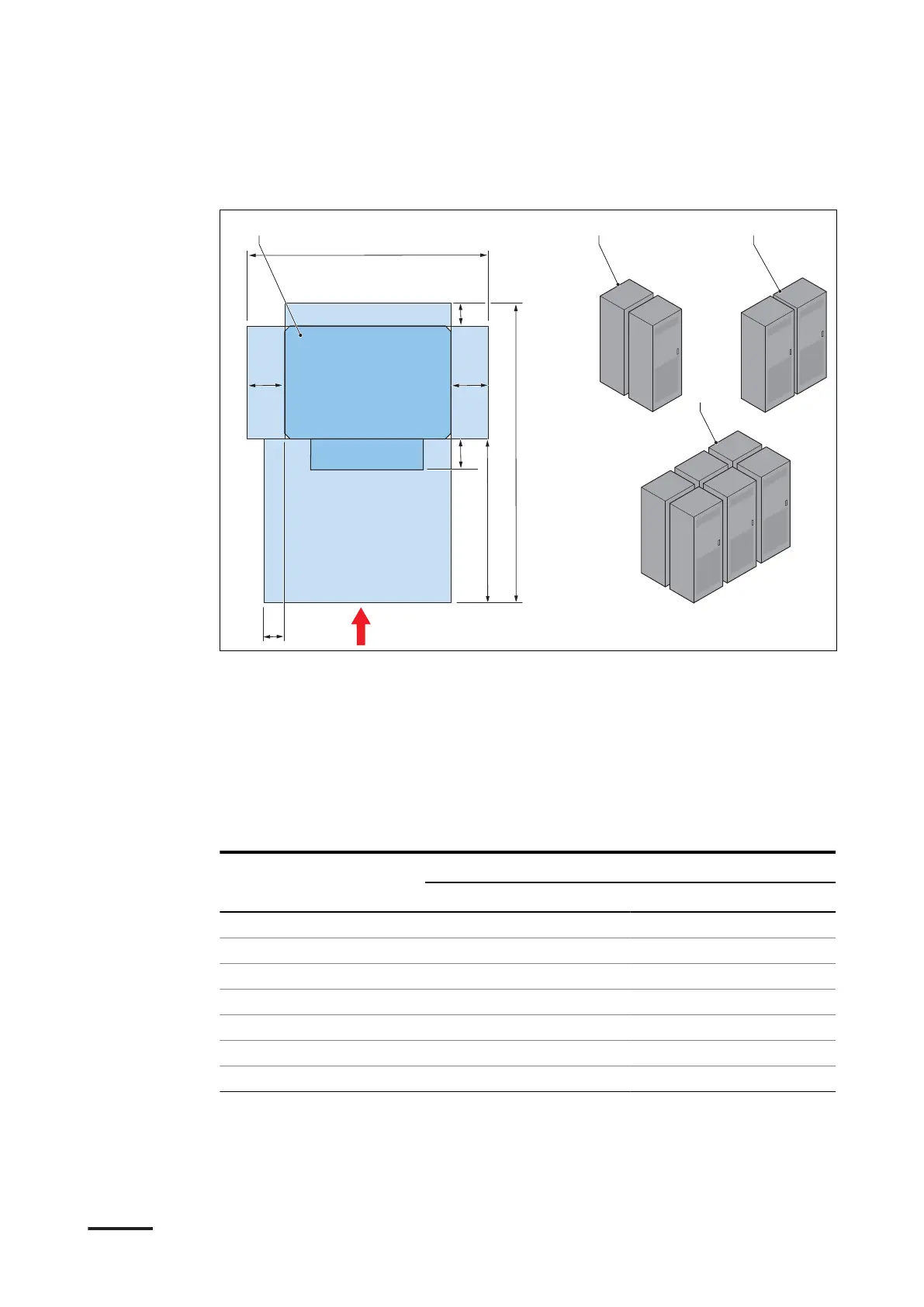

12.9 Space requirements
Y2
X2
X2
X3
X1
Y1
Y4
Y3
BA C
D
X1 Total width required for the power
cabinet
X2 Space for the foundation
X3 Space to open the power cabinet
door
Y1 Total depth required for the power
cabinet
Y2 Space to open the power cabinet
door
Y3 Depth of the muffler
Y4 Space for the foundation
A Power cabinet
B Back to back configuration
C Side by side configuration
D Side by side and back to back
configuration, six power cabinets
Parameter Specification for a single power cabinet
[mm] [in]
X1 1370 53.9
X2 100 3.9
X3 50 1.9
Y1 1970 77.6
Y2 1100 43.3
Y3 150 5.9
Y4 100 3.9
Technical data
HVC 200/300/360-EN | 002 79
