Technical data of TSC 2013
Torch Service Center - TSC 2013 3HDA000057A8519-001 1-13
Assembly instructions
1.6 Technical data of TSC 2013

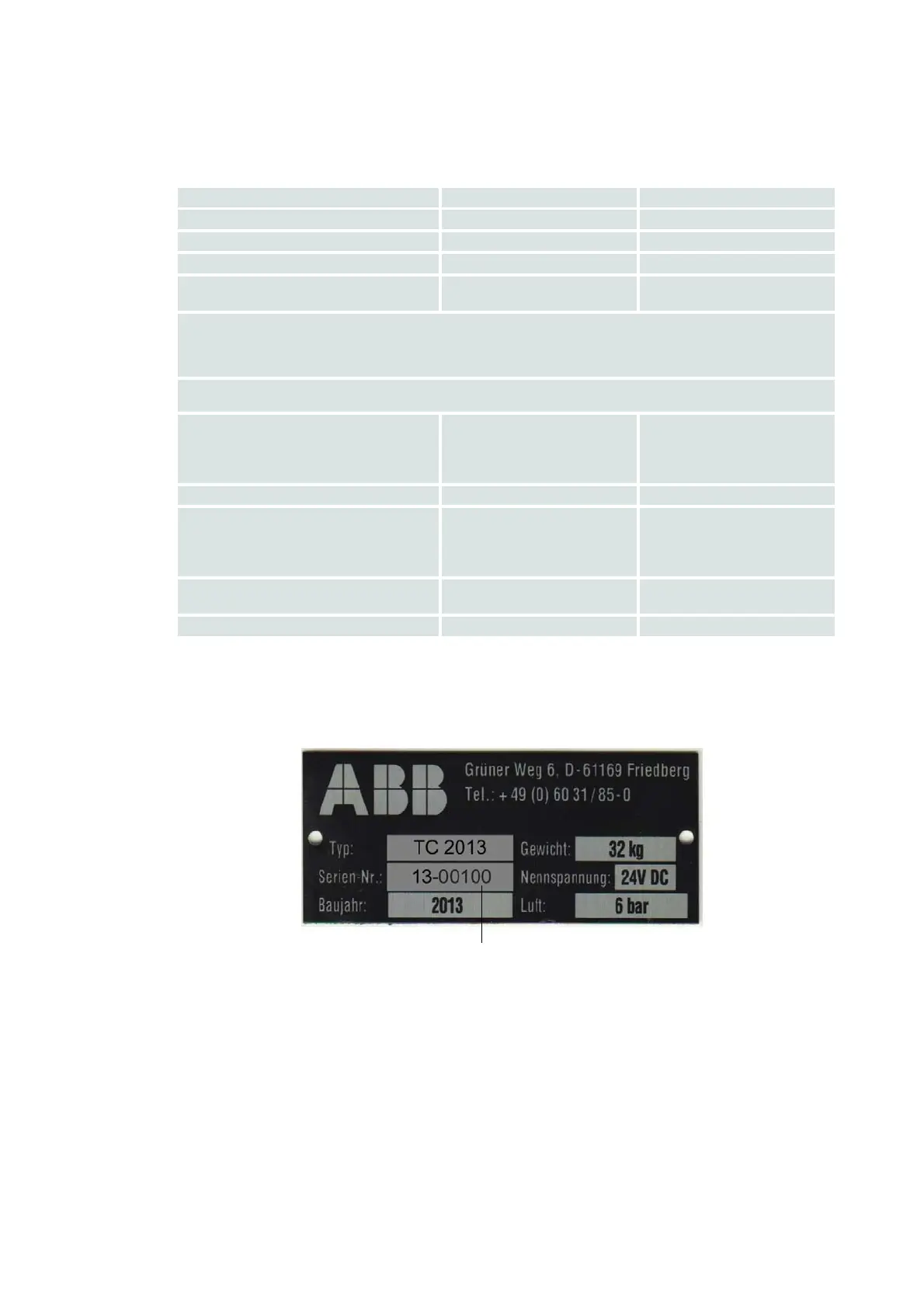

Rating plate
There is a rating plate on the TC 2013 with the following particulars:
* Note: This number of sequential and is issued individually for each delivered TC 2013.
Control voltage 24VDC
Max. current consumption 0,4 A
Air connection G 1/8" at 6-10 bar
Clamping cylinder Ø 65 x 34 mm stroke F = 1227N at 5 bar
Gas nozzle external diameter min. Ø 20 mm
max. Ø 34 mm
adjustable using different
spacer plate thicknesses
Milling cutter, V-block and spacer plate for standard torches PKH and PKI 500 (404.15.70) with torch exter-
nal diameter Ø 28 mm.
(Please enquire about milling cutter, V-block and spacer plate for special torches).
Air motor n = 950 / min
Md = 3 Nm
Stroke = 45 mm
Shaft end Ø 9x16 length
Air consumption 25 litres/cycle
Max. welding wire diameter for cutting d= 1.00 mm, steel
d= 1.2 mm, aluminium
d= 1.2 mm, steel
at min. air pressure 5 bar
at min. air pressure 5 bar
at min. 6 bar air pressure
Dimensions approx. 430 mm x 300 mm
approx. 100 mm height
Weight 34 kg
