ABB TSC 2013 User Manual

Technical data of TSC 2013
1-14 3HDA000057A8519-001 Torch Service Center - TSC 2013
Assembly instructions

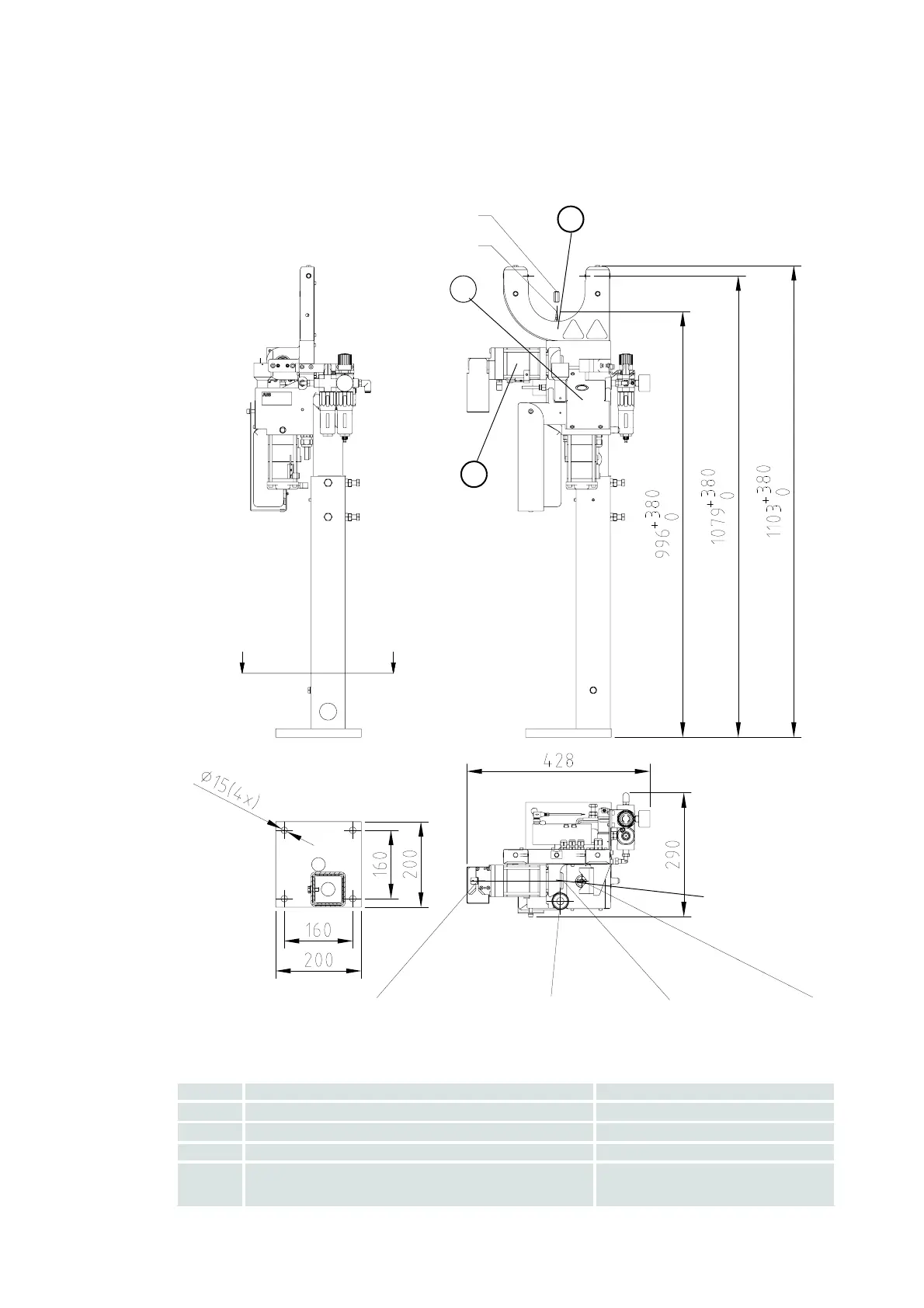

Dimensions of TSC 2013
Pos. Assembly Article No
1 Torch cleaner TC 2013 3HDA000057A5527
2 Wire cutter 3HDA000000A9289
3 TCP measurement 3HDA000000A9324
Weight: 32 kg without release agent
AA
A-A ( 1 : 5 )
3
2
1
Spacer plate
Wire cutter Spray head
Clambing cylinder
Milling cutter
Protective sleeve
Adjusting tip
3
1

ABB TSC 2013 Specifications

General

Brand	ABB
Model	TSC 2013
Category	Robotics
Language	English
