Structure and function
2-6 3HDA000057A8519-001 Torch cleaner TC 2013
Assembly instructions
2.3 Structure and function
The function of the TC 2013, unlike the complete TSC 2013, contains only the cleaning/milling of
the torch and subsequent spraying of liquid weld spatter release agent.
The wire-cutting and TCP gauging functions are included in the basic unit.
The wire-cutting add-on module and TCP gauging are available as optional extras and can be ret-
rofitted at any time.

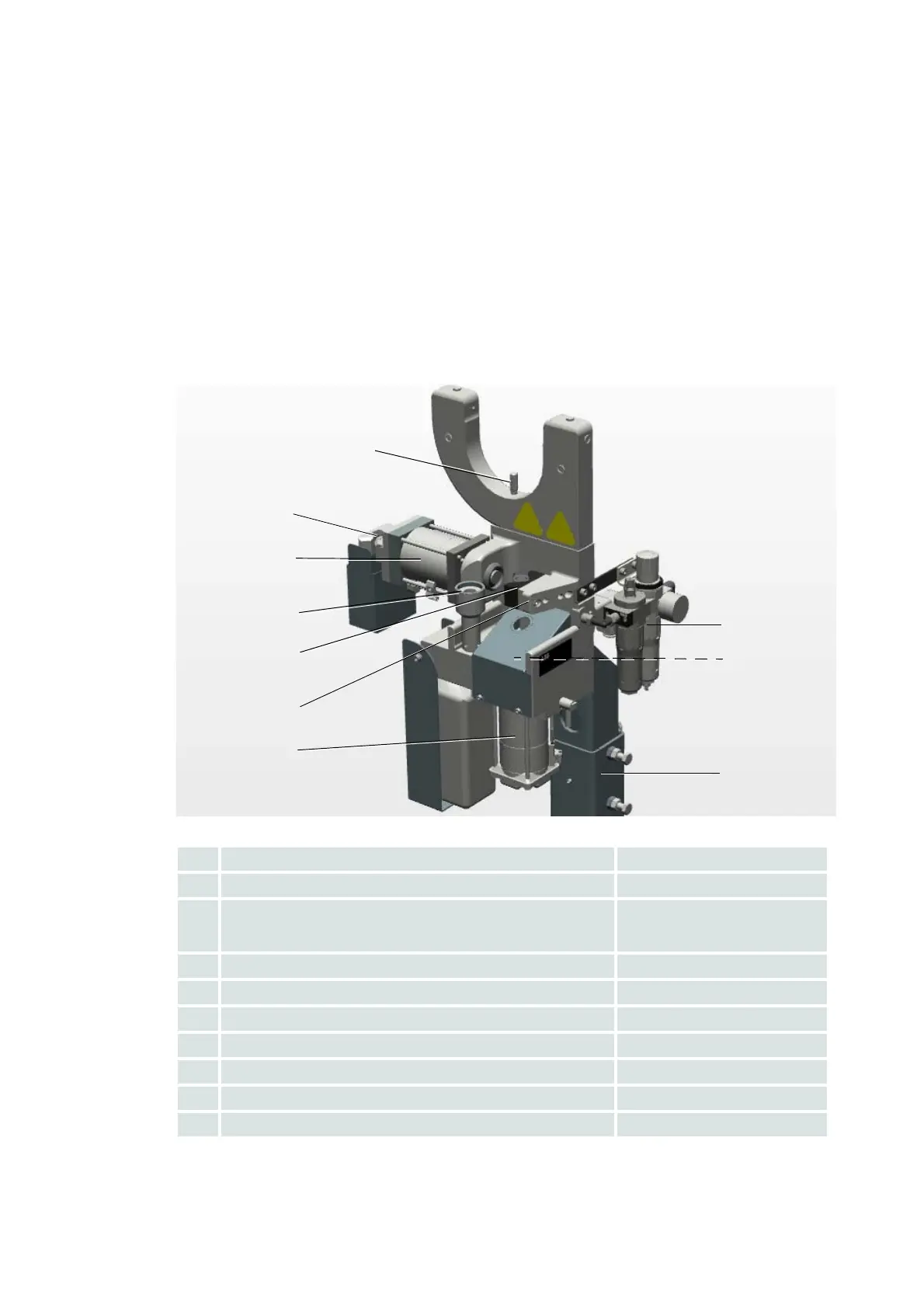

2.3.1 Structure
Pos. Name
1 Stand
2a
2b
2c
Pneumatic clamping cylinder with
V-block and
spacer plate
3 Motor pack consisting of air motor and feed unit
4 Milling cutter
5 Spray device
6 Ventilation circuit with valves and maintenance unit
7* Wire cutter Option
8* TCP gauging Option
1
4
3
2a
7*
8*
6
5
2b
2c
