Assembly of the wire cutter on the TC 2013
Wire cutter 3HDA000057A8519-001 3-3
Assembly instructions
• The knife closes and cuts the welding wire to the desired wire length distance. The knife and
clamping cylinder are then back in their home position.
3.6 Assembly of the wire cutter on the TC 2013
If a wire cutter is subsequently to be installed on the TC 2013, a "wire cutter conversion kit" (Article
No 3HDA000057A8405) is needed, consisting of:
3.6.1 Preparations
The following are needed for assembly of the wire cutter on the TC 2013:
– 1 set of Allen keys
– 1 open-end wrench (wrench width 10 mm).
It is recommended that the TC 2013 should be cleaned prior to the conversion.

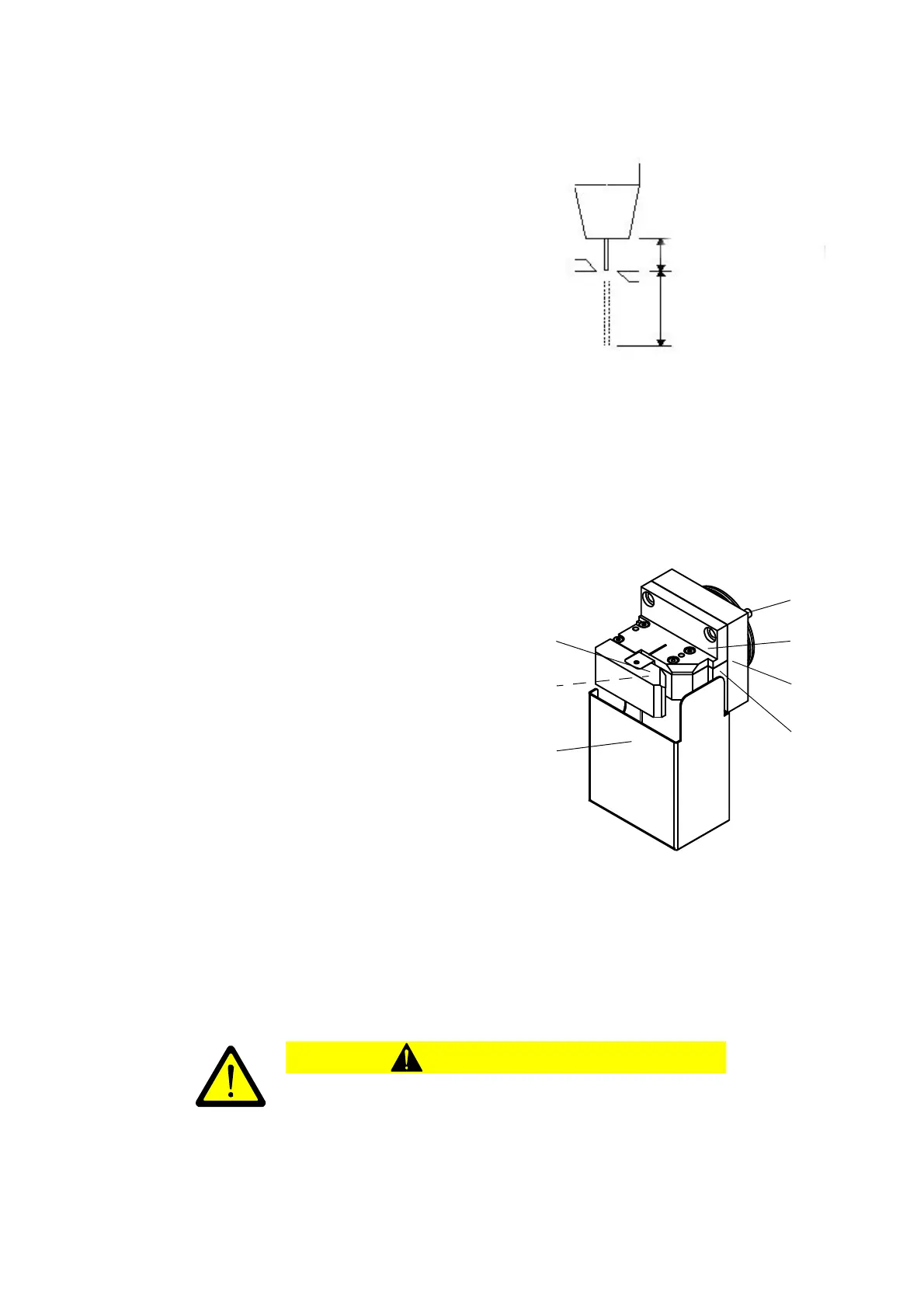

• The welding torch runs to the desired wire length
distance (e.g. 10 mm) above the knife into the wire-
cutting position of the torch cleaner.
• The wire feed advances a welding wire surplus
length of at least 20 mm!
(A surplus wire length of at least 20 mm is neces-
sary to avoid interfering with operation due to wire
waste.)
Wire length distance
Surplus wire length
20mm
1. lid
2. drive shaft
3. housing
4. cover
5. carrier for blade
6. cutting plate set
7. wire capture container
Before reconstructing, make sure that the air and
power supplies are disconnected!
