Assembly and disassembly
2-14 3HDA000057A8519-001 Torch cleaner TC 2013
Assembly instructions
2.4.5 Setting of spray mechanism

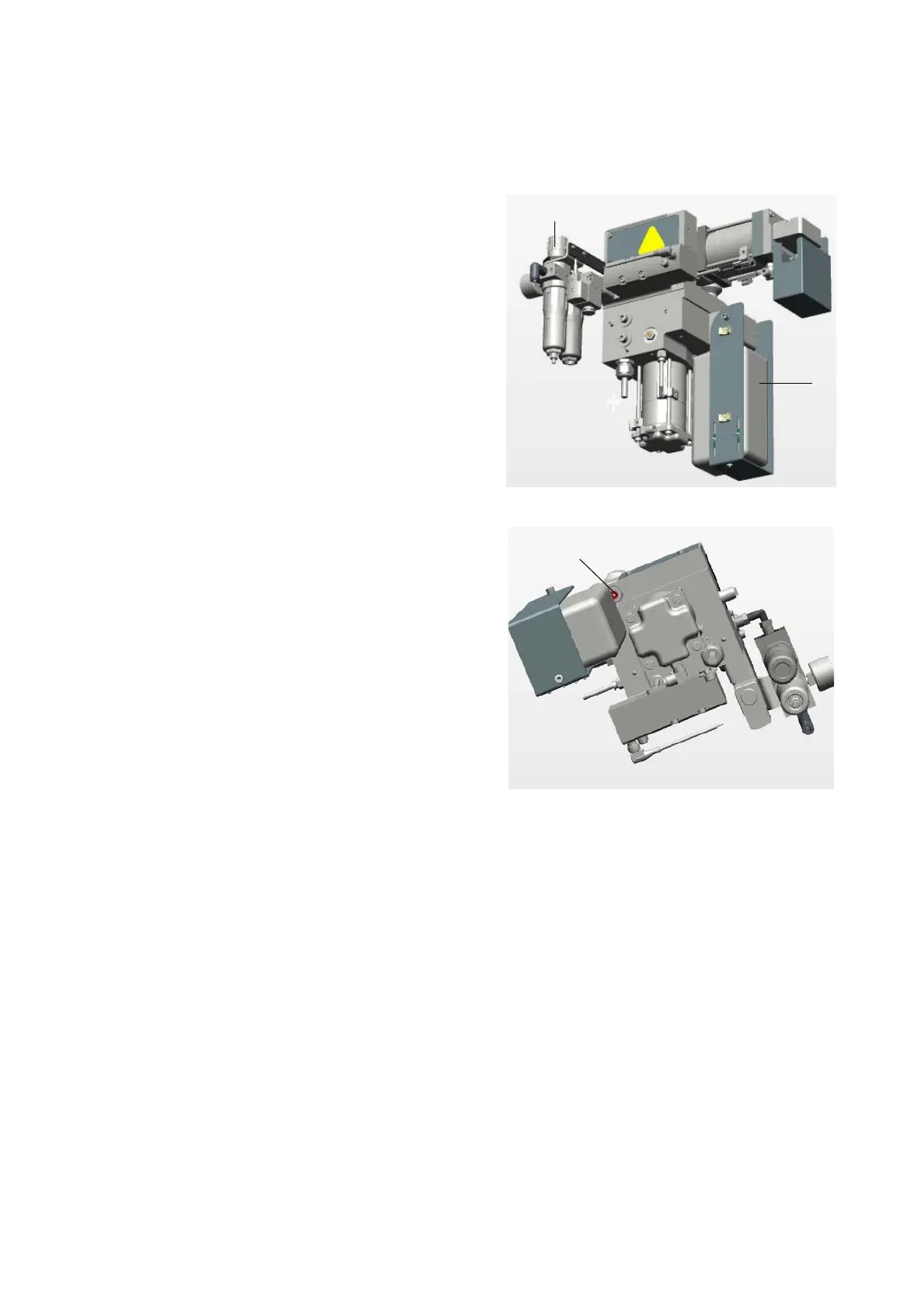

1. Check level of liquid in release agent tank
(1) and if necessary top up or replace bottle.
2. Set system pressure of 6 bar in the pressure
control valve (2) .
3. The degree of nebulisation is set on the set-
ting screw (3).
4. Slowly open setting screw until optimum
nebulisation is reached.
5. The amount of spray is regulated by the soft-
ware using the spraying time.
Note: Quantity sprayed and spraying time should
be kept as small as possible to avoid an excess of
release agent (drips onto weld seam impairs seam
quality).
