ABB TSC 2013 User Manual

Assembly of the wire cutter on the TC 2013
Wire cutter 3HDA000057A8519-001 3-5
Assembly instructions
3.6.3 Assembly of wire cutter
8. Guide piston rod (6) and shaft (10) lightly oiled into the cylinder tube (8) and through the
adapter with wiper and O-ring.
9. Push cushion disc (5) and lid (11) into the cylinder tube. It should be ensured that the O-rings
(12x3 and 60x3) are assembled.
10. Screw blade carrier (12) together with the cutting plate at the bottom onto the shaft.
11. Screw housing (13), cover and cutting plate at the top. Then push the blade carrier (12) and
rotate the piston so that the blade carrier is upright.
12. Screw casing and cover with screws (3) and dowel pins (14) on the lid (11) of the wire cutter.
13. Attach sensors (2) together with the clamping holders at the lower screws and position using
the setting aid on the cylinder tube.

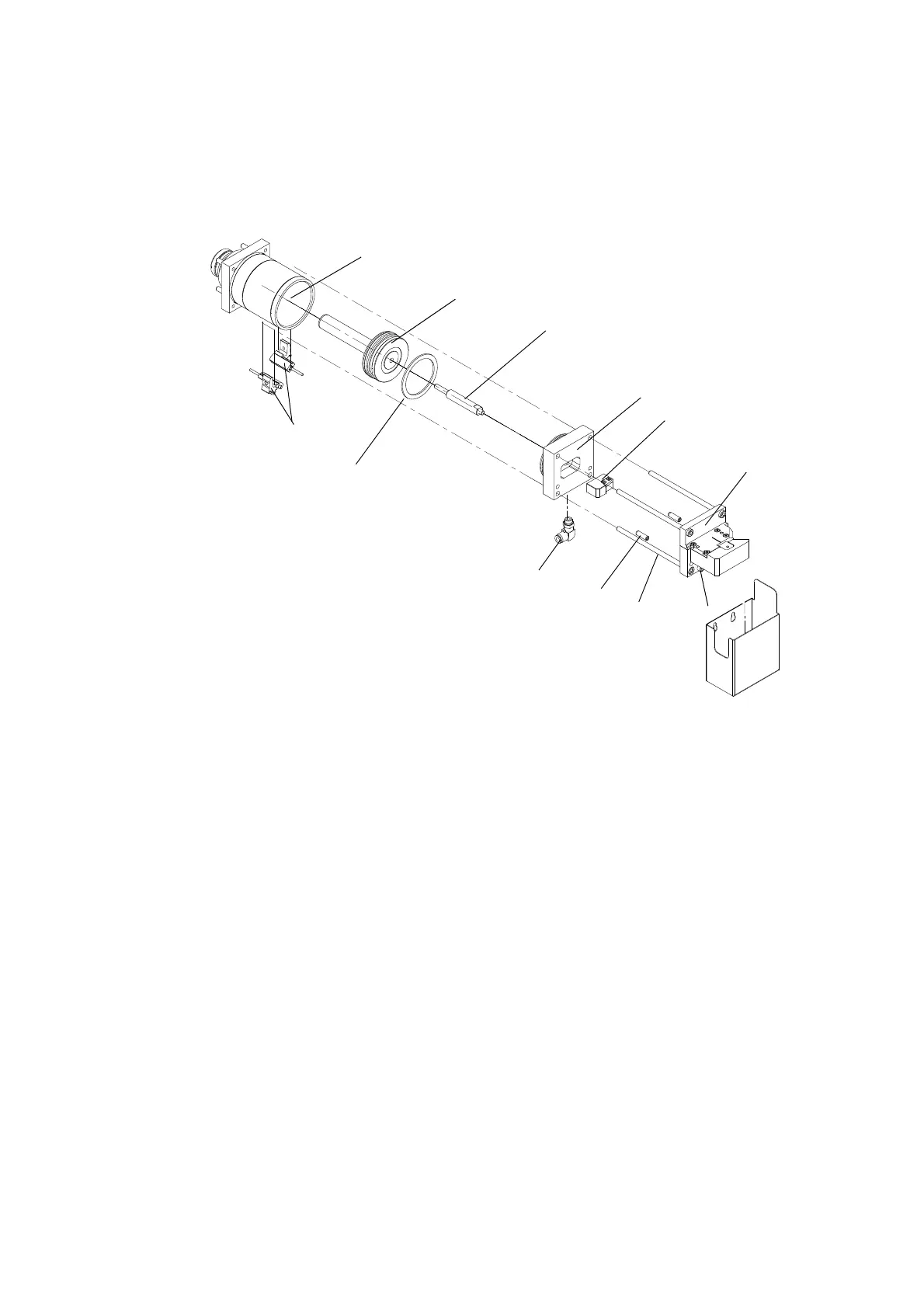

Figure 3-3 Assembly of wire cutter
10
8
5
11
6
12
3
14
13
2
1
15
