Technical data of TC 2013
2-4 3HDA000057A8519-001 Torch cleaner TC 2013
Assembly instructions
2.2.2 Milling cutter
The milling cutter represented in Figure 2-1 for removing welding spatters is selected into depen-
dence of the type of the gas nozzle.

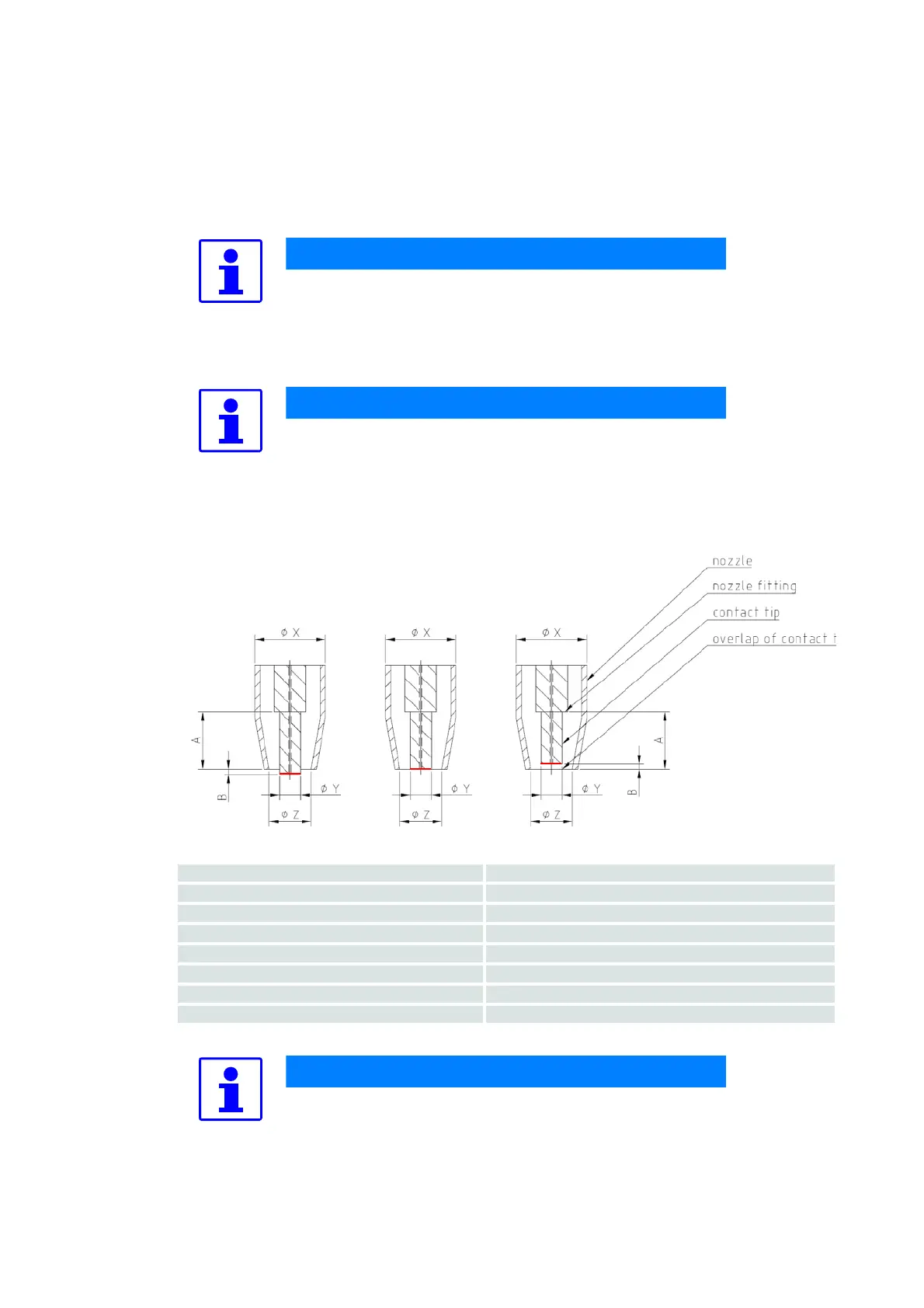

Figure 2-2 Dimensions of the gas nozzle
In principle, the TSC 2013 is delivered without milling
cutter. This must separately be ordered from ABB as a
spare part.
For the choice of a suitable milling cutter the measures
as well as the construction of the gas nozzle are
needed (see Figure 2-2).
Outside diameter gas nozzle Ø X [mm]
Outside diameter contact tube Ø Y [mm]
Inside diameter gas nozzle Ø Z [mm]
Distance of leading edge to nozzle stick A [mm]
Contact tube prodruding
Contact tube flush
Contact tube inwards
Distance of leading edge to contact tube B [mm]
The available values are to write down on the Dimen-
sion sheet Gas nozzle (see Chapter 5 Appendix) and
have to be transmitted to ABB Automation GmbH.
Contact tube
flush
prodruding
Contact tube Contact tube
inwards
