ABB TSC 2013 User Manual

Assembly
4-8 3HDA000057A8519-001 TCP gauging (BullsEye
®
)
Assembly instructions

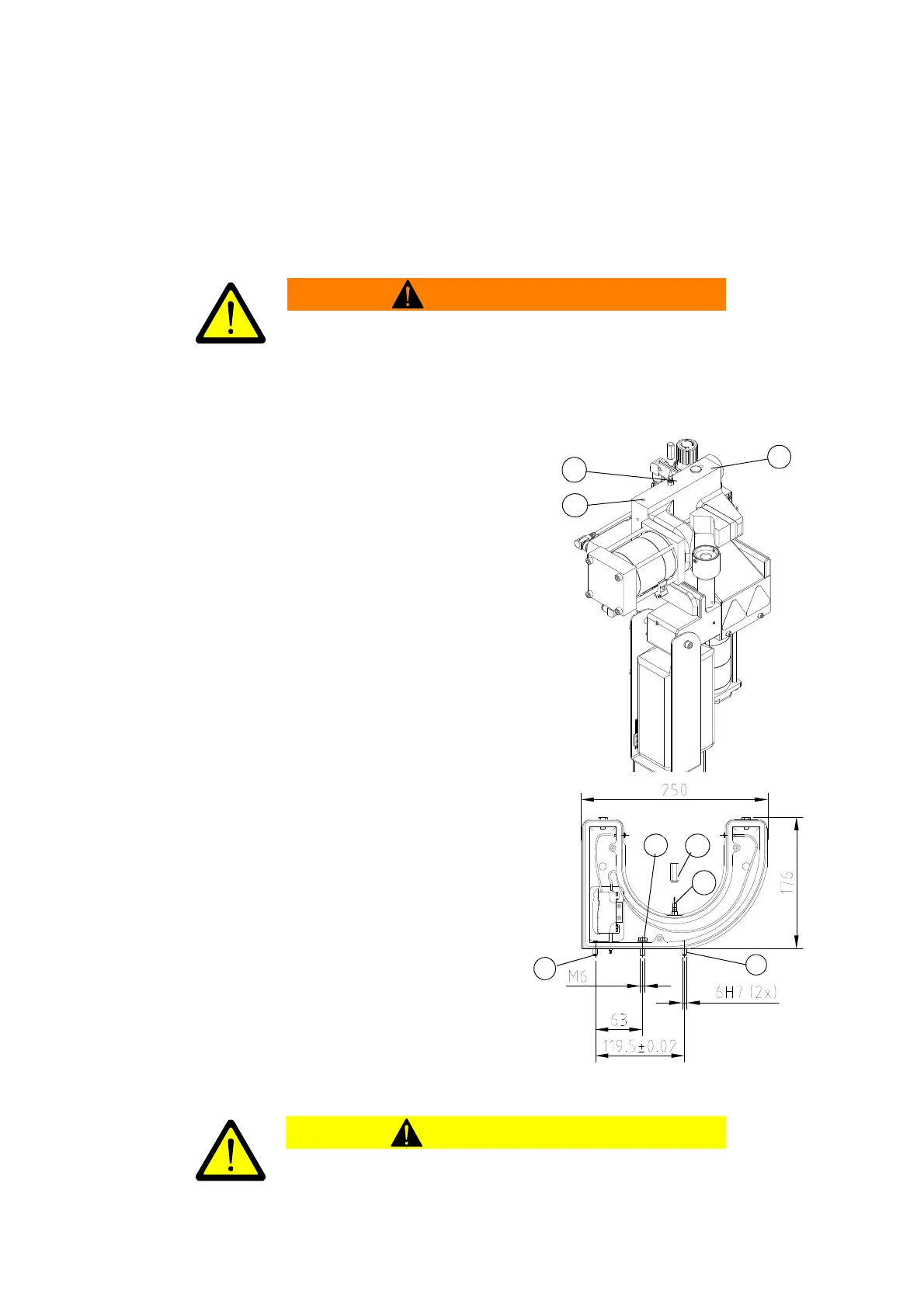

4.7 Assembly
4.7.1 Subsequent assembly on the TC 2013
The TCP gauging can be retrofitted on the TC 2013 at any time.
WARNING
Before assembly and installation work the system
must be electrically dead and pressureless and pro-
tected against being switched back on.
1. It should be verified before starting
assembly that the protective sleeve (3)
is in position on the adjusting tip! (5) . If
not, put the protective sleeve on (danger
of piercing).
2. Place the TCP gauging unit on the TC 2013
so that the two pins (4) rest in the holes pro-
vided (2).
3. Then secure with 1 screw M6x12 (1)
4. Then attach the two pins (4).
CAUTION
The electrical connection of the TCP gauging is to be
correct out as shown in the connection diagram.
1
2
2
1
3
4
5
4
