Assembly of the wire cutter on the TC 2013
3-4 3HDA000057A8519-001 Wire cutter
Assembly instructions
3.6.2 Disassembly of clamping cylinder
Slight reconstructions are to be carried out in order to be able to install the wire cutter on the TC
2013. Existing components are partly replaced by new ones.
The following steps are to be performed:
1. Make system pressureless and secure against switching back on.
2. Detach air hose from push-in fitting (1) and unscrew push-in fitting. This is needed again for
the wire cutter.
3. Unscrew sensors (2) together with the clamping holders and protect against unintentional
tearing-off.
4. Detach and remove 4 cheese-head screws M6x130 (3). These are needed again for the wire
cutter.
5. Pull off lid (4) including O-ring. These parts are no longer needed.
6. Push/pull out cushion disc (5) and combined piston (6) with piston rod (7) from the cylinder
tube (8) .
7. Remove socket screw M6x30 (9) from the piston and instead attach the combined piston (6)
with shaft (10) on the piston rod.

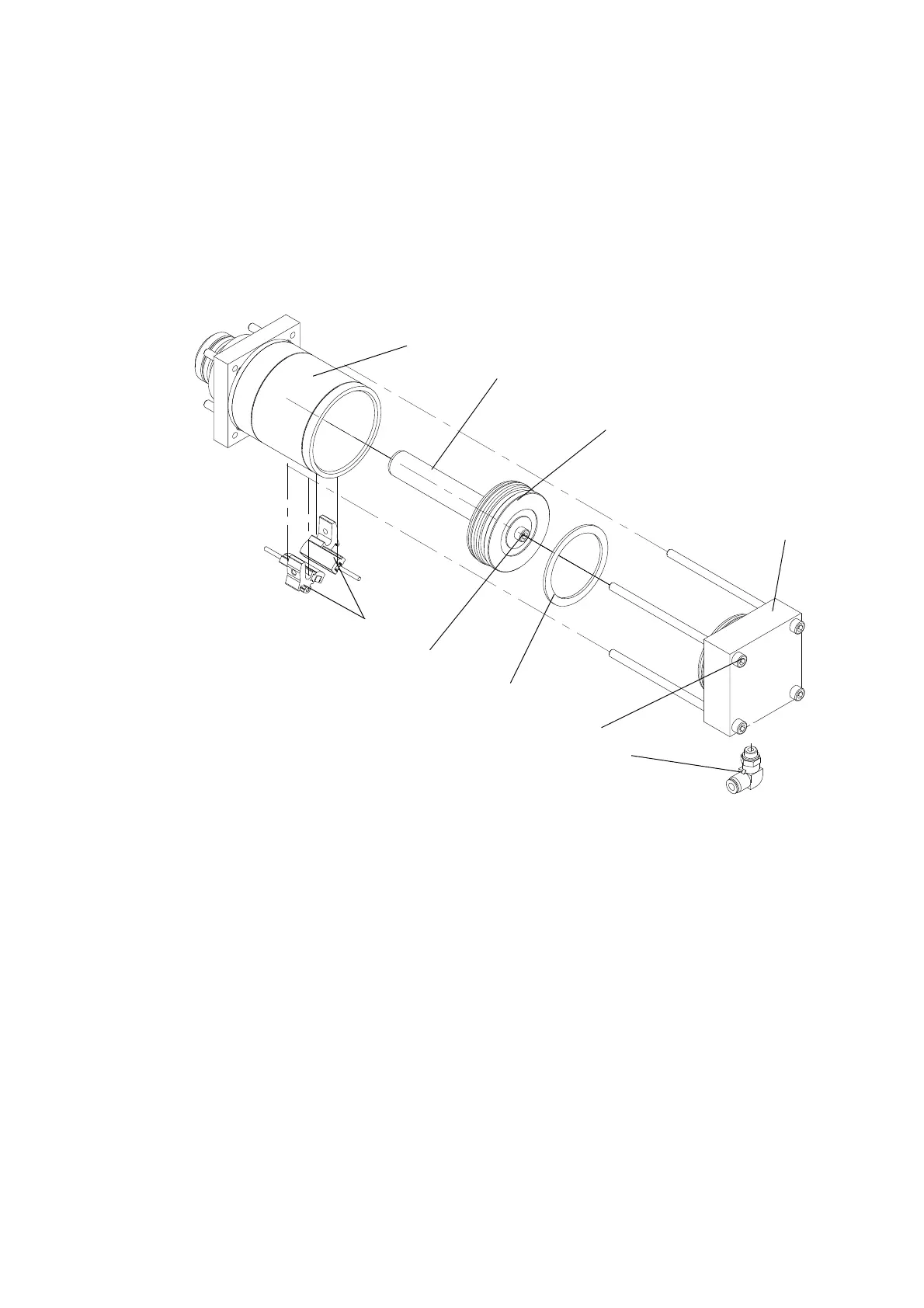

Figure 3-2 Disassembly of clamping cylinder
