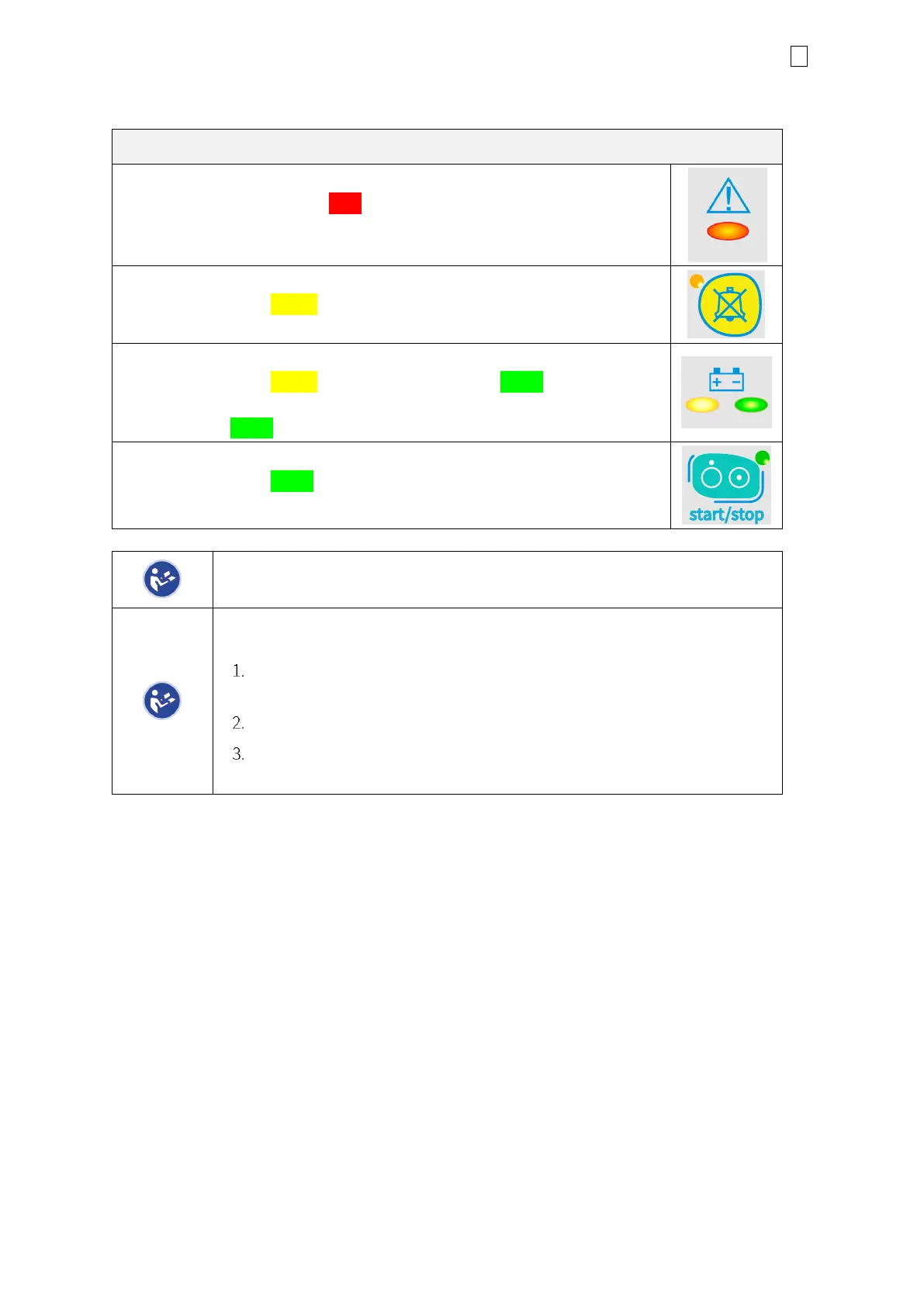

4.2.6 LED Indicators
LED Indicator explanation
Warning LED
This LED illuminates or blink Red when a system alarm is triggered.
Alarm Silence LED
This LED illuminates Yellow when the alarm is silenced.
The remaining time for the alarm muting is displayed on the screen.
Battery LED
This LED illuminates Yellow in Battery operation and Green when the
battery is fully charged.
The LED blinks Green when the Battery is charging.
Mains LED
This LED illuminates Green in Mains operation and switches OFF in battery
operation.
When powered by the external 24 VDC connector, the Mains LED and Battery
LED will NOT illuminate.
If the device shuts down with warning LED blinking simultaneously with
battery LED, this represents a device fault. Then follow these steps:
Immediately take the device out of service and provide an alternative
means of ventilation to the patient;
Report the incident to your local distributor
DO NOT use the device until it has been checked by suitably trained
and qualified personnel.
