6 Configurations menu 38
fabian Therapy evolution | SW V5.1.x
Ref: 121003.EN / Date: 26Jan2021
6.1.3 O
2
Sensor
The O
2
sensor calibration can be accessed in the Configurations menu, by
pushing the O
2
button.
The O
2
sensor is automatically calibrated when the device starts up and
every 24 hours when in use.
During calibration procedure, the FiO
2
concentration of the fresh gas to
patient is not altered.
• If a “Supply Gas Failure” occurs, the oxygen sensor calibration is
automatically disabled to avoid false sensor calibration.
• Press the 21% button to perform One-
point calibration at 21% O
2
.
• Press the 21 + 100% button to perform a
Two-point calibration at 21% and 100%
O
2
.
After one of these buttons has been the
Calibration procedure starts. If the procedure has
been successful, a Green check mark will appear.
The O
2
sensor can be turned OFF if that the O
2
sensor reaches end of life during use.
You are then expected to use a secondary
respiratory gas monitor until the ventilator can
safely be taken out of service to replace the O
2
sensor.

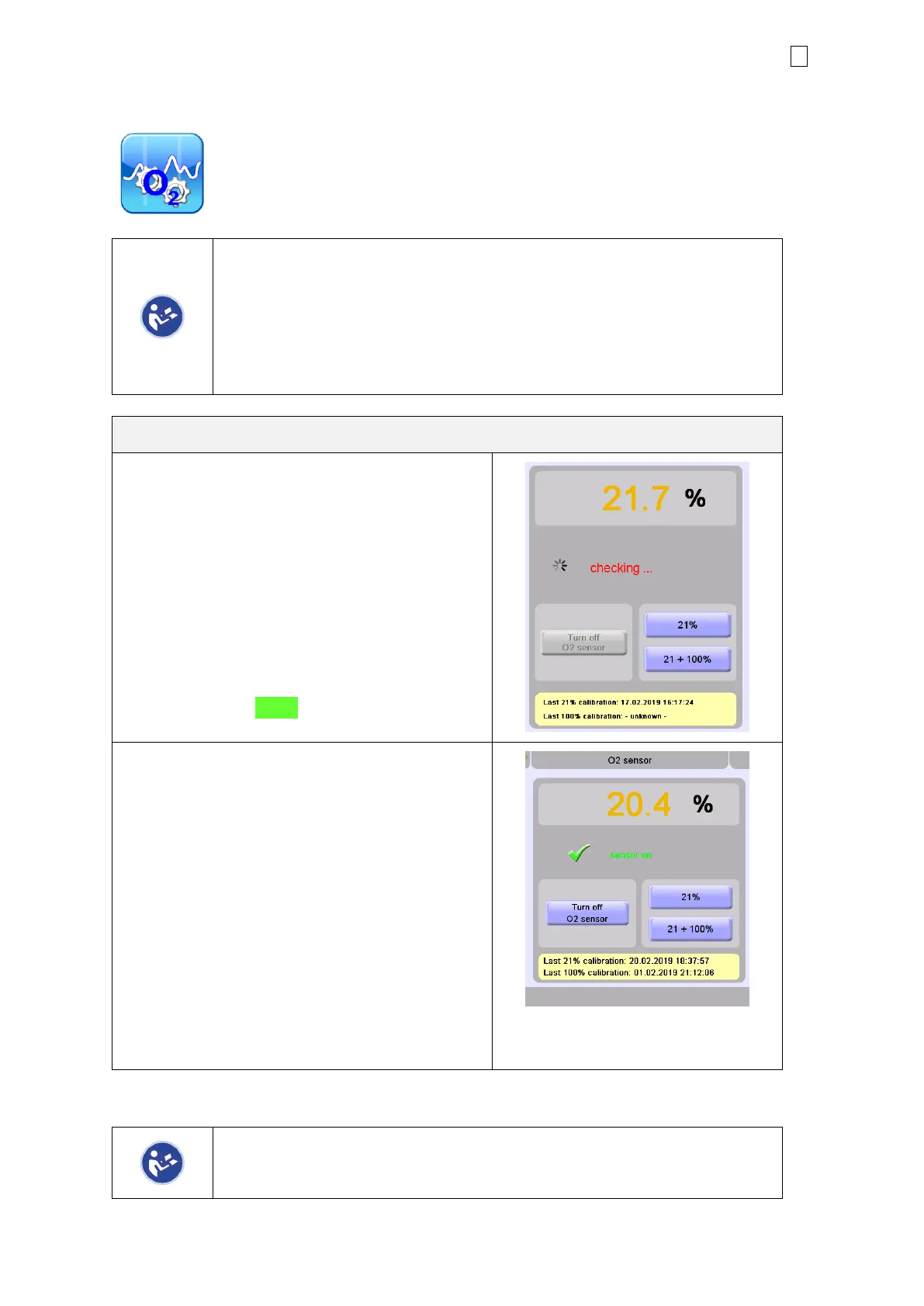

Figure 6-5: O
2
sensor manual
calibration
After a successful calibration, the Date of the last calibration is displayed in the corresponding
field.
Automatic sensor calibration runs every time the equipment restarts and
every 24h. The gas concentration to patient is not altered during this
calibration procedure.
