114 U1253B User’s and Service Guide
4 Changing the Default Settings

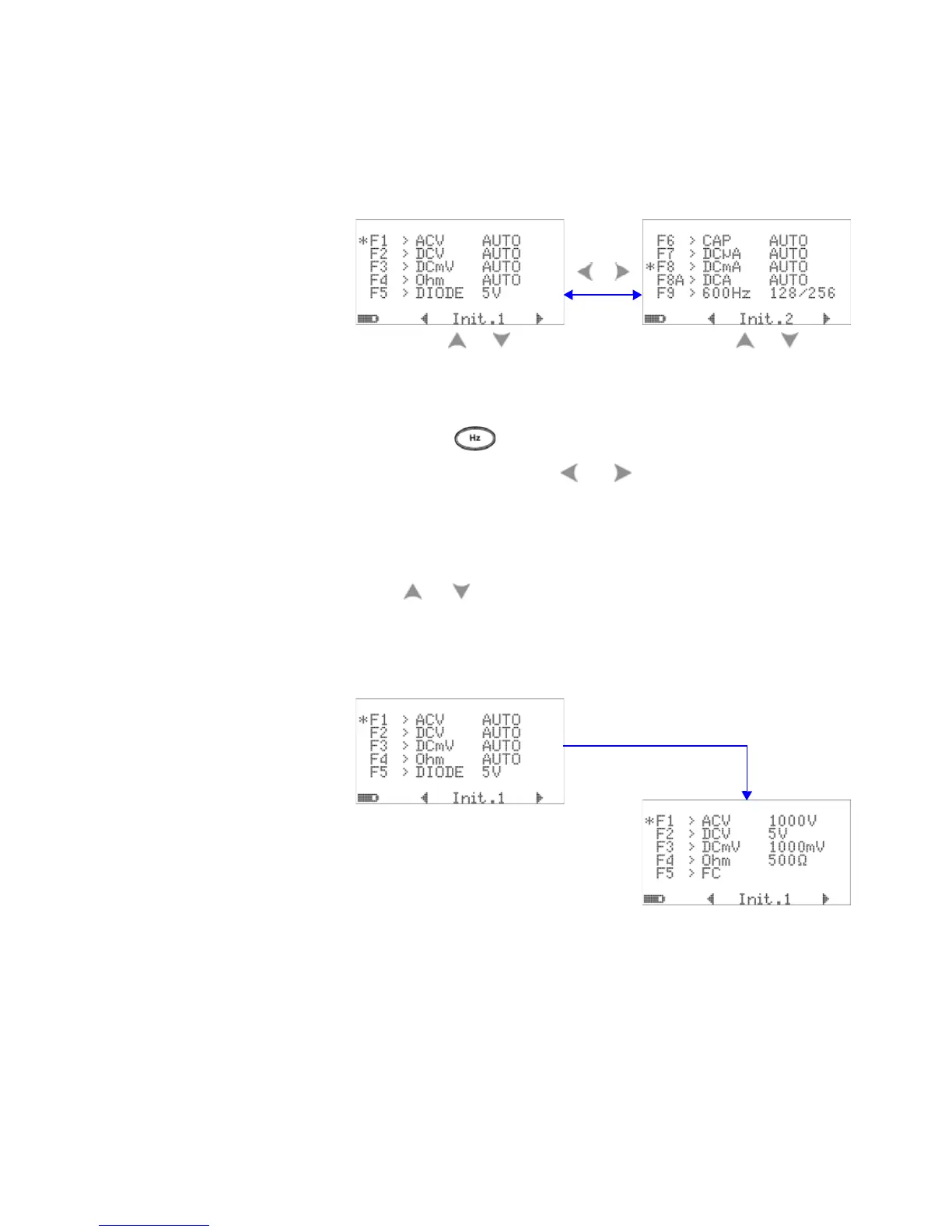

Figure 4-26 Navigating between the initial functions pages
Then press to enter the EDIT mode.
In the EDIT mode, press or to change the initial
(default) measurement range of a selected function. For
example, Figure 4- 27 below shows the initial range of the
AC voltage measurement function at the F1 position changed
to 1000 V (default was Auto).
Press or to change the initial measurement function of a
selected rotary switch position. For example, Figure 4- 27
below shows the initial measurement function of the F5
position changed from DIODE to FC (frequency counter).
Figure 4-27 Editing initial measurement function/range
As another example, Figure 4- 28 below illustrates that:
• The F6 default function is changed from capacitance
measurement to temperature measurement;
or
Press
Press or
to choose item
Press or
to choose item
Edit F1 initial range
and F5 initial function
To Next Page
