The display at a glance
The display annunciators are described in the following
pages.

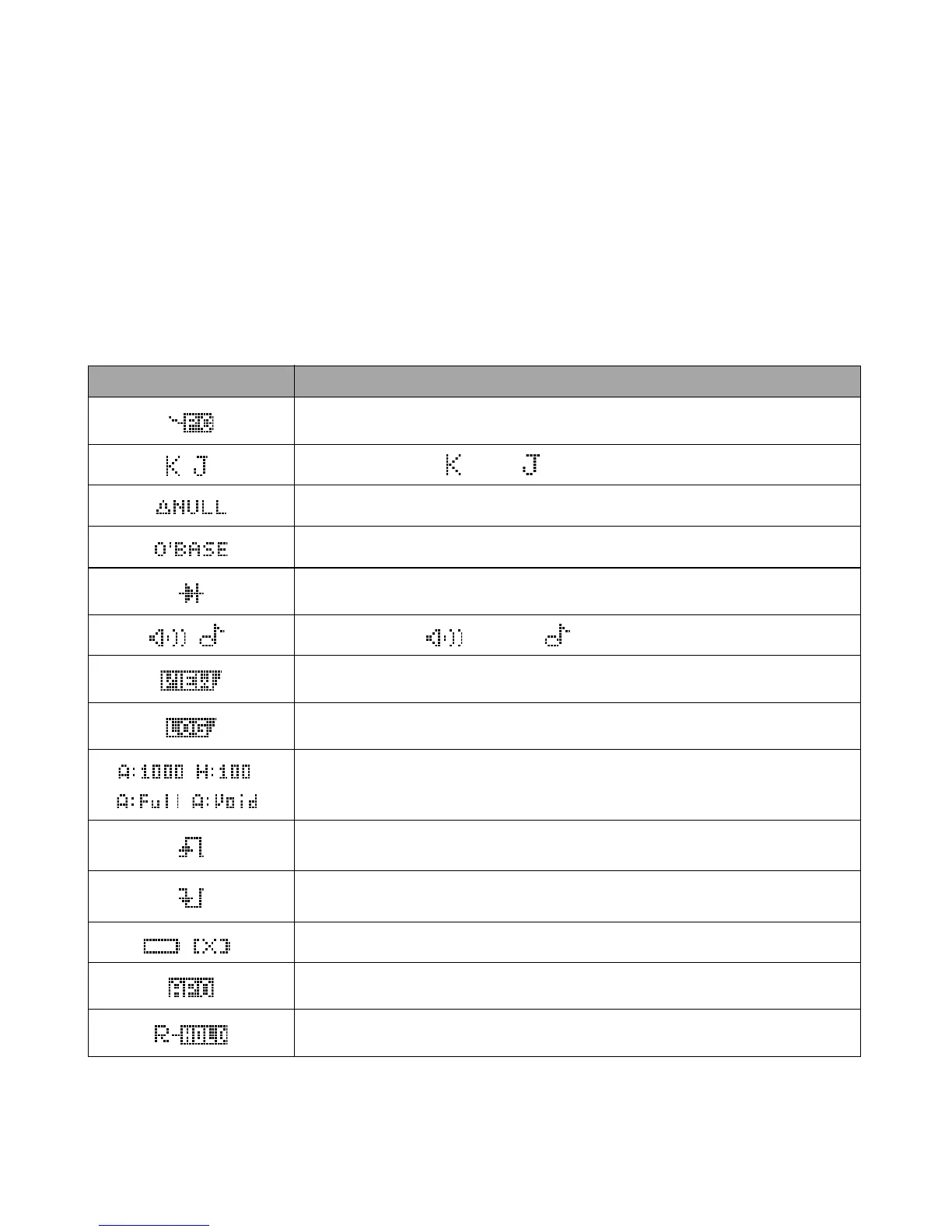

Table 1- 3 General display annunciators
OLED Annunciator Description
Remote control
,
Type of thermocouple: (K-type); (J-type)
Null math function
Relative value for Null mode
Diode
,
Audible continuity: (SINGLE) or (TONE) depending on Setup configuration
View mode for checking logged data
Data logging indication
, ,
,
Index for logging data
• Positive slope for pulse width (ms) and duty cycle (%) measurements
• Capacitor is charging (during capacitance measurement)
• Negative slope for pulse width (ms) and duty cycle (%) measurements
• Capacitor is discharging (during capacitance measurement)
,
Low battery indication (alternating between these two symbols)
Auto Power-Off enabled
Refresh (auto) Hold
