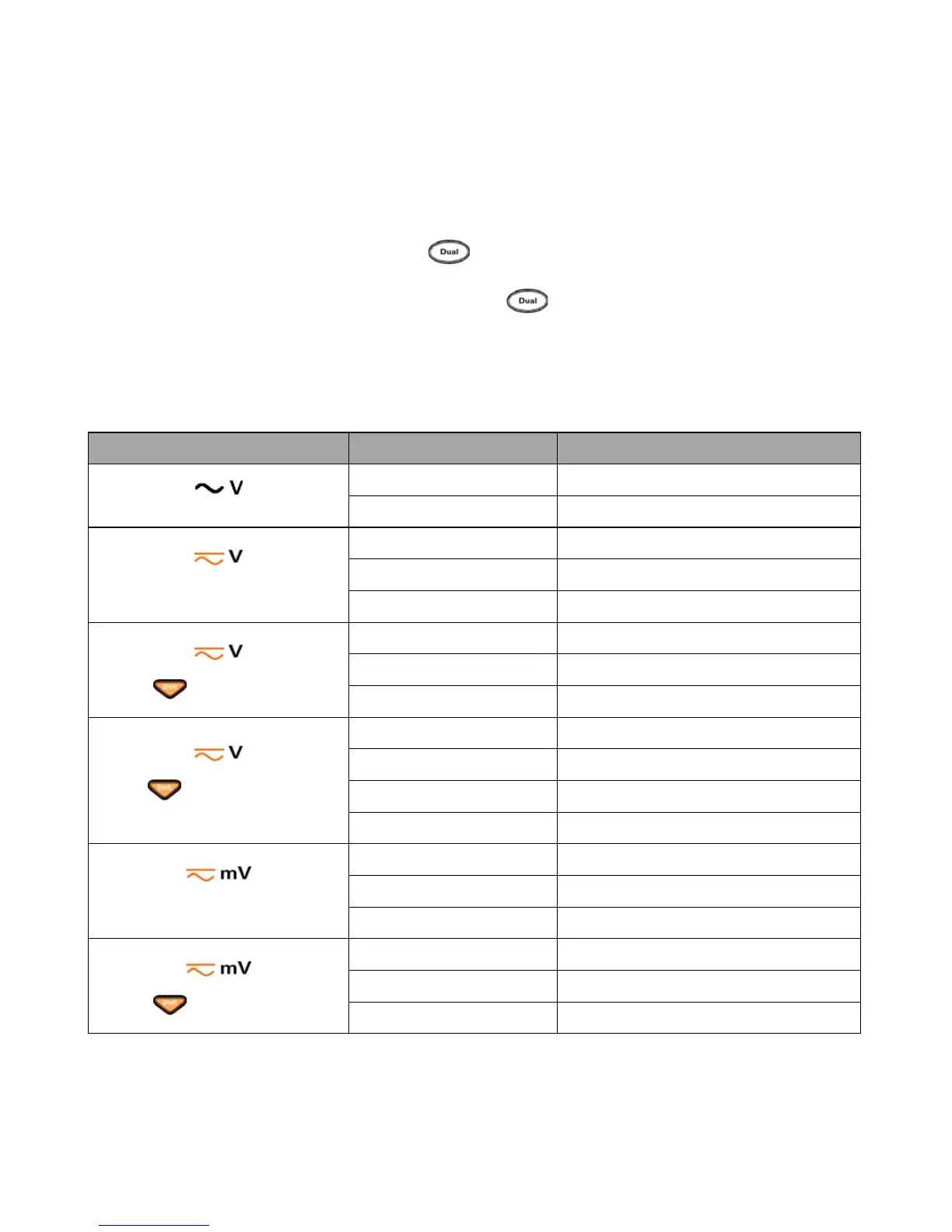

Selecting display with the Dual button
• Press to select different combinations of the dual
display.
• Press and hold for more than 1 second to return to
normal single display.
See the following table.
Table 1- 8 Selecting display with the Dual button
Rotary switch position (Function) Primary display Secondary display
(AC voltage)
AC V Hz (AC coupling)
dBm or dBV
[1]
AC V
(Default is DC voltage)
DC V Hz (DC coupling)
dBm or dBV
[1]
DC V
DC V AC V
(Press to select AC voltage)
AC V Hz (AC coupling)
dBm or dBV
[1]
AC V
AC V DC V
(Press twice to select AC+DC
voltage)
AC+DC V Hz (AC coupling)
dBm or dBV
[1]
AC+DC V
AC+DC V AC V
AC+DC V DC V
(Default is DC voltage)
DC mV Hz (DC coupling)
dBm or dBV
[1]
DC mV
DC mV AC mV
(Press to select AC voltage)
AC mV Hz (AC coupling)
dBm or dBV
[1]
AC mV
AC mV DC mV
