Selecting display with the Shift button
The table below shows the primary display selection, with
respect to measurement function (rotary switch position),
using the Shift button.

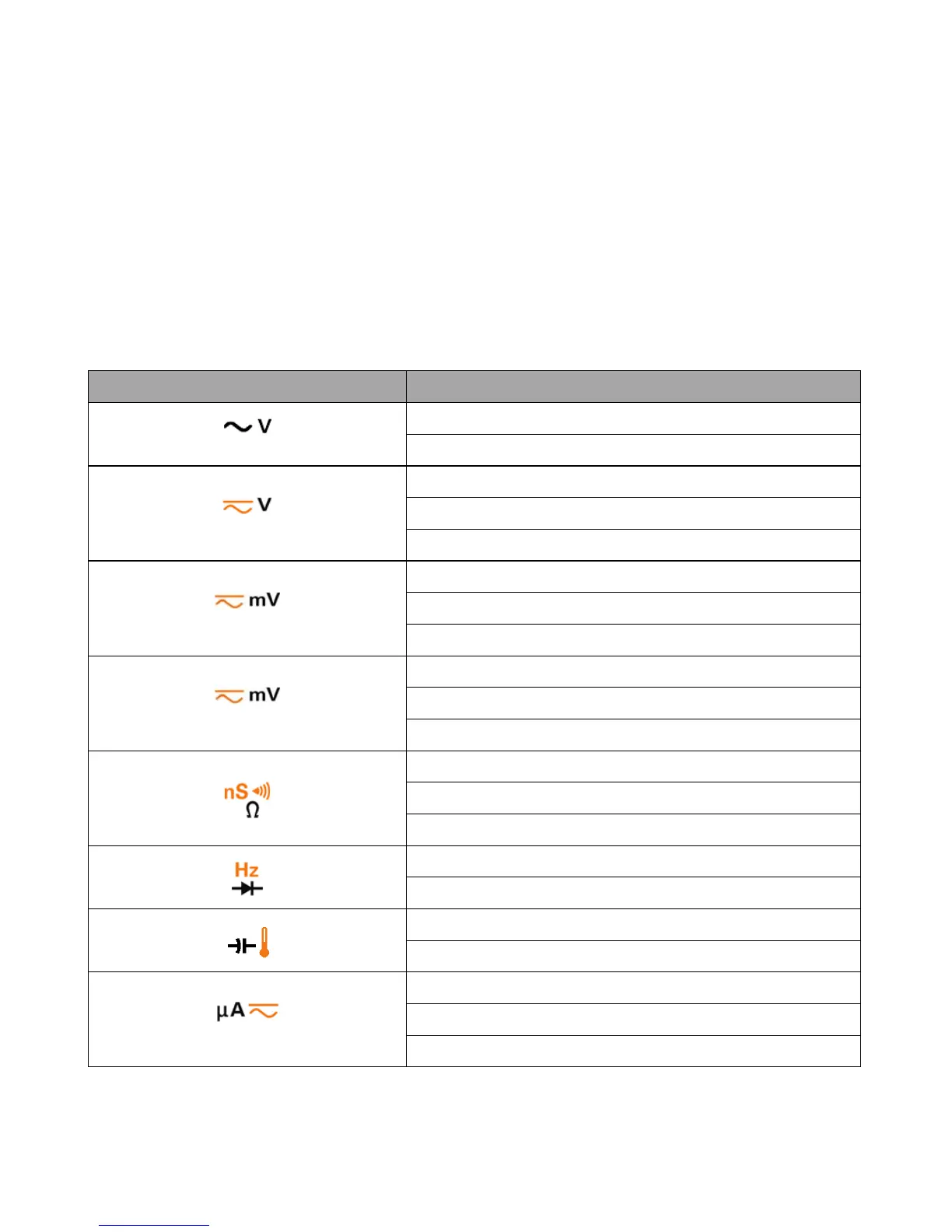

Table 1- 7 Selecting display with the Shift button
Rotary switch position (Function) Primary display
(AC voltage)
AC V
dBm or dBV (in dual display mode)
[1] [2]
(AC+DC voltage)
DC V
AC V
AC+DC V
(AC+DC voltage)
DC mV
AC mV
AC+DC mV
(AC+DC voltage)
DC mV
AC mV
AC+DC mV
Ω
Ω (Audible)
AC+DC mV
Diode
Hz
Capacitance
Te m p e r a t u r e
(AC+DC current)
DC μA
AC μA
AC+DC μA
