Agilent Technologies U1253B User's And Service Guide

Getting Started Tutorial 1
U1253B User’s and Service Guide 7

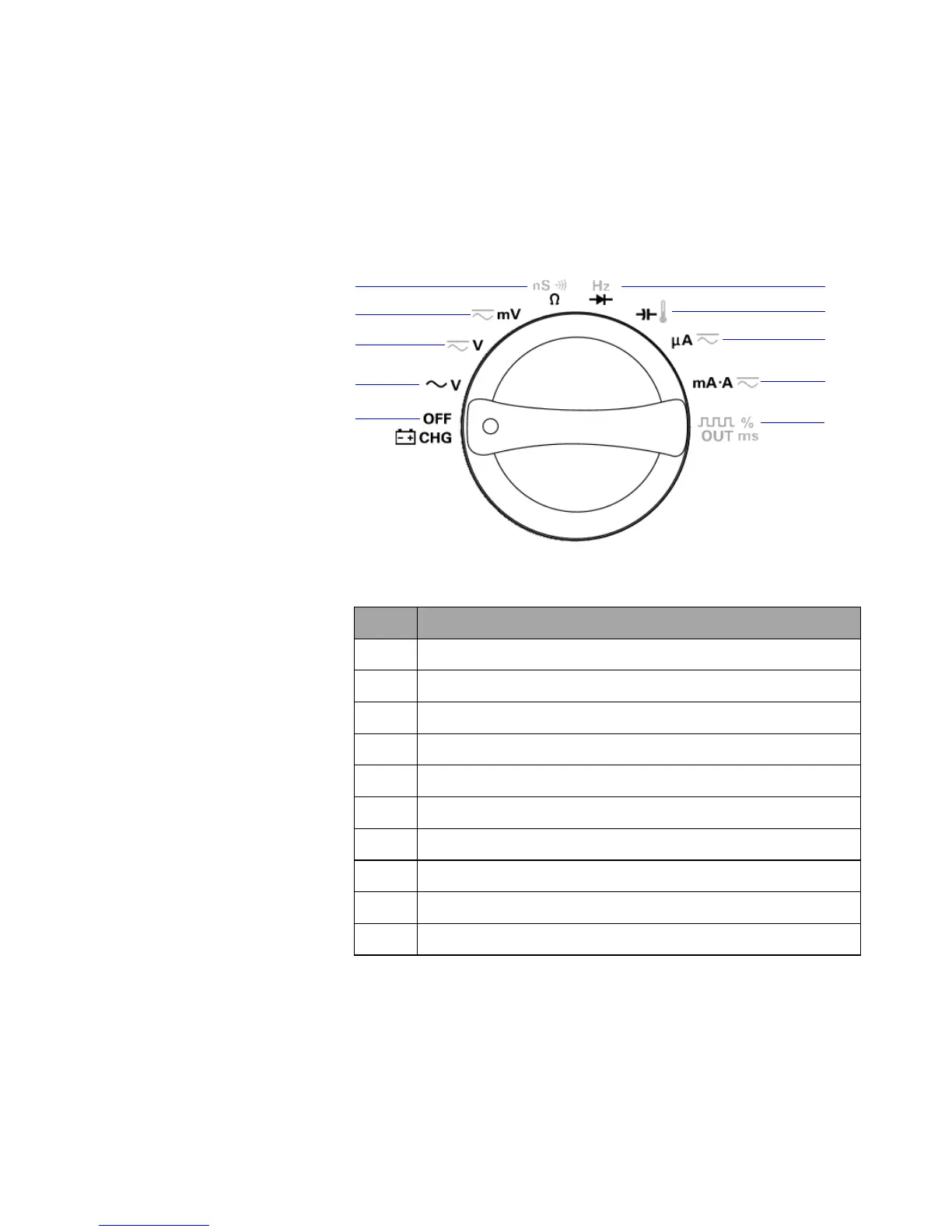

The rotary switch at a glance
Table 1-1 Rotary switch description and functions
Description/Function
1 Charge mode or OFF
2AC V
3 DC V, AC V, or AC+DC V
4 DC mV, AC mV, or AC+DC mV
5 Resistance (Ω), continuity, or conductance (nS)
6 Frequency counter or diode
7 Capacitance or temperature
8DC μA, AC μA, or AC+DC μA
9 DC mA, DC A, AC mA, AC A, AC+DC mA, or AC+DC A
10 Square wave output, duty cycle, or pulse width output
5
4
3
2
1
6
7
8
9
10

Agilent Technologies U1253B Specifications

General

Brand	Agilent Technologies
Model	U1253B
Category	Multimeter
Language	English
