96 U1253B User’s and Service Guide
4 Changing the Default Settings
Setting percentage scale readout
This setting converts the DC current measurement display to
percentage scale readout: 0% to 100% based on a range of
4 mA to 20 mA or 0 mA to 20 mA. For example, a 25%
readout represents a DC current of 8 mA for the 4 mA to 20
mA range, or a DC current of 5 mA for the 0 mA to 20 mA
range. To disable this function, set this to “OFF”.

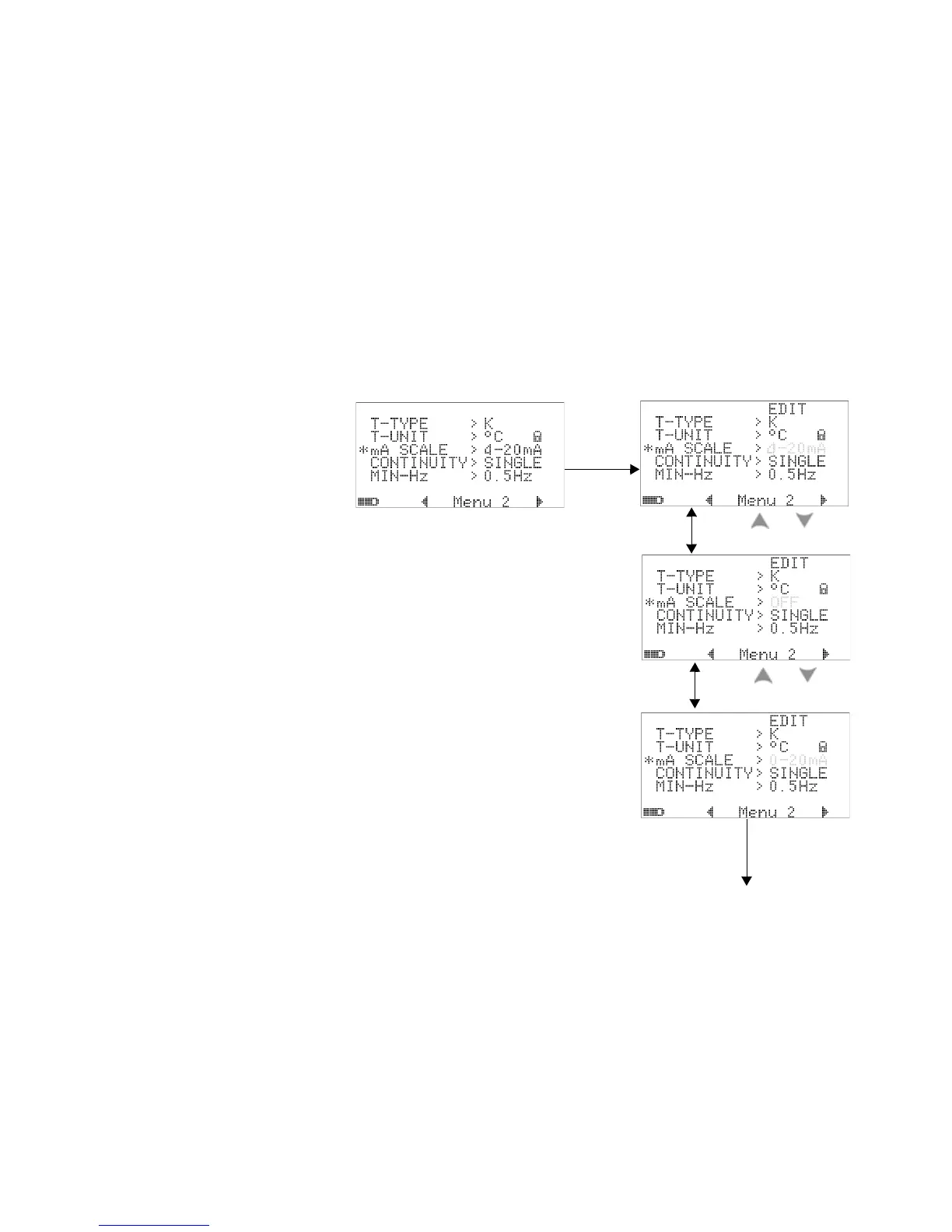

Figure 4-9 Setting up percentage scale readout
to configure
Press or
Press Hz
to edit
Press Hz to save
and exit
or press Esc
to exit without saving
to configure
Press or
To Next Page
