Performance Tests and
Calibration
6
U1253B User’s and
Service Guide
165

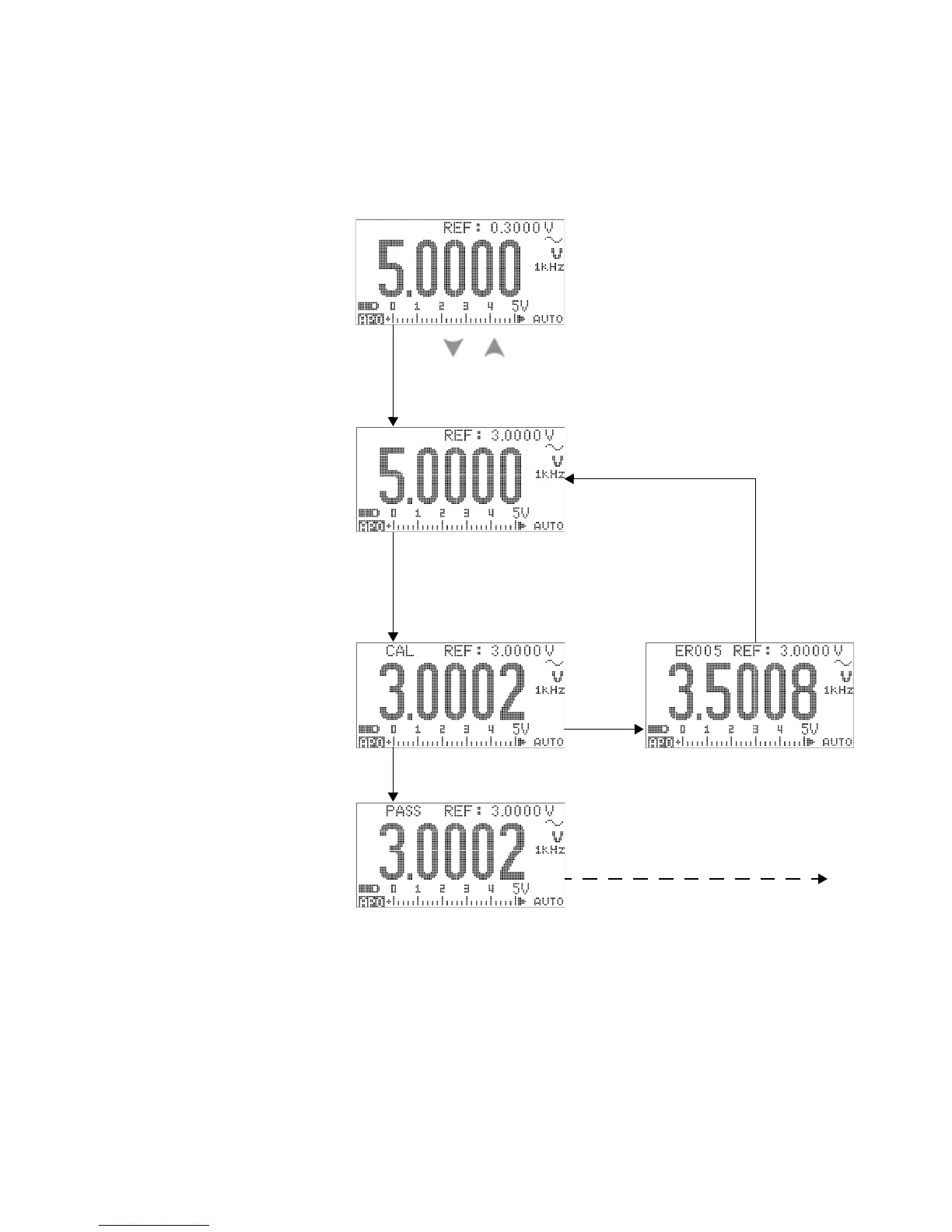

Figure 6-7
T
ypical calibration process flow
Press
to select calibratio
n item
or
if not performing comple
te
calibration
Set up calibrator according
to indicate
d referen
ce value
Press Save when ready
to start calibration
Reading
out of
acceptable
range
Reading is with
in
acceptable range
Error message appears
for 3 seconds
The word “P
ASS” appears
for 3 seconds, then proceed
s
to the next calibration
item
