Allen-Bradley 1305 Series User Manual

Installation/Wiring
2-24

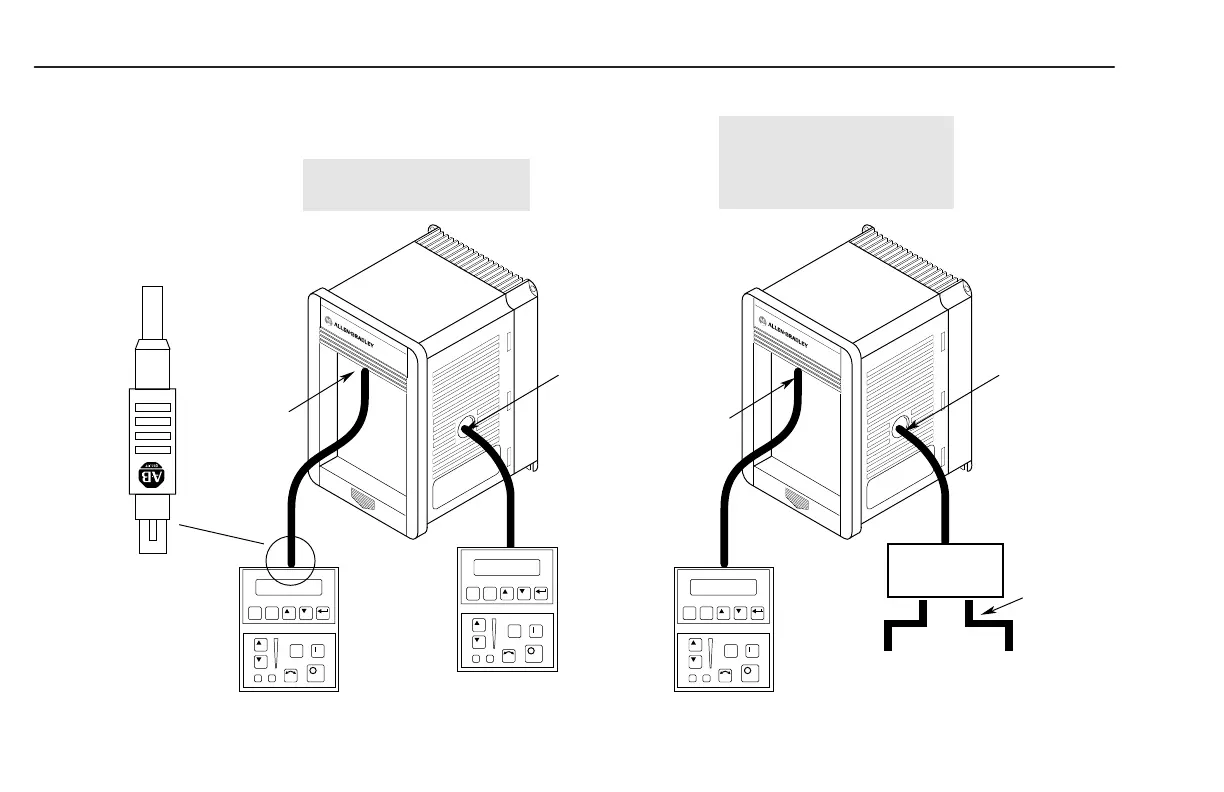

Figure 2.11 Adapter Mounting Distance and Cable Connections
Maximum Distance
A + B ≤ 10 Meters (33 feet)
A + B + C ≤ 10 Meters (33 feet)
A + B + D ≤ 10 Meters (33 feet)
C + D ≤ 10 Meters (33 feet)
Maximum Distance
JOG
ESC SEL
JOG
ESC SEL
JOG
ESC SEL
Port 1
A
A
B
B
C
D
Male-Male Cable
HIM or Other
Remote Device
Male-Male Cable
Male-Male
Cables
Male-Female
Cable
Male-Female Cable
Adapter 1
Adapter 1
Adapter 2
Port 1
Port 2
Port 2
Adapter 2
Communication
Module
Adapter 3
Communication
Module
Port Expansion
Option
Pull back connector to
disconnect cable from the
adapter device or Port 2
connection.
Refer to Appendix C for
Cable recommendations.
