Chapter 6 Configure the Module for a SmartGuard Controller

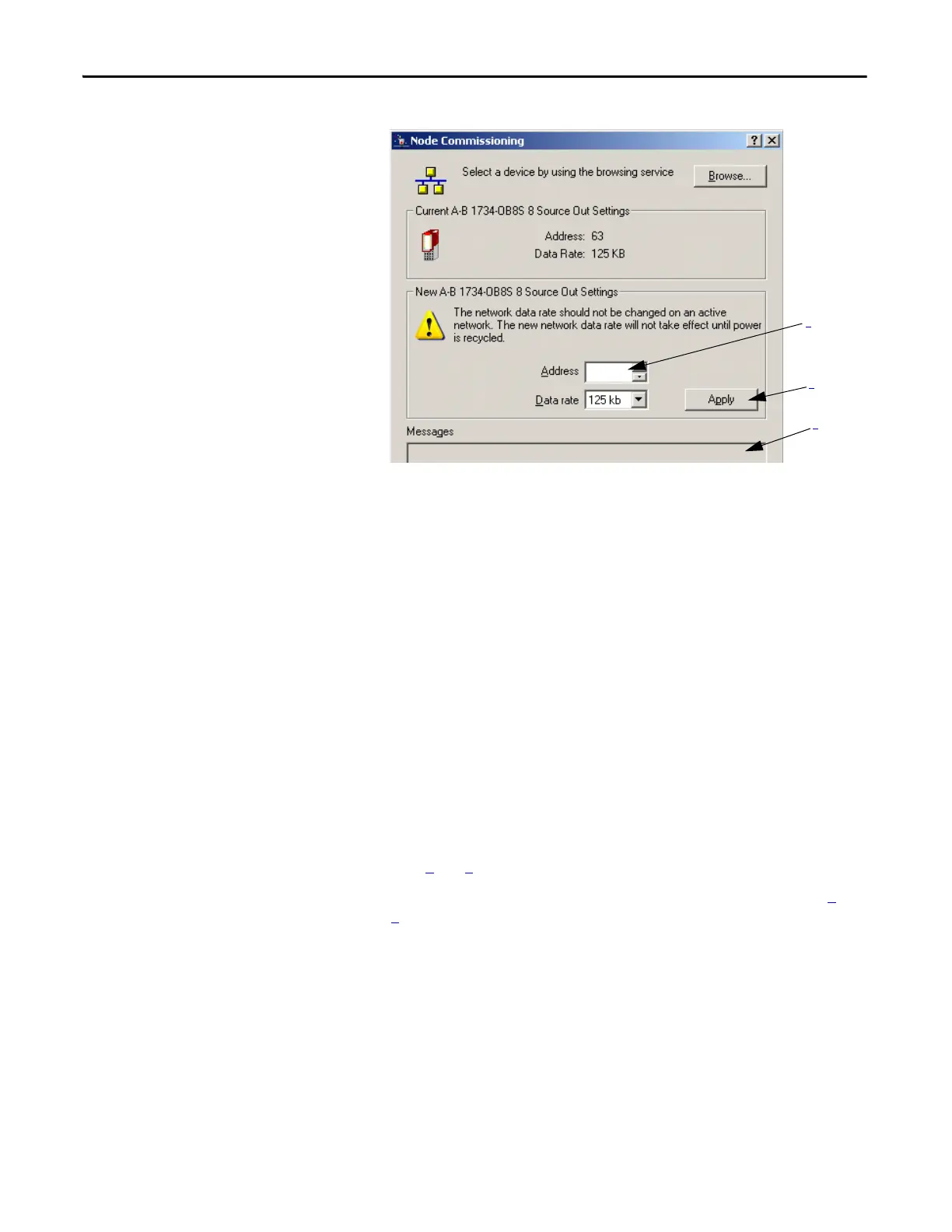

6. Click OK
7. Enter the new address for the device.
8. Click Apply.
9. Look for confirmation in the messages section.
Auto-addressing with a
1734-PDN Adapter
With sequential auto-addressing, the leftmost node address is configured and a
parameter is set in that module to automatically assign addresses to the nodes that
reside to the right of the module. The leftmost node can be a
POINT Guard I/O module or a standard POINT I/O module.
Follow these steps to use the auto-address feature.
1. Reset any modules that you are not sure are out-of-box.
2. Attach the first module to the 1734-PDN adapter.
3. Use the node commissioning tool to set the node address of this module.
4. Attach the additional nodes to the right of the module that is used in
steps 2
and 3.
5. Perform the auto-address feature on the module that is used in steps 2
and
3
.
