52 Rockwell Automation Publication 1734-UM013N-EN-P - September 2017
Chapter 3 Guidelines for Placing Power Supplies and Modules in a System
Placing Series B Digital
Modules
Always install modules in accordance with their specified operating temperature
ratings, as listed in Appendix C
, and provide a minimum of 5.08 cm (2 in.)
clearance above the modules.
When used in a system that contains only Series B Guard I/O modules, series B
Guard I/O modules are used without 1734-CTM spacer modules in
environments with ambient operation up to 55 °C (131 °F).
See Technical Specifications f
or Series B Modules on page 189 for Series B
POINT Guard I/O module derating requirements for every module with
ambient operation between 40
°C (104 °F) and 55 °C (131 °F).

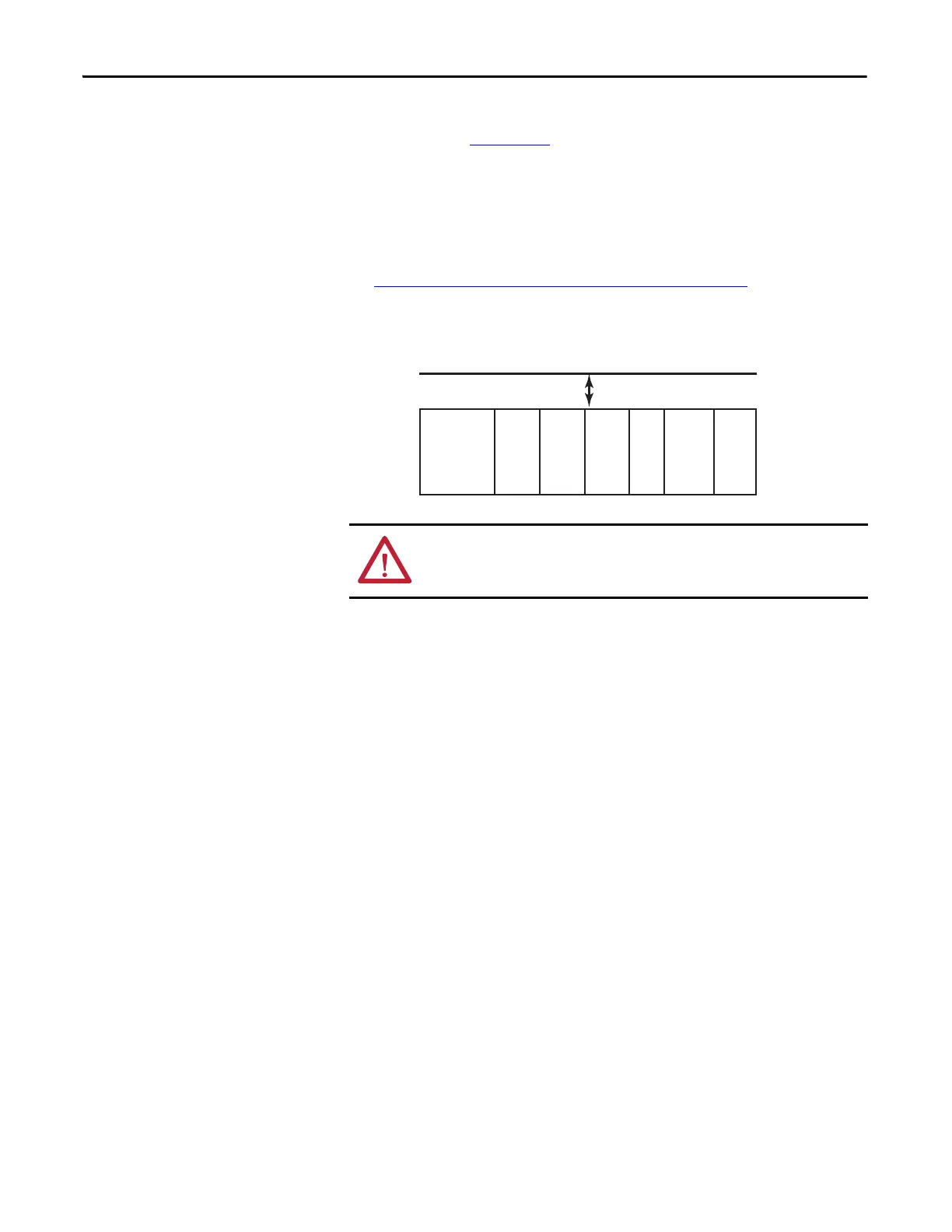

Figure 24 - Placing Series B Digital Modules for up to 55 °C (131 °F) Operation
ATTENTION: Vertical orientation requires careful attention to design details
and panel layout so that all modules in the stack operate within their rated
operating temperature range.
1734-AENT
1734-OB8S/B
1734-IB8S/B
1734-OB8S/B
1734-IB8S/B
1734-OB8S/B
1734-IB8S/B
5.08 cm (2 in.)
