Rockwell Automation Publication 1734-UM013N-EN-P - September 2017 119
Configure the Module for a SmartGuard Controller Chapter 6
5. Click OK.

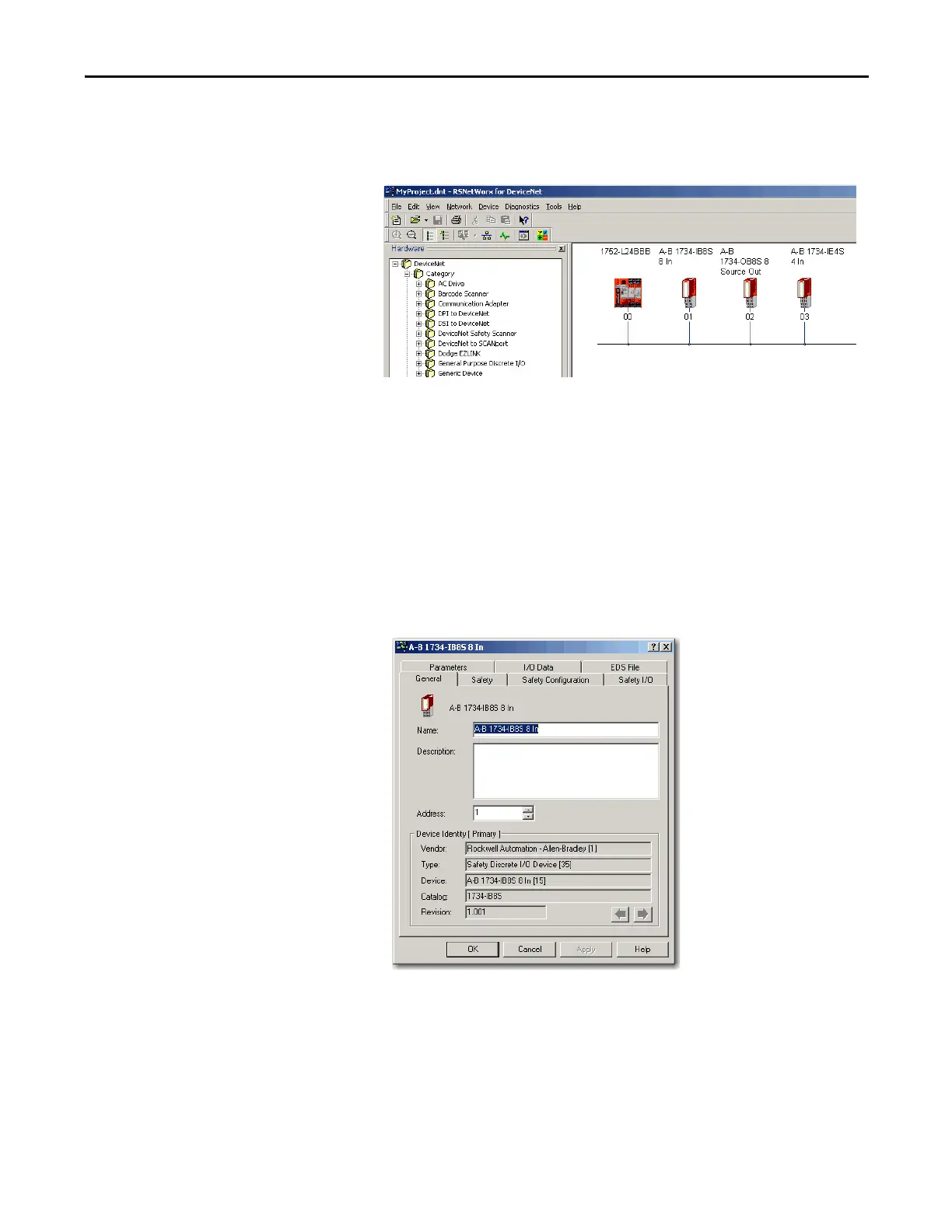

RSNetWorx for DeviceNet software finds the SmartGuard and POINT
Guard I/O modules on the DeviceNet network.
6. Click the online icon again to go offline.
Configure the POINT Guard
I/O Modules
From the Safety Configuration tab, you can configure the safety inputs and
outputs of the module.
Configure Digital Safety Inputs and Test Outputs
1. To open the Properties dialog box, double-click the POINT Guard I/O
digital input module .
