100 Rockwell Automation Publication 5000-UM005B-EN-P - November 2015
Chapter 6 Configure the Module
Edit 5069-OF4 Module
Configuration Categories
In addition to the General, Connection, and Module Info categories, the
following categories are available when you configure a 5069-OF4 module:
•
Channels Category
•
Calibration Category
Channels Category
The Channels category shows an overview of the configuration values for all
module channels. The values for each parameter indicate how that particular
channel is configured on that channel’s category.

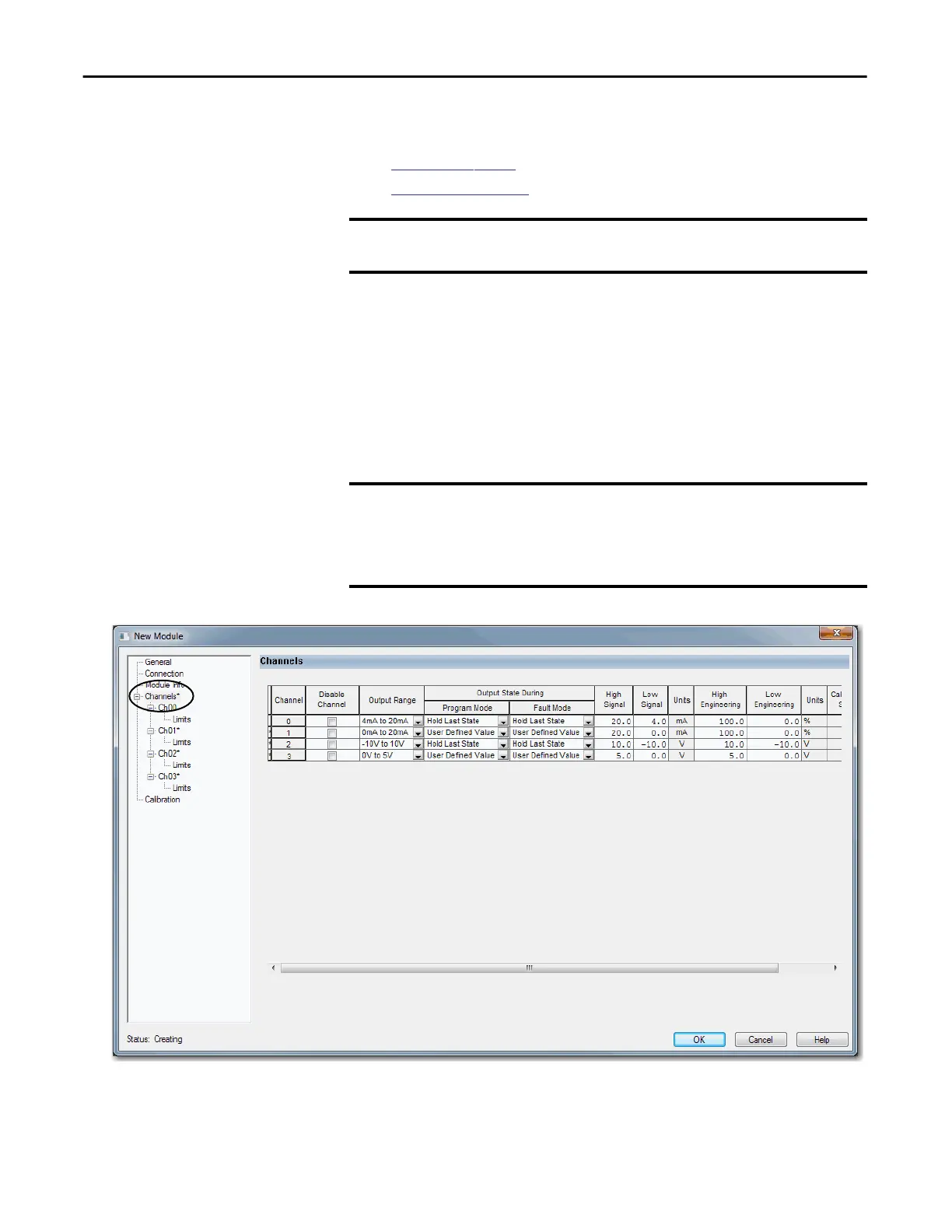

The following shows the Channels category for the 5069-OF4 module.
IMPORTANT
If you use the Listen Only connection type, the Channels Category and
Calibration Category do not appear.
IMPORTANT
You can edit the fields on the Channels category dialog box.
We recommend that you change channel configuration on the specific channel
categories as described in the rest of this section.
Use this view to monitor configuration for all channels on the module.
