Appendix A Troubleshoot Your Module
Status and Fault Information in Module Properties Categories
The Module Properties section in the Logix Designer applications includes a
series of categories. The number and types of categories varies by module type.
Each category includes options to configure the module or monitor the module’s
current status. The following are ways to monitor a module’s state for faults:
•
Module Status on General Category
•
Module Fault Descriptions on Connection Category
Module Status on General Category
As shown in Figure 10, a module’s status is indicated on the General category of
the Modules Properties.

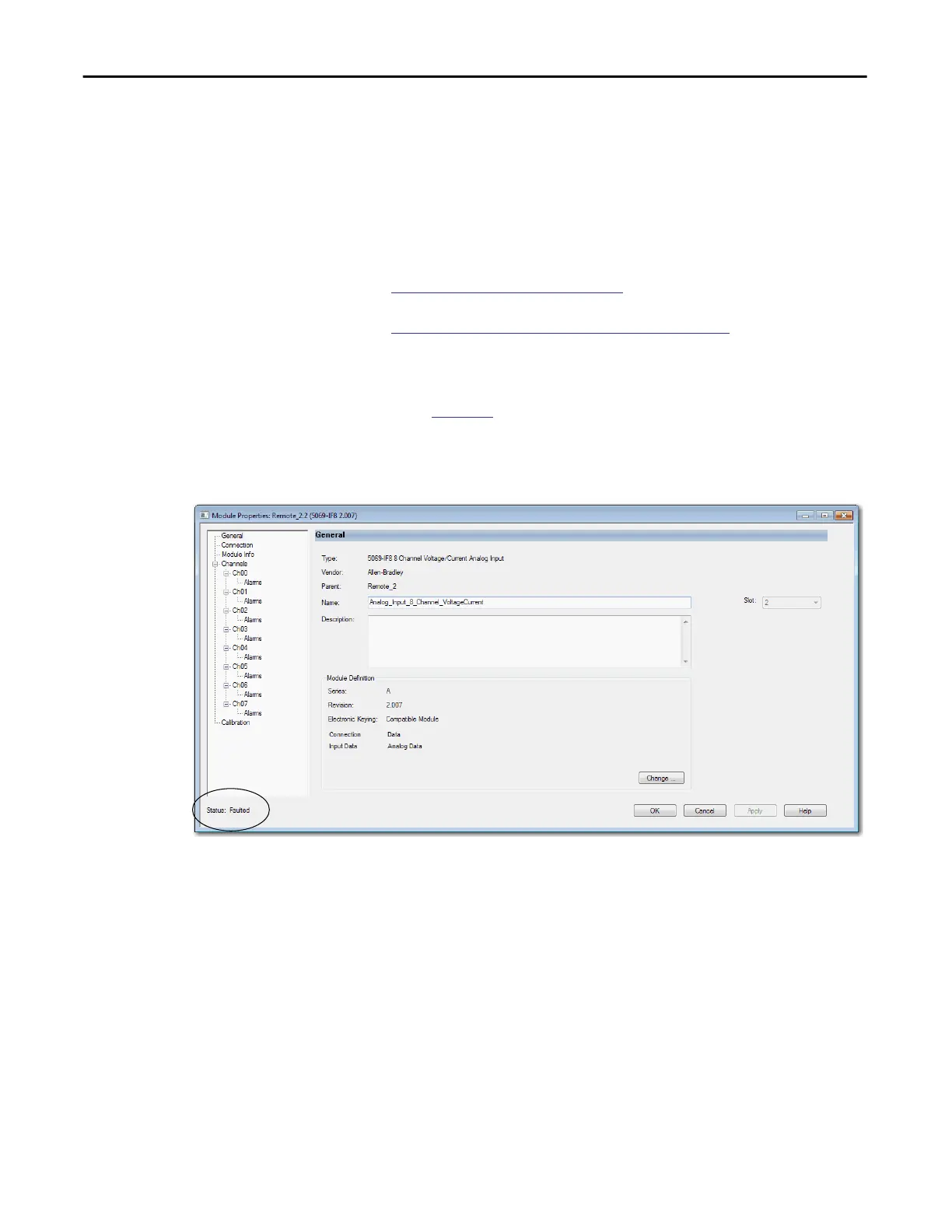

Figure 10 - Fault Message in Status Line
To Next Page
