Troubleshoot Your Module Appendix A
Module Fault Descriptions on Connection Category

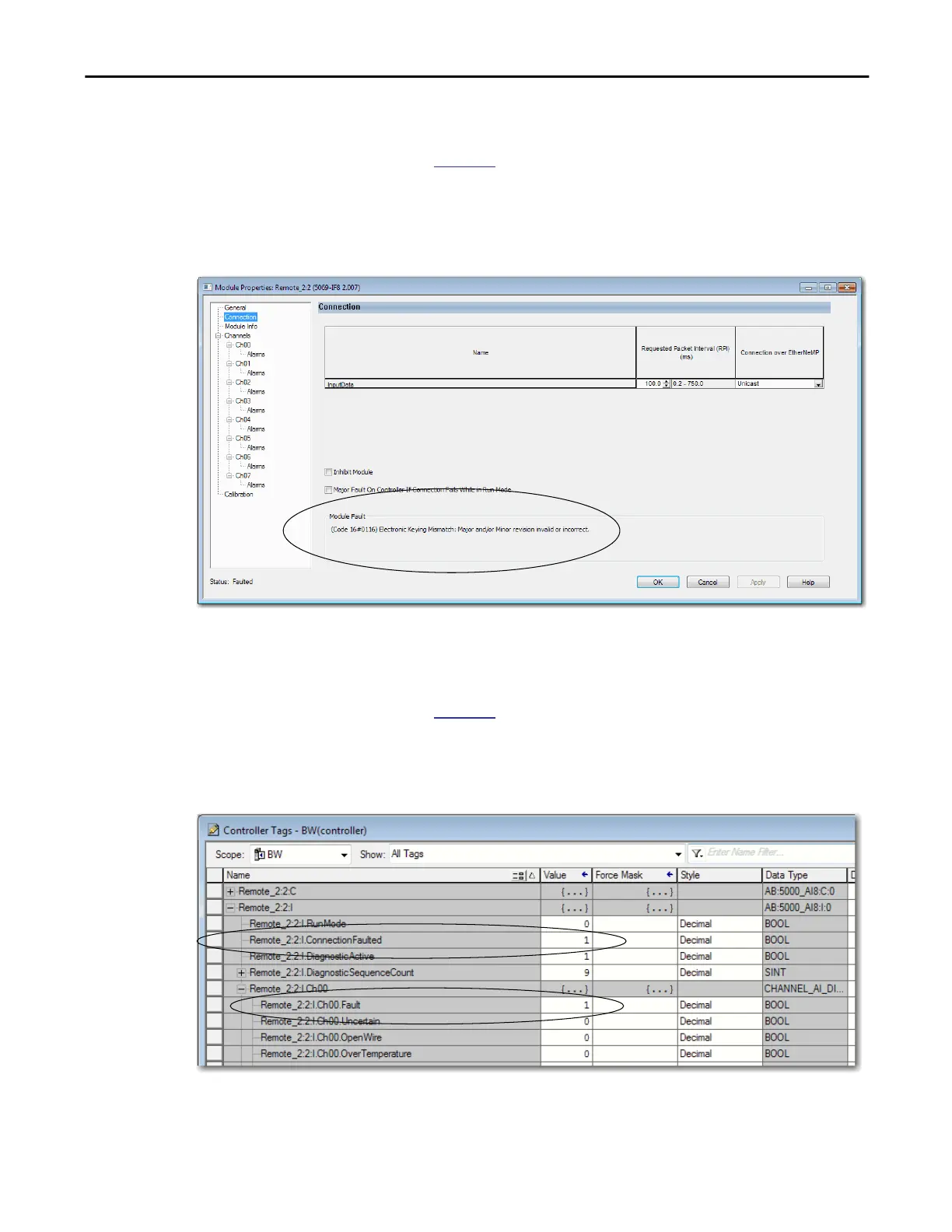

As shown in Figure 11, a module fault description that includes an error code
associated with the specific fault type and used in troubleshooting is listed on the
Connection category.
Figure 11 - Fault Description with Error Code
Logix Designer Application Tag Editor
As shown in Figure 12, fault conditions are indicated in the controller tags for
the module.
Figure 12 - Fault Indication in Controller Tags
