Rockwell Automation Publication 5000-UM005B-EN-P - November 2015 129
Troubleshoot Your Module Appendix A
Use the Logix Designer
Application for
Troubleshooting
In addition to the status indicator display on the module, the Logix Designer
application indicates the presence of fault conditions.
Fault conditions are reported in the following ways:
•
Warning Signal in the I/O Configuration Tree
•
Status and Fault Information in Module Properties Categories
•
Logix Designer Application Tag Editor
Warning Signal in the I/O Configuration Tree
As shown in Figure 9, a warning icon appears in the I/O Configuration tree when
a fault occurs.

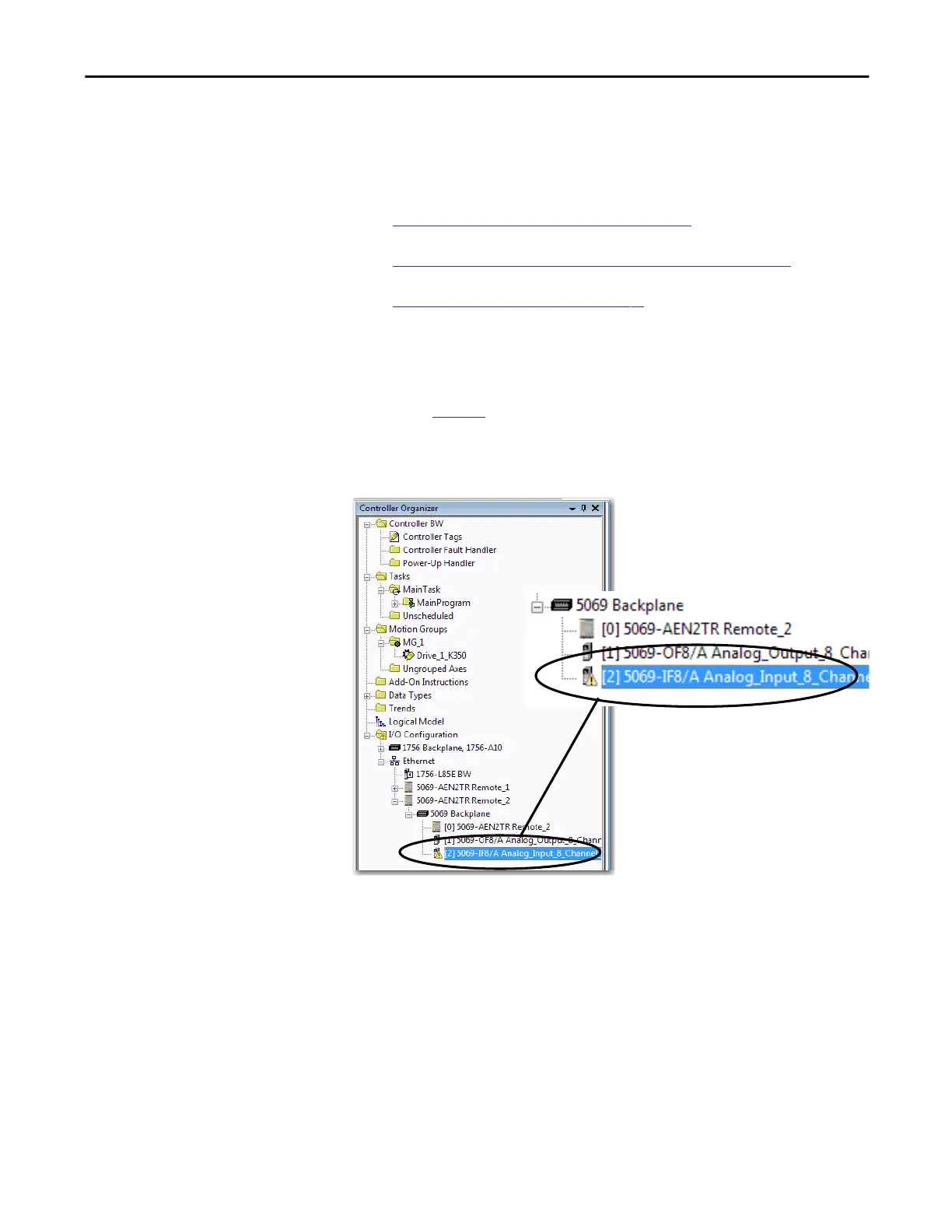

Figure 9 - Warning Signal in Controller
