Rockwell Automation Publication 5000-UM005B-EN-P - November 2015 11
Analog I/O Module Operation in a Logix5000 Control System Chapter 1
Figure 1 shows the parts of an example 5069 Compact I/O analog I/O module.

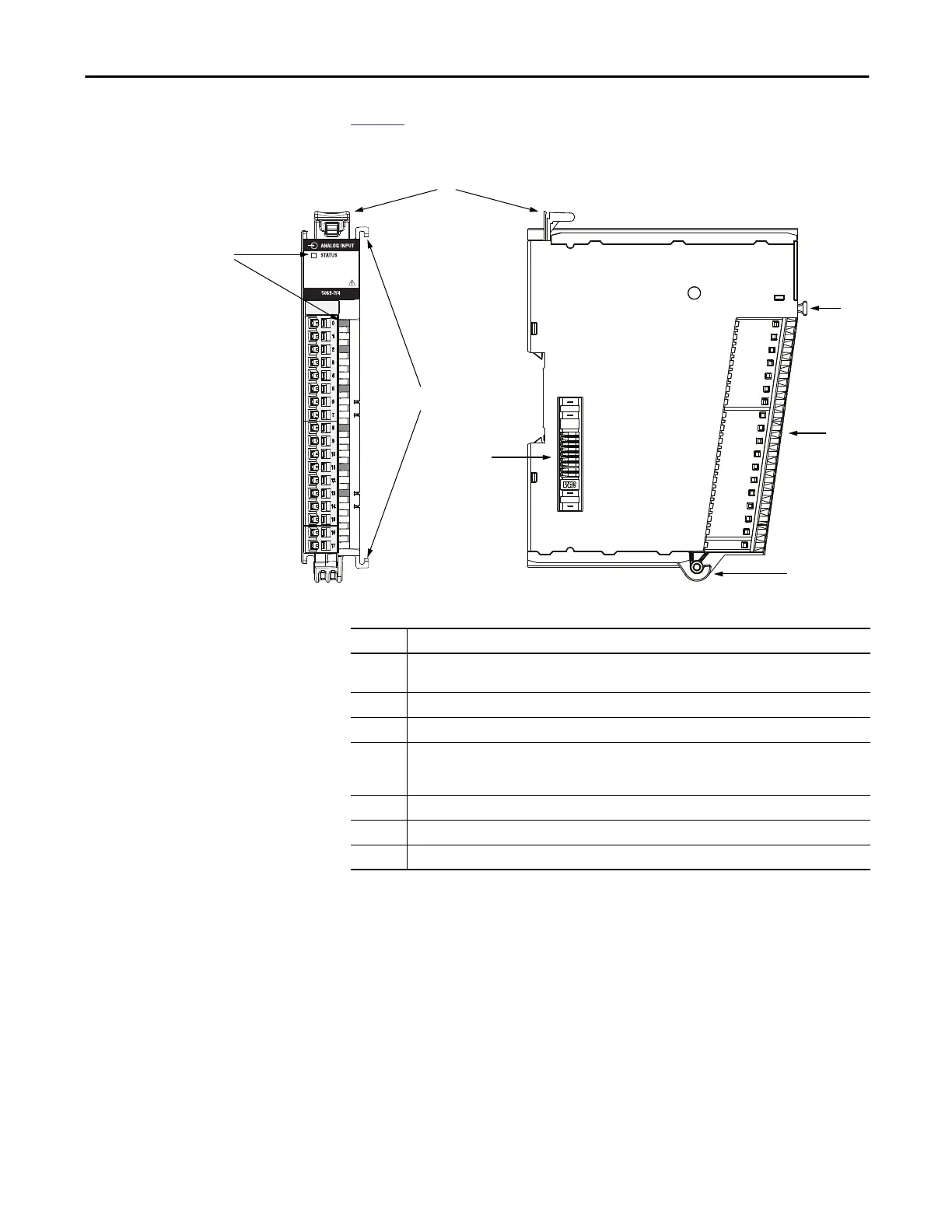

Figure 1 - Example 5069 Compact I/O Analog I/O Module
4
3
5
2
1
6
7
Item Description
1 Status indicators - Displays the status of communication, module health, and input/output devices.
Indicators help with troubleshooting anomalies.
2 Interlocking side pieces - Securely installs 5069 Compact I/O modules in the system.
3 DIN rail latch - Secures the module on the DIN rail.
4 MOD power bus and SA power bus connectors - Pass system-side and field-side power across the
internal circuitry of the I/O modules in a 5069 Compact I/O system. The connectors are isolated from each
other.
5 RTB handle - Anchors the RTB on the module.
6 RTB - Provides a wiring interface for the module.
7 RTB lower tab - Hooks RTB onto the module to begin installation.
