Chapter 2 Replacement Considerations with ControlLogix 5580 and GuardLogix 5580 Systems

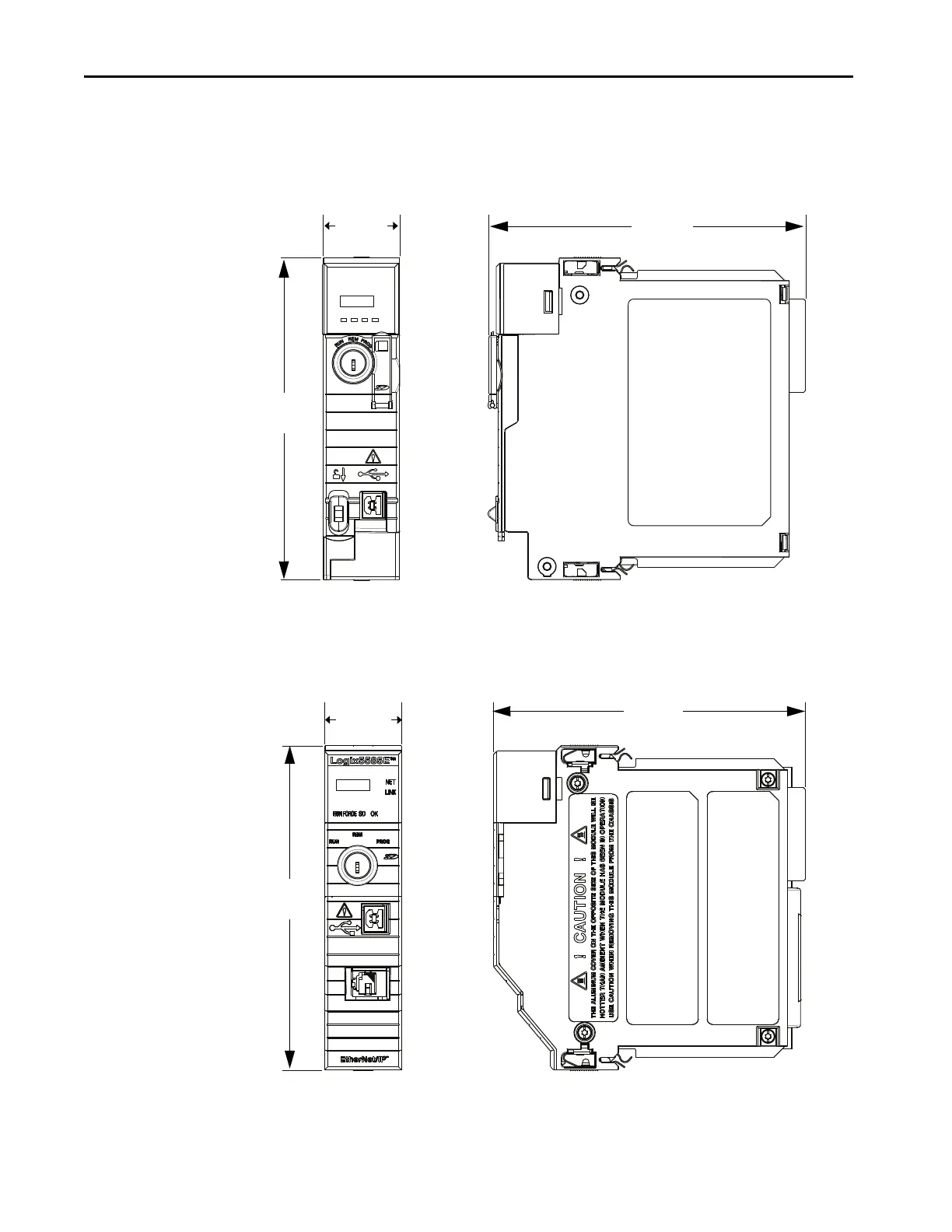

Controller Dimensions
This section shows dimensional differences.
ControlLogix 5570 Dimensions
ControlLogix 5580 Dimensions
RUN FORCE SD OK
Logix5572™
145.20 mm
(5.72 in.)
142.94 mm
(5.63 in.)
34.55 mm
(1.36 in.)
145.20 mm
(5.72 in.)
136.60 mm
(5.50 in.)
34.55 mm
(1.36 in.)
