Allen-Bradley CompactLogix 5380 User Manual

72 Rockwell Automation Publication 1756-RM100F-EN-P - October 2018
Chapter 3 Replacement Considerations with CompactLogix and Compact GuardLogix Systems
EtherNet/IP Modes
With the Logix Designer application, version 29 or later, 5380 controllers
support the following EtherNet/IP modes:
• Dual-IP Mode
• Linear/DLR Mode
For more information on how to use EtherNet/IP modes, see the
CompactLogix 5380 and Compact GuardLogix 5380 Controllers User
Manual, publication 5069-UM001
.
Dual-IP Mode
With the Logix Designer application, version 29 or later, you can use Dual-IP
mode.
Dual-IP mode lets you configure the controller embedded Ethernet ports to
connect to separate networks, that is, an enterprise-level Ethernet network and
a device-level network.

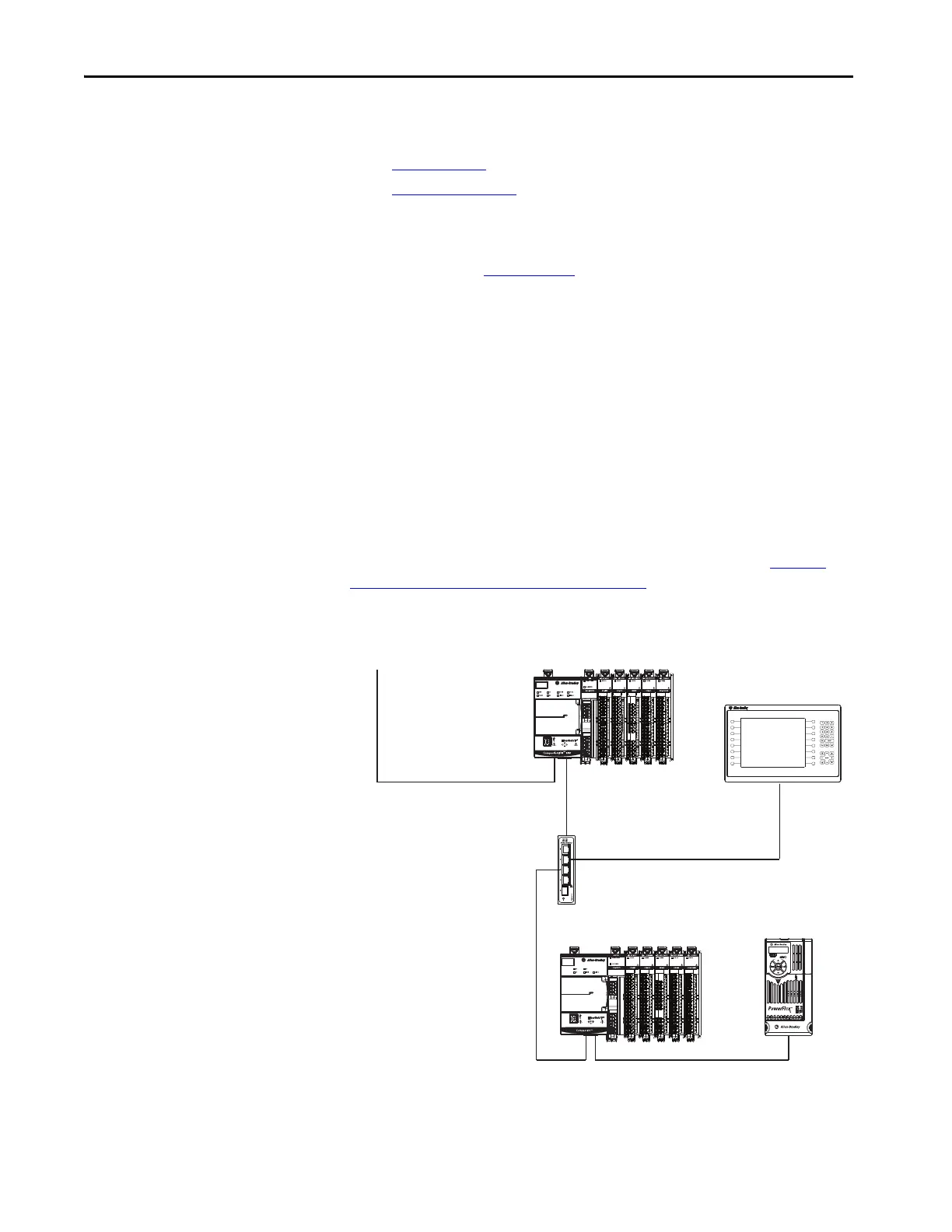

The following graphic shows a CompactLogix 5380 controller that uses
Dual-IP mode in a star topology. For more examples of how to use the
controllers that use Dual-IP mode in EtherNet/IP topologies, see Dual-IP
Mode in EtherNet/IP Topologies on page 173.
527
F1
F2
F3
F4
F5
F6
F7
F8
F9
F10
F11
F12
F13
F14
F15
F16
CompactLogix 5380 Controller
Compact 5000 I/O Modules
5069-AEN2TR Adapter
Compact 5000 I/O Modules
PanelView™ Plus 7 Terminal
Stratix® 2000 Switch
PowerFlex® 527 Drive
Enterprise-level
Network
Device-level Network
In this example, all network
communication occurs at
the 100 Mbps.
