Allen-Bradley CompactLogix 5380 User Manual

Rockwell Automation Publication 1756-RM100F-EN-P - October 2018 73
Replacement Considerations with CompactLogix and Compact GuardLogix Systems Chapter 3
Linear/DLR Mode
When the controllers operate in Linear/DLR mode, they can only connect to
one network and have only one network configuration. The controllers can
connect to any EtherNet/IP topology.
527
F1
F2
F3
F4
F5
F6
F7
F8
F9
F10
F11
F12
F13
F14
F15
F16
CompactLogix 5380 Controller
Compact 5000 I/O Modules
5069-AEN2TR Adapter
Compact 5000 I/O Modules
PanelView Plus 7 Terminal
PowerFlex 527 Drive

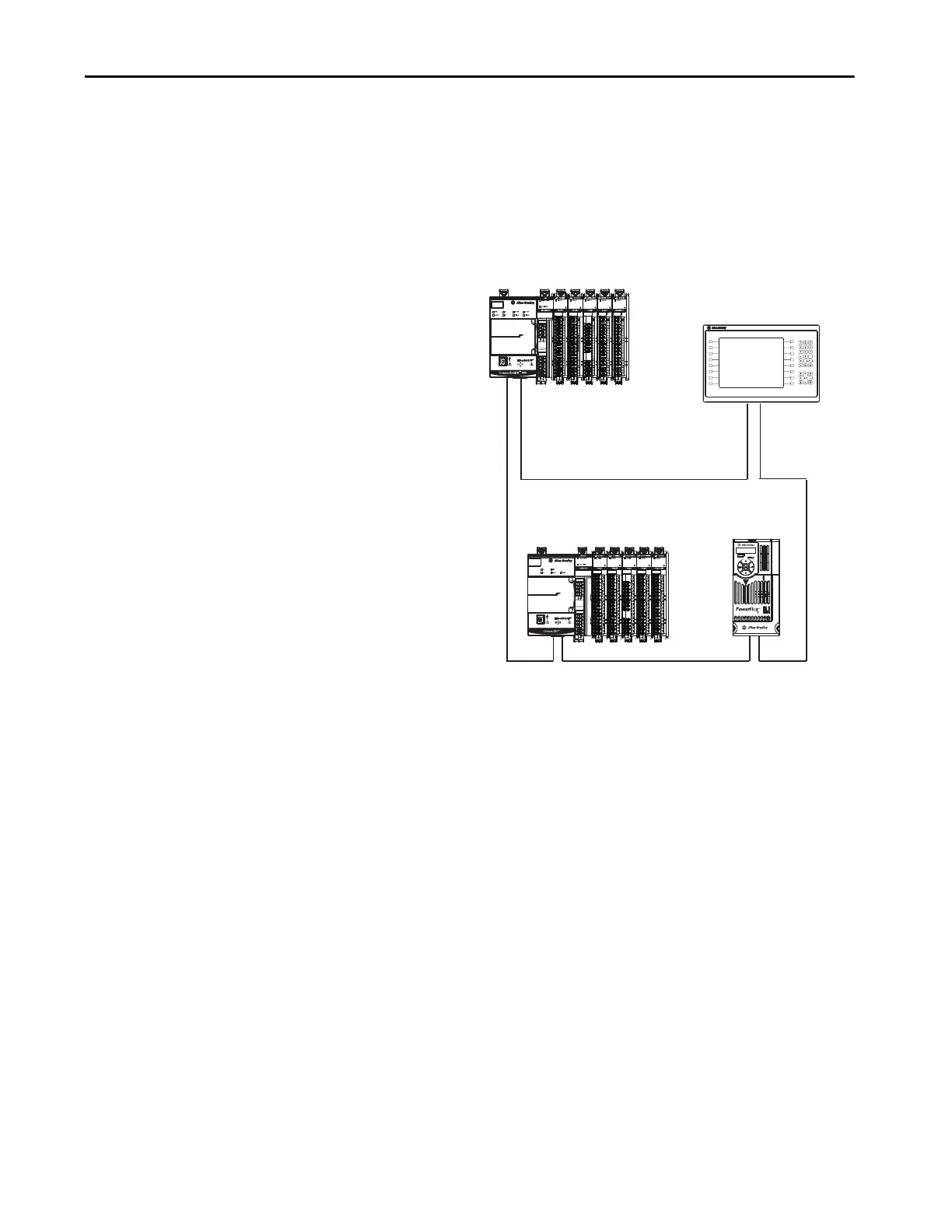

In this example, all network
communication occurs at
the 100 Mbps.
