24 Rockwell Automation Publication 1756-RM100F-EN-P - October 2018
Chapter 2 Replacement Considerations with ControlLogix 5580 and GuardLogix 5580 Systems
Connectors and Status
Indicators

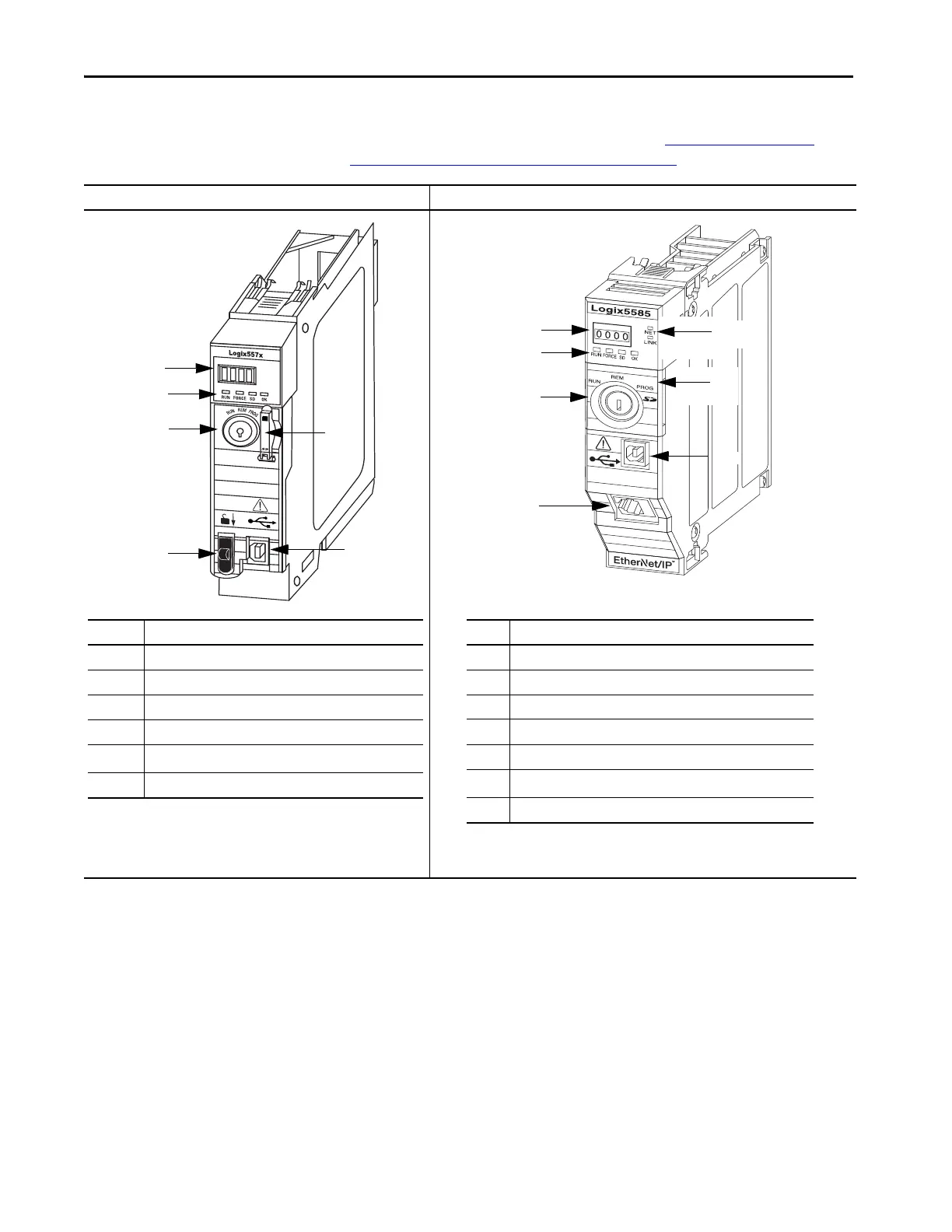

This section shows the front plate differences. For more information on the
status indicators and reset button, see Chapter 7, Diagnostics and Status
Indicators with ControlLogix Systems on page 141.
ControlLogix 5570 ControlLogix 5580
Item Description
14-character Display
2 Status Indicators
3REM RUN PROG Key
4 Energy Storage Module Release
5
SD Card slot behind the door
(1)
(1) The door opens from top to bottom.
6USB Port
1
2
3
5
6
4
32511-M
1
7
4
3
5
6
2
Item Description
14-character Display
2 Status Indicators
3REM RUN PROG Key
4 Ethernet Port
5 Ethernet Status Indicators
6
SD Card slot and Reset button are behind the door.
(1)
(1) First remove the key, then open the door from right to left.
7USB Port
